Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

WARNING: Before removing the air bag module, refer to AIR BAG SAFETY PRECAUTIONS and DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING . Center the front wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

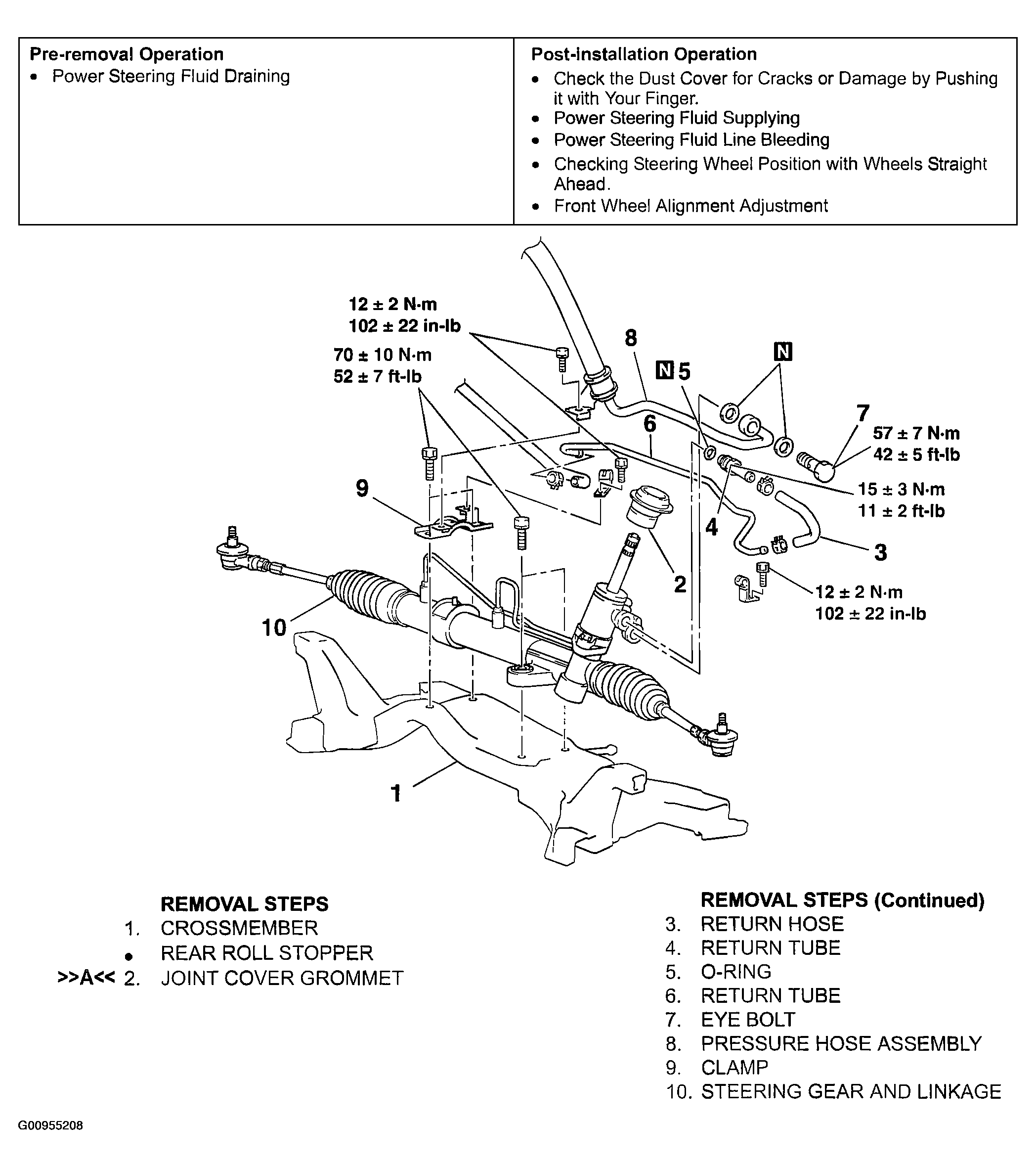

Fig 1: Removing And Installing Power Steering Gear Box And Linkage

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
