< 2.4L Engine>

WARNING: This page is about a different variant/trim than selected.

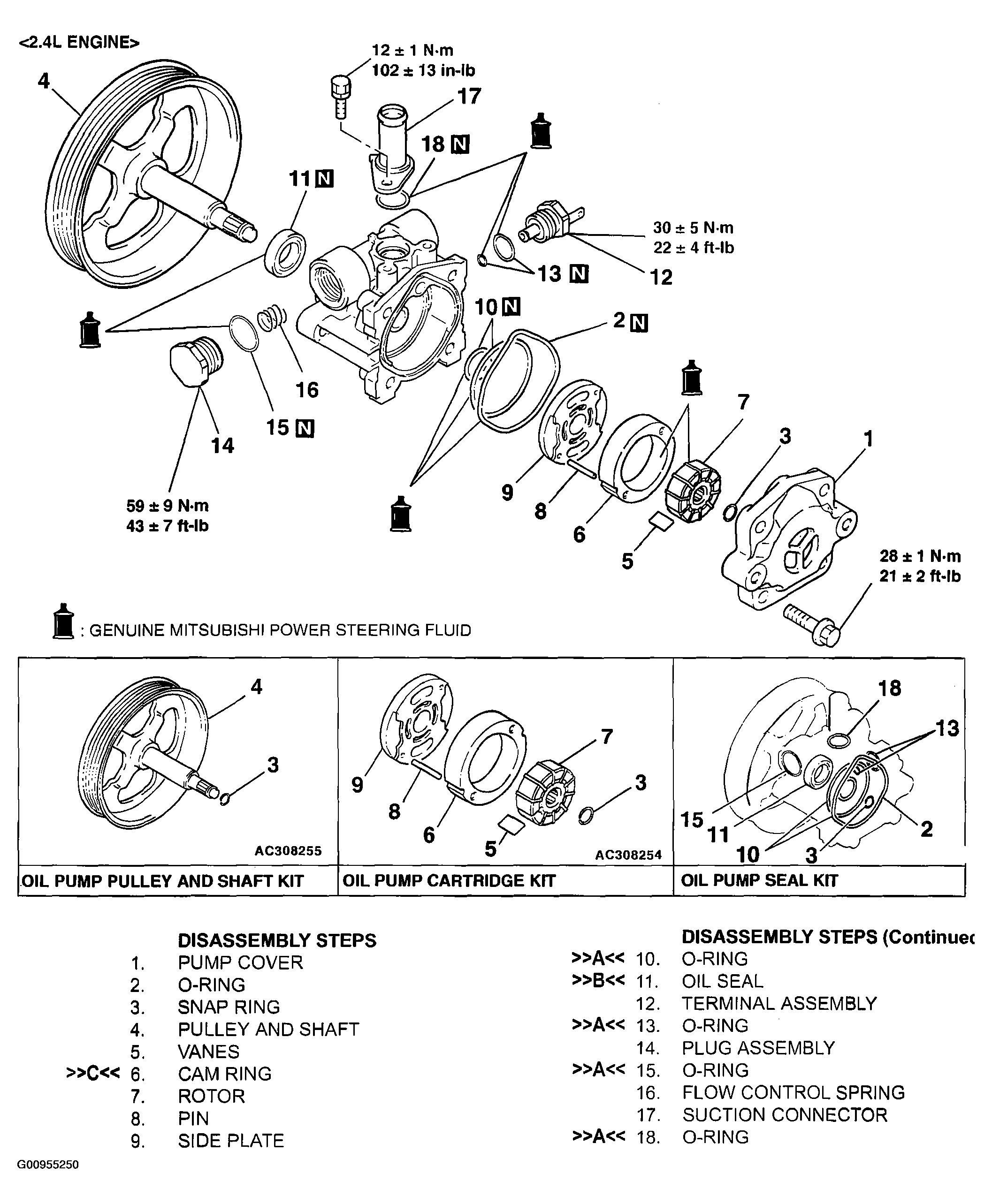

Fig 1: Disassembling And Assembling Power Steering Oil Pump Assembly (2.4L)
G00955250Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
