<< B >> Oil Seal Installation

WARNING: This page is about a different variant/trim than selected.

Use special tool MB991203 and MB990938 to install the oil seal.

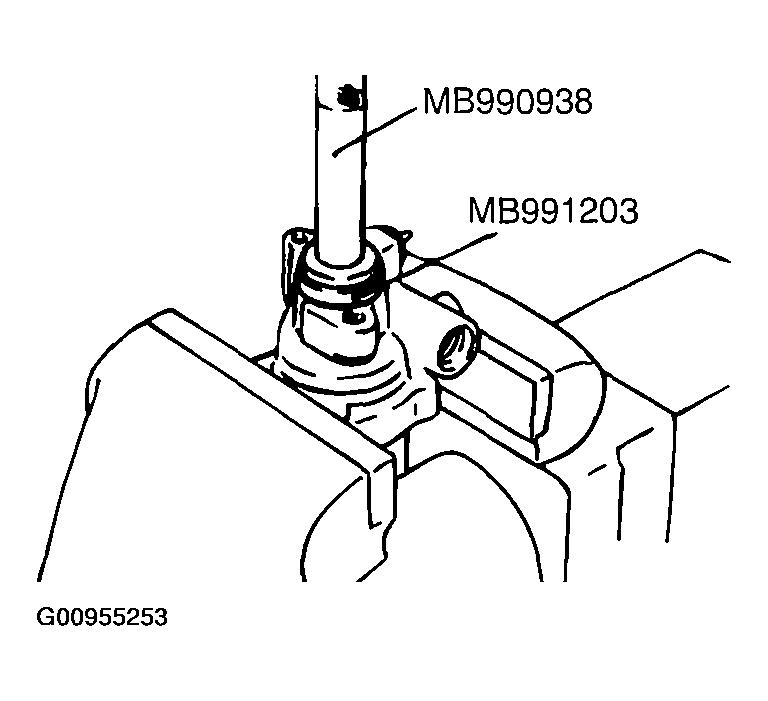

Fig 1: Installing Oil Seal Using Special Tool
G00955253Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
