Disassembly And Assembly

WARNING: This page is about a different variant/trim than selected.

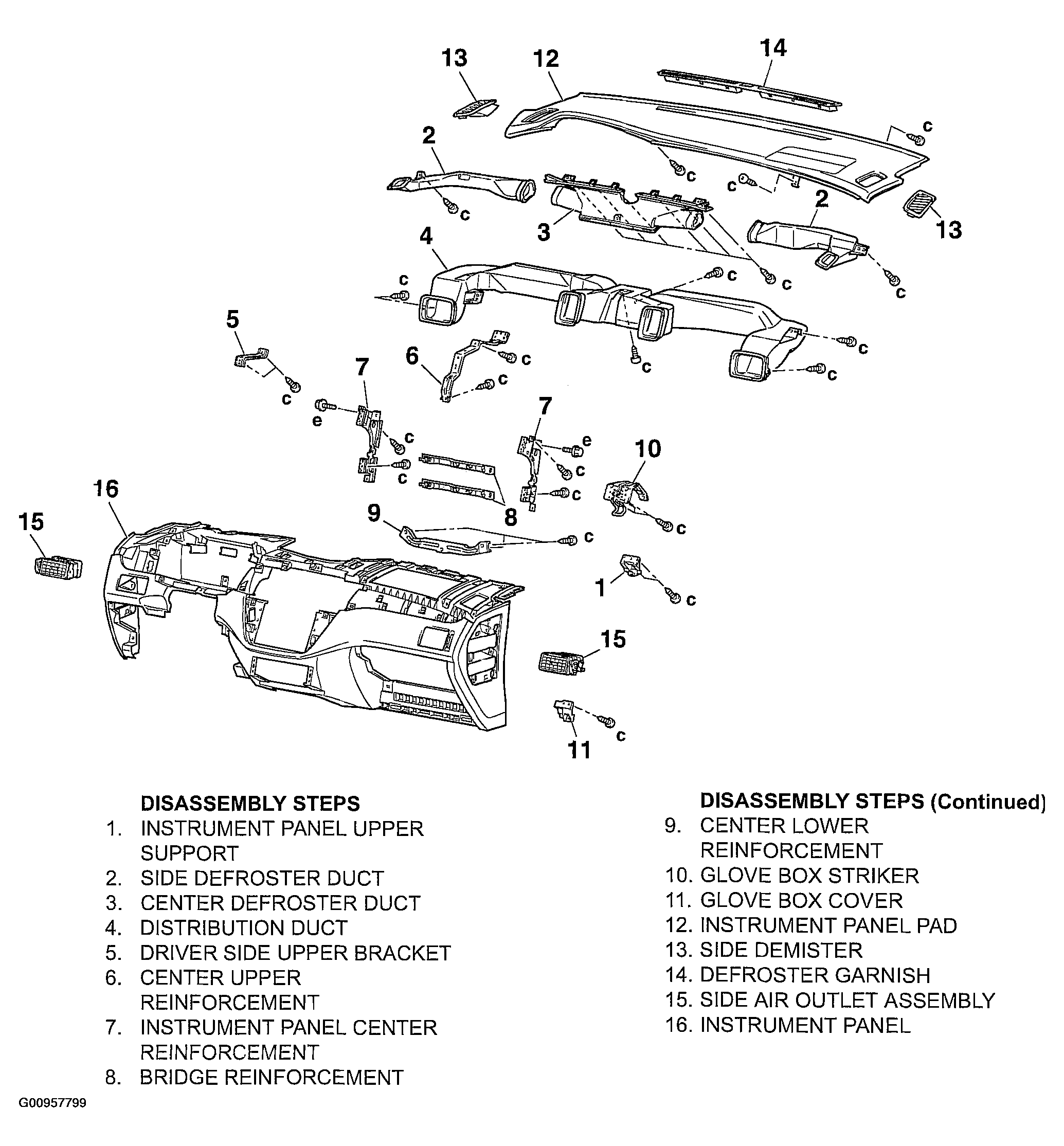

Fig 1: Identifying Instrument Panel Disassembly Steps
G00957799Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
