Clip And Claw Position

WARNING: This page is about a different variant/trim than selected.

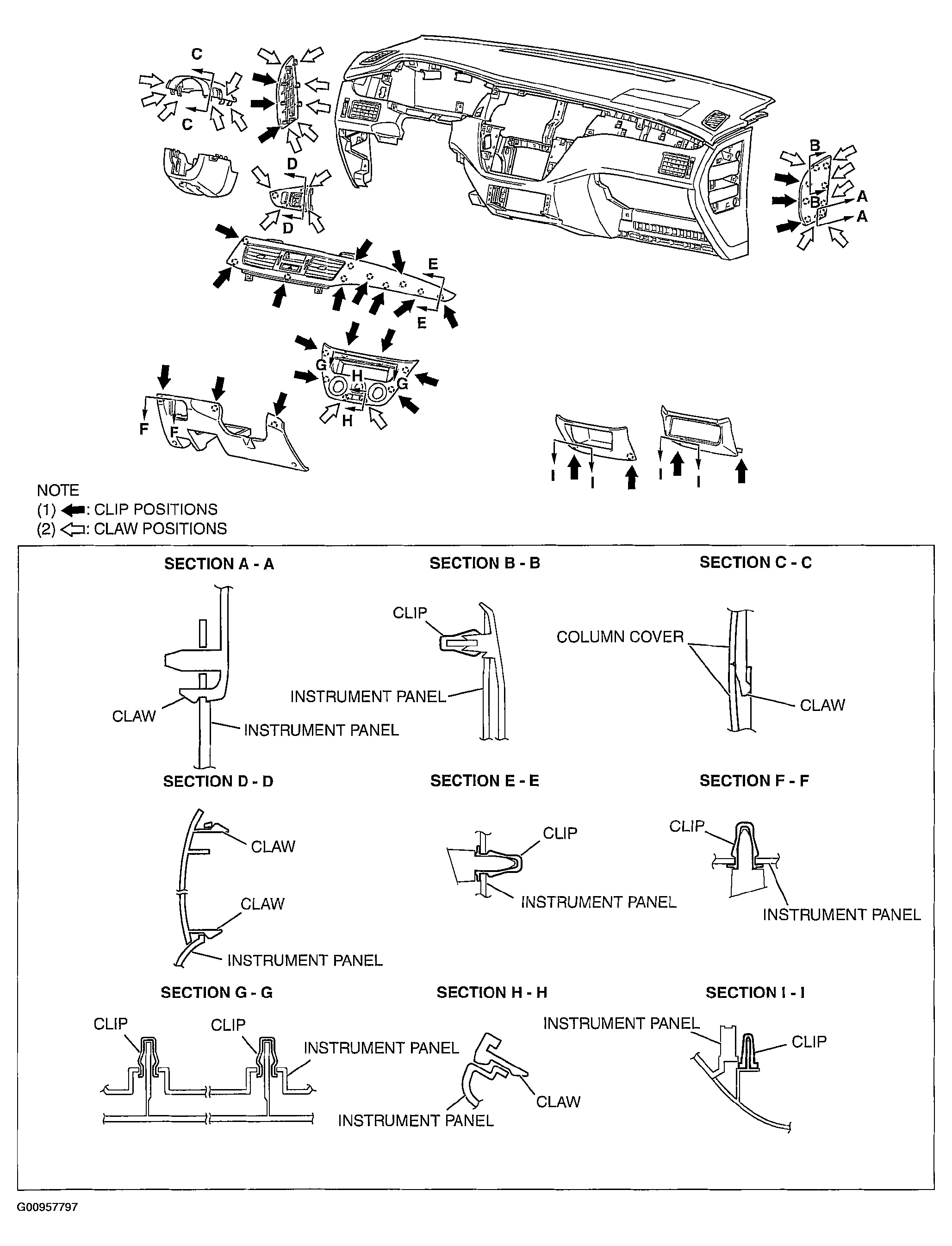

Fig 1: Identifying Clip And Claw Position
G00957797Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
