Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

WARNING: For removal and installation of passenger's side air bag module, always observe the service procedures described in DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING .

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in Fig 1 .

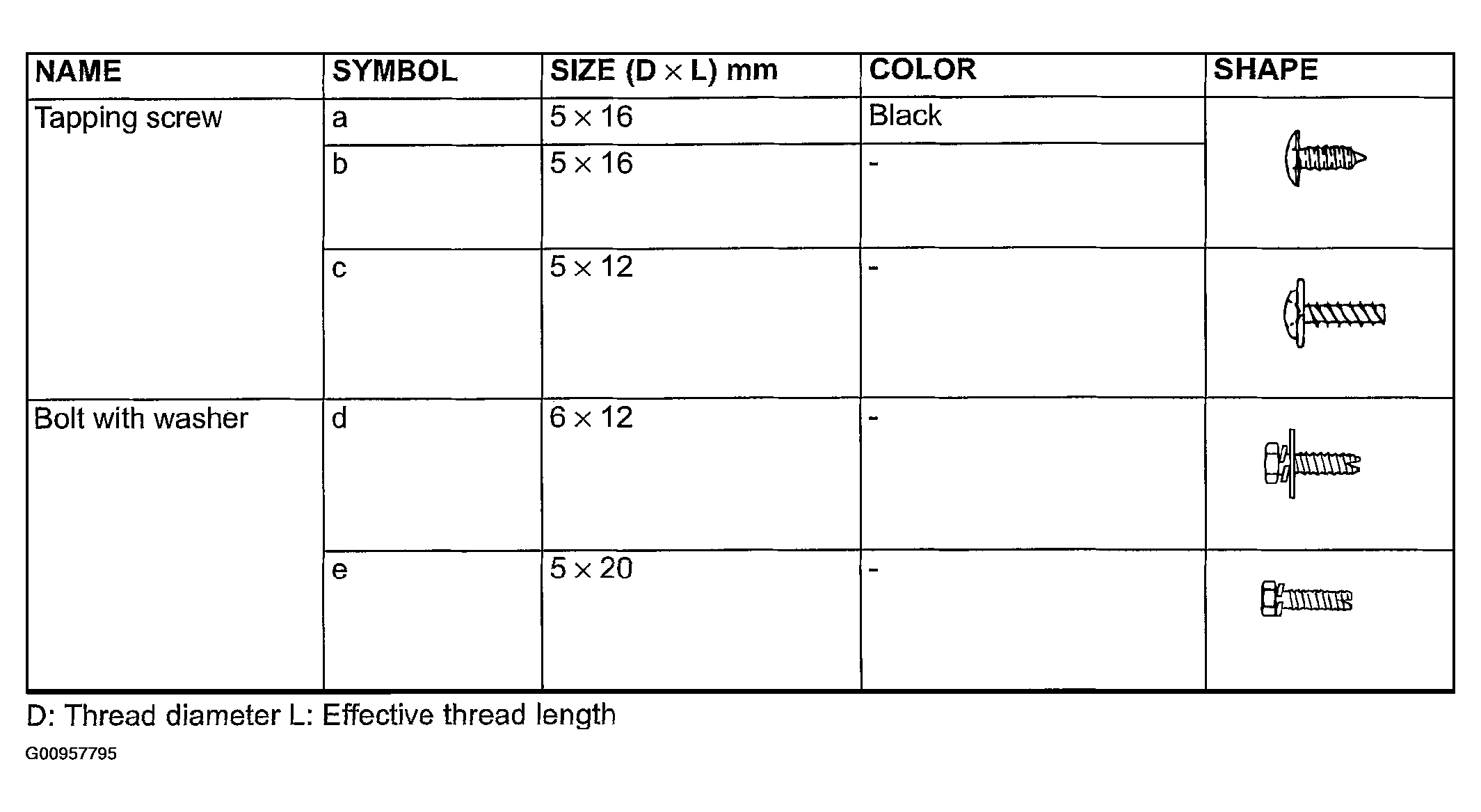

Fig 1: Identifying Instrument Panel Assembly Screws

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

Refer to AIR BAG SAFETY PRECAUTIONS and PASSENGER-SIDE AIR BAG MODULE before removing the passenger side air bag module.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

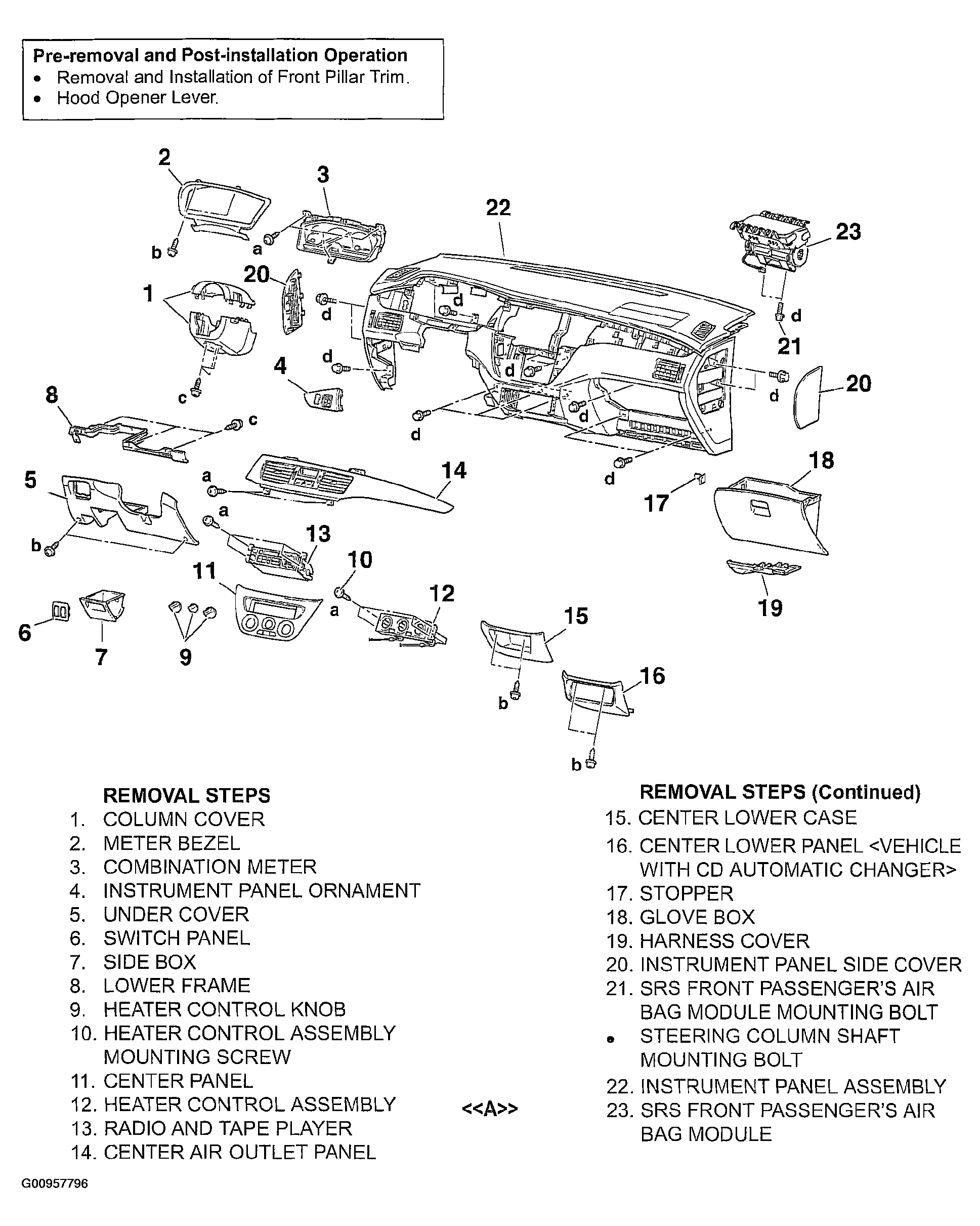

Fig 2: Identifying Instrument Panel Assembly Removal Steps
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
