<< A >> SRS Front Passenger's Air Bag Module Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Do not damage the claws of the hinge when removing the front passenger's air bag module.
- Store the removed front passenger's air bag module facing the deployed side upward in a clean and dry place.

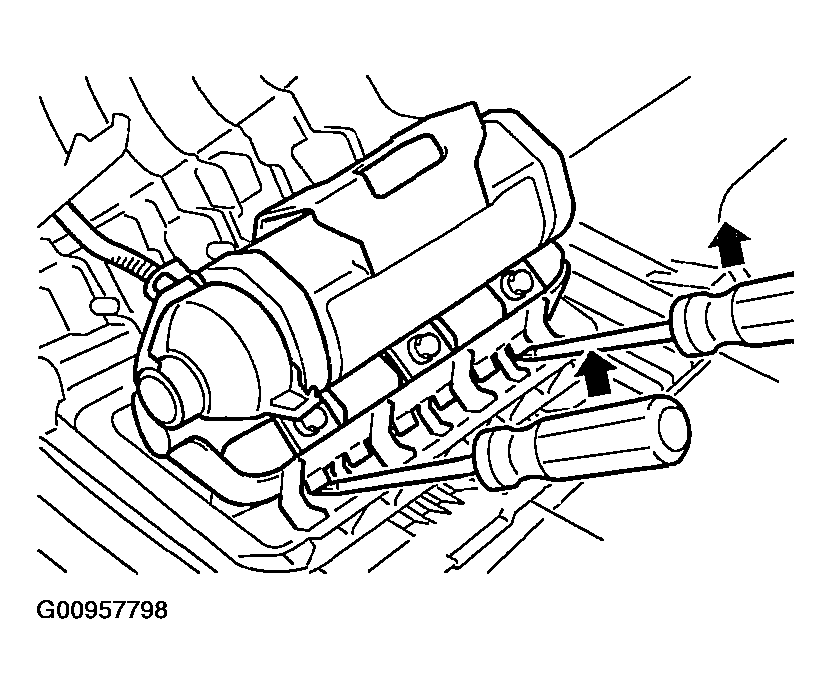

Insert the flat tipped screwdriver into the position shown in the illustration and pull up the screwdriver to disengage the claws for removal of the front passenger's air bag module.
