Engine Coolant Temperature Gauge Unit Check

WARNING: This page is about a different variant/trim than selected.

Drain the engine coolant. (Refer to 14. ENGINE COOLANT (CHANGE) .)
Remove the engine coolant temperature gauge unit.
Put water temperature gauge unit into the hot water in specified temperature, and ensure that basic resistance is within standard value.
Standard value: 70C° (150°F) 104 +/- 13.5 ohm

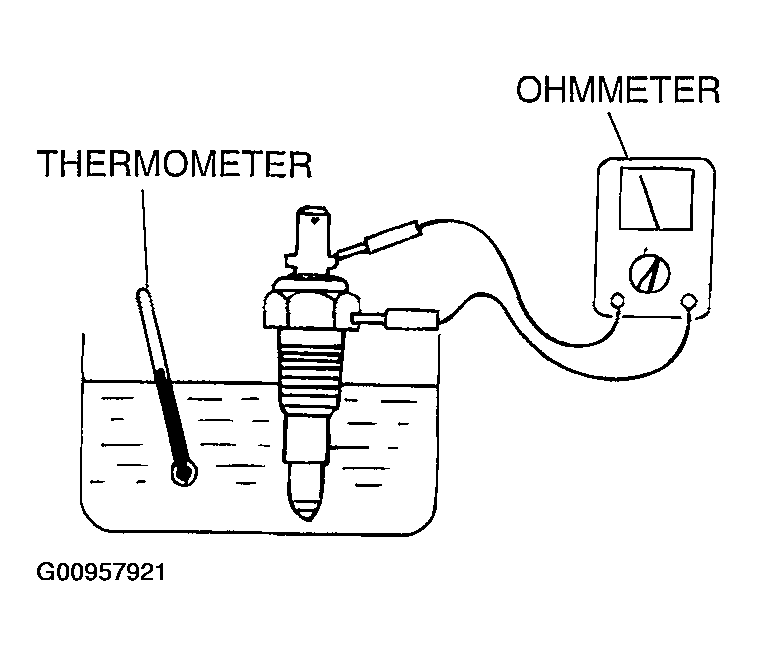

Fig 1: Checking Engine Coolant Temperature Gauge Unit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

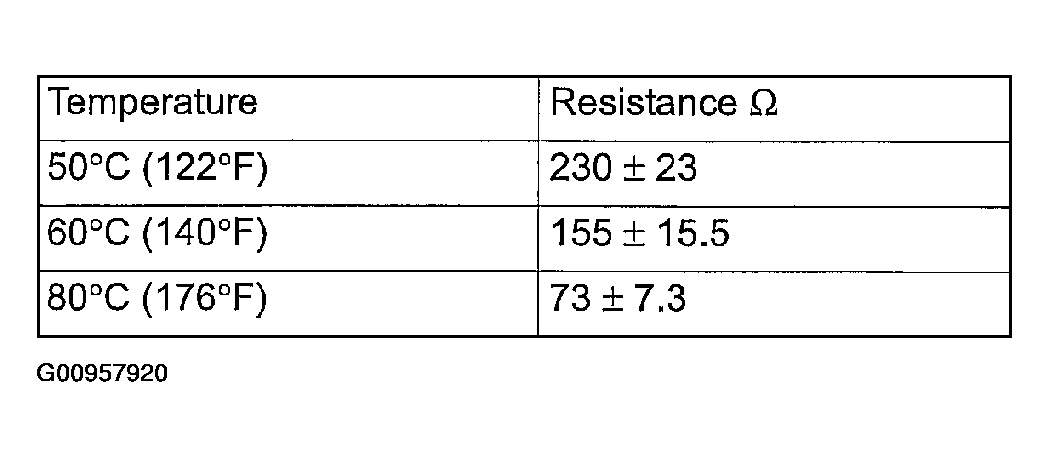

Fig 2: Engine Coolant Temperature Gauge Unit Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
After inspection, apply specified sealant at threads of water temperature gauge unit, and tighten to the specified torque.
Semi-drying sealant: 3M™ ADD part No.2310 or equivalent

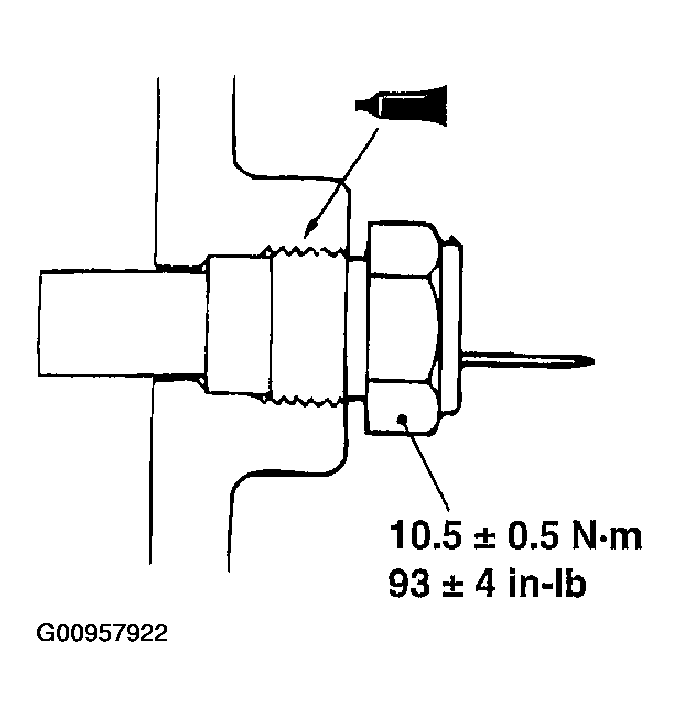

Fig 3: Applying Specified Sealant At Threads Of Water Temperature Gauge Unit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Refill coolant. (Refer to 14. ENGINE COOLANT (CHANGE) .)
