Front Seatback Assembly With Side-Airbag Module

WARNING: This page is about a different variant/trim than selected.

WARNING:

If any improper part is found during the following inspection, replace the front seatback assembly with a new one.
Dispose of the old one according to the specified procedure (Refer to PASSENGER-SIDE AIR BAG MODULE and SEAT BELT PRETENSIONER ).
Never attempt to measure the circuit resistance of the air bag module (squib) even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental air bag deployment will result in serious personal injury.

Check the air bag module deployment section for dents or deformation.
Check the connector for damage; check the terminals for deformation; and check the harness for binding.

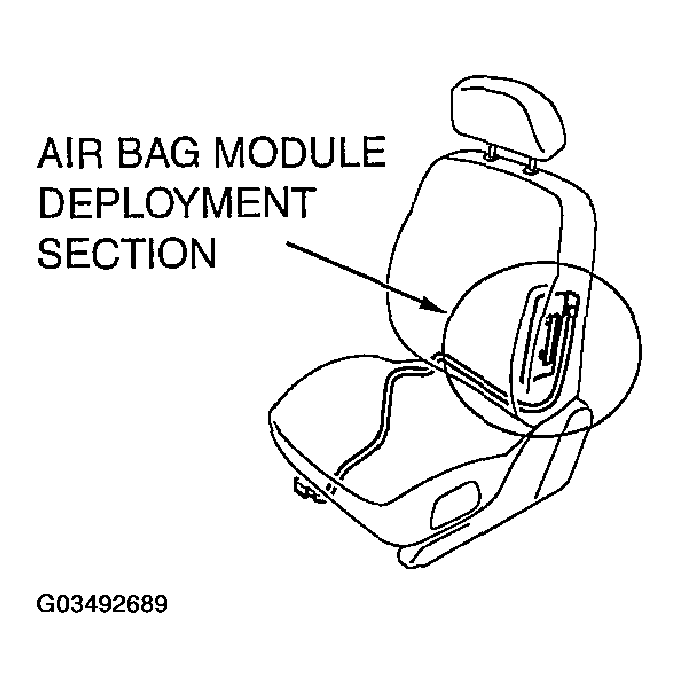

Fig 1: Checking Air Bag Module Deployment Section
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
