<< F >> Rack Stopper/Rack Bushing/Oil Seal/O-Ring/Rack Assembly Removal

  1. Pull out the rack slowly. Take out the rack stopper and the rack bushing at the same time.

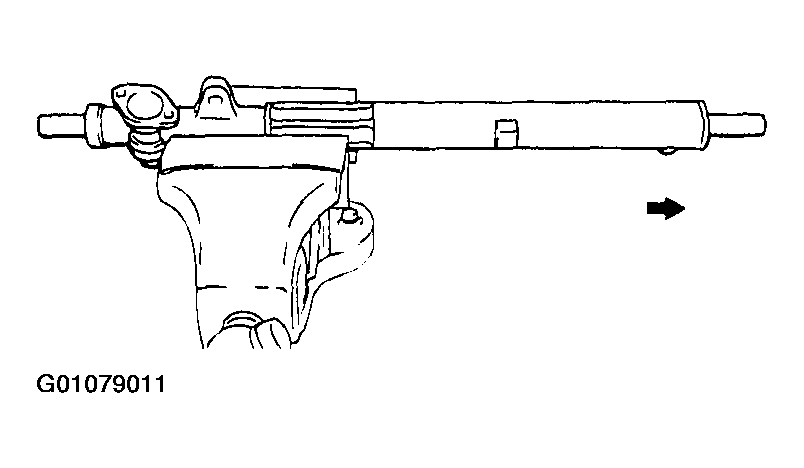

    Fig 1: Removing Rack, Rack Stopper And Bushing
    G01079011Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not damage the oil seal press fitting surface.
  2. Partially bend the oil seal and remove it from the rack bushing.

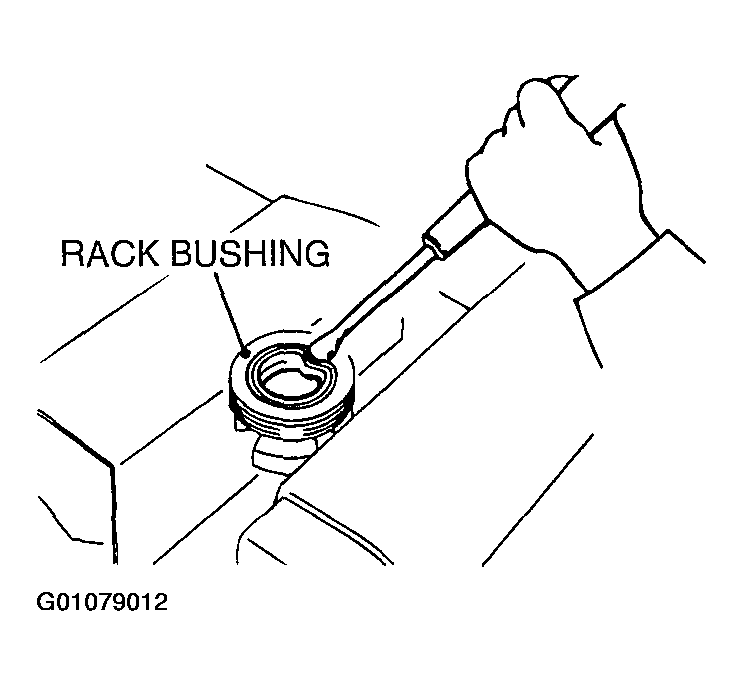

    Fig 2: Removing Oil Seal From Rack Bushing
    G01079012Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
