>> N << Band Installation

Turn the adjusting bolt of special tool MB991561 to adjust the opening dimension (W) to the standard value.

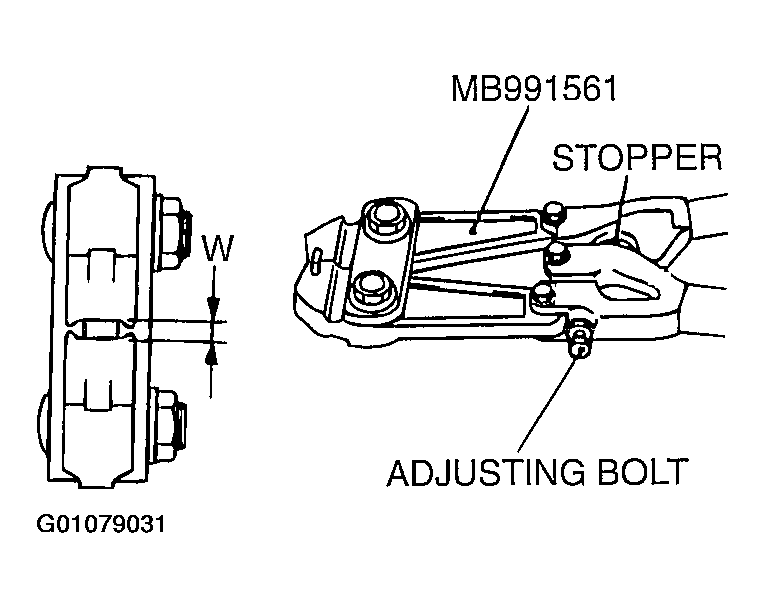

Fig 1: Identifying Adjusting Bolt Of Special Tool MB991561
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The dimension (W) is adjusted by approximately 0.7 mm (0.03 inch) per one turn.

NOTE: Do not turn the adjusting bolt more than one turn.
1. Standard value (W): 2.9 mm (0.11 inch)
  < When more than 2.9 mm (0.11 inch) >: Screw in the adjusting bolt.

  < When less than 2.9 mm (0.11 inch) >: Loosen the adjusting bolt.
CAUTION:
- Hold the rack housing, and use special tool MB991561 to crimp the bellows band securely.
- Crimp the bellows band until special tool MB991561 touches the stopper.
Use special tool MB991561 to crimp the bellows band.

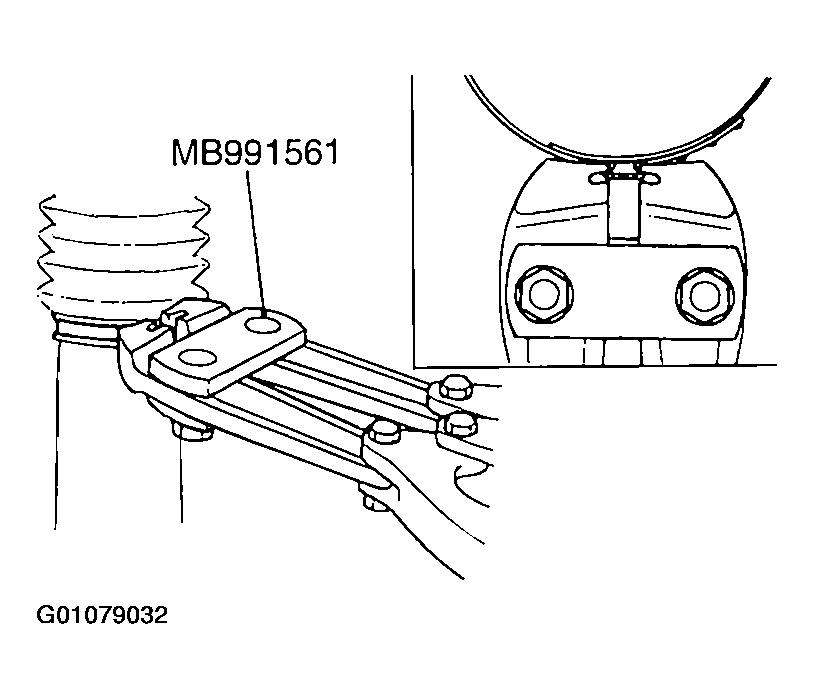

Fig 2: Crimping Bellows Band Using Special Tool MB991561
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check that crimped width (A) is within the standard value.
1. Standard value (A): 2.4 - 2.8 mm (0.09 - 0.11 inch)
  < When more than 2.8 mm (0.11 inch) >: Readjust the dimension (W) of step (1) to the value calculated by the following equation, and repeat step (2).

  W = 5.5 mm (0.22 inch) - A [Example: if (A) is 2.9 mm (0.11 inch), (W) is 2.6 mm (0.10 inch).]

  < When less than 2.4 mm (0.09 inch) >: Remove the bellows band, readjust the dimension (W) of step (1) to the value calculated by the following equation, and use a new bellows band to repeat steps (2) to (3).

  W = 5.5 mm (0.22 inch) - A [Example: if (A) is 2.3 mm (0.09 inch), (W) is 3.2 mm (0.13 inch).]

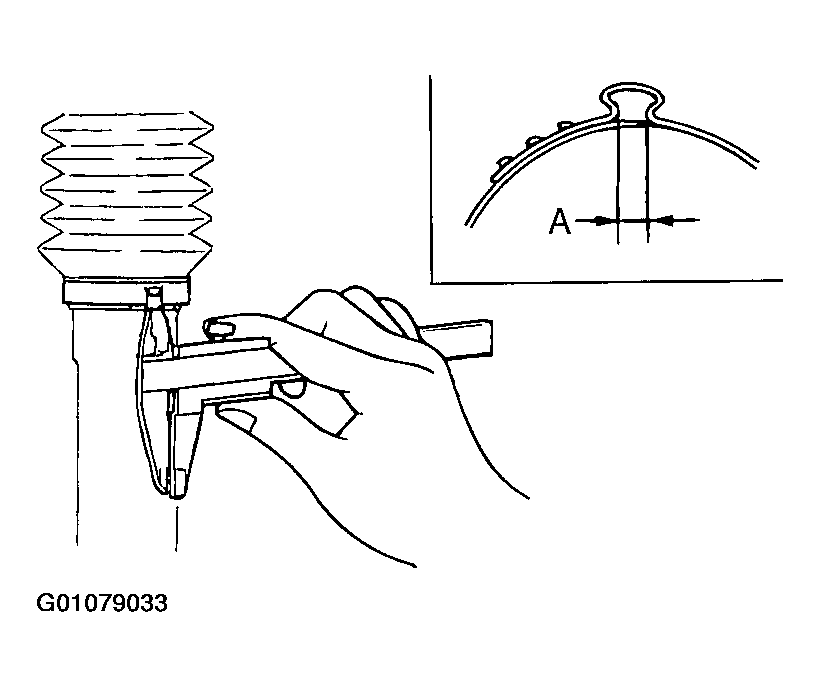

Fig 3: Measuring Crimped Width Of Bellows Band

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
