Disassembly And Assembly

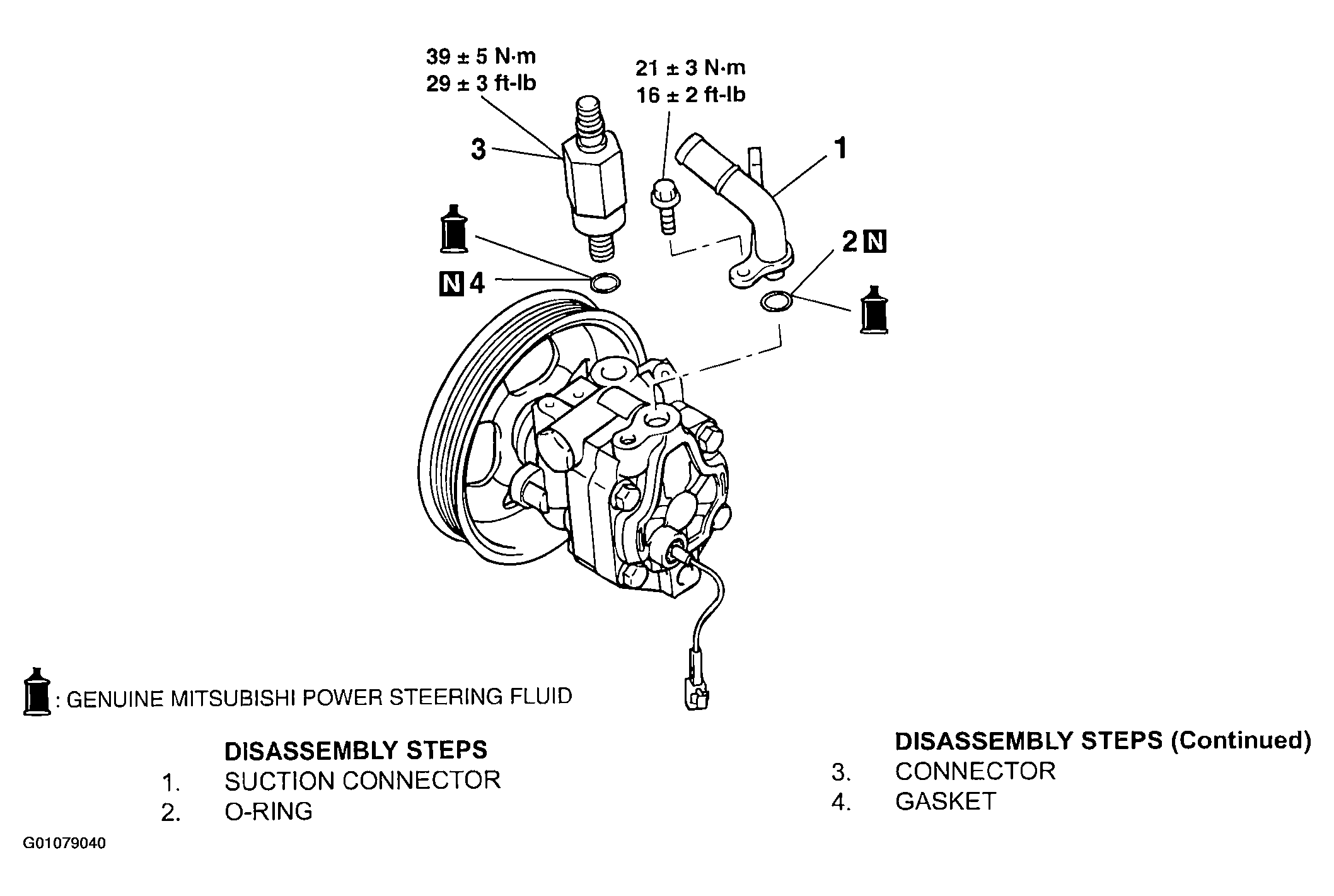

Fig 1: Disassembling Power Steering Pump
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
