<< B >> Steering Wheel And Airbag Module Assembly Removal

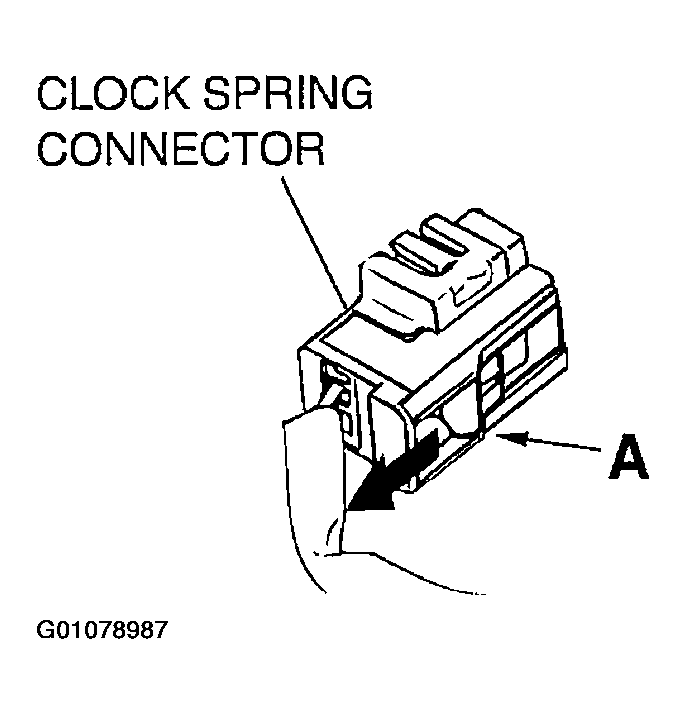

By sliding section A of the clock spring connector as shown in Fig 1 in the arrow direction, disconnect the connector.

Fig 1: Aligning Section "A" Of Clock Spring Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Loosen the bolt completely. Then, remove the steering wheel and airbag module assembly.

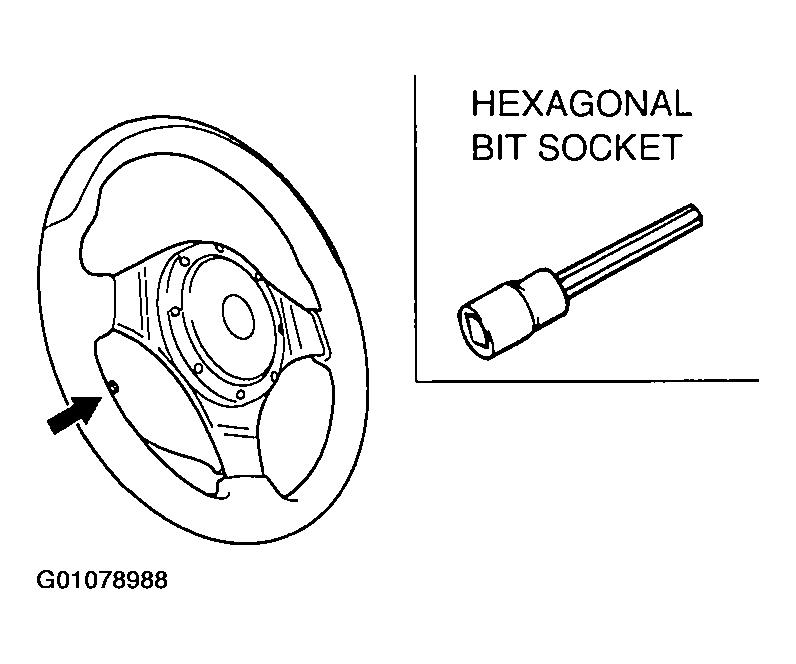

Fig 2: Identifying Hexagonal Bit Socket
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Use a hexagonal bit socket or a hexagonal wrench having an effective length of 75 mm (3.0 inches) or more in the hexagonal section and the diameter of 8 mm (0.31 inches) or more.
