Fastener Tightening Specifications

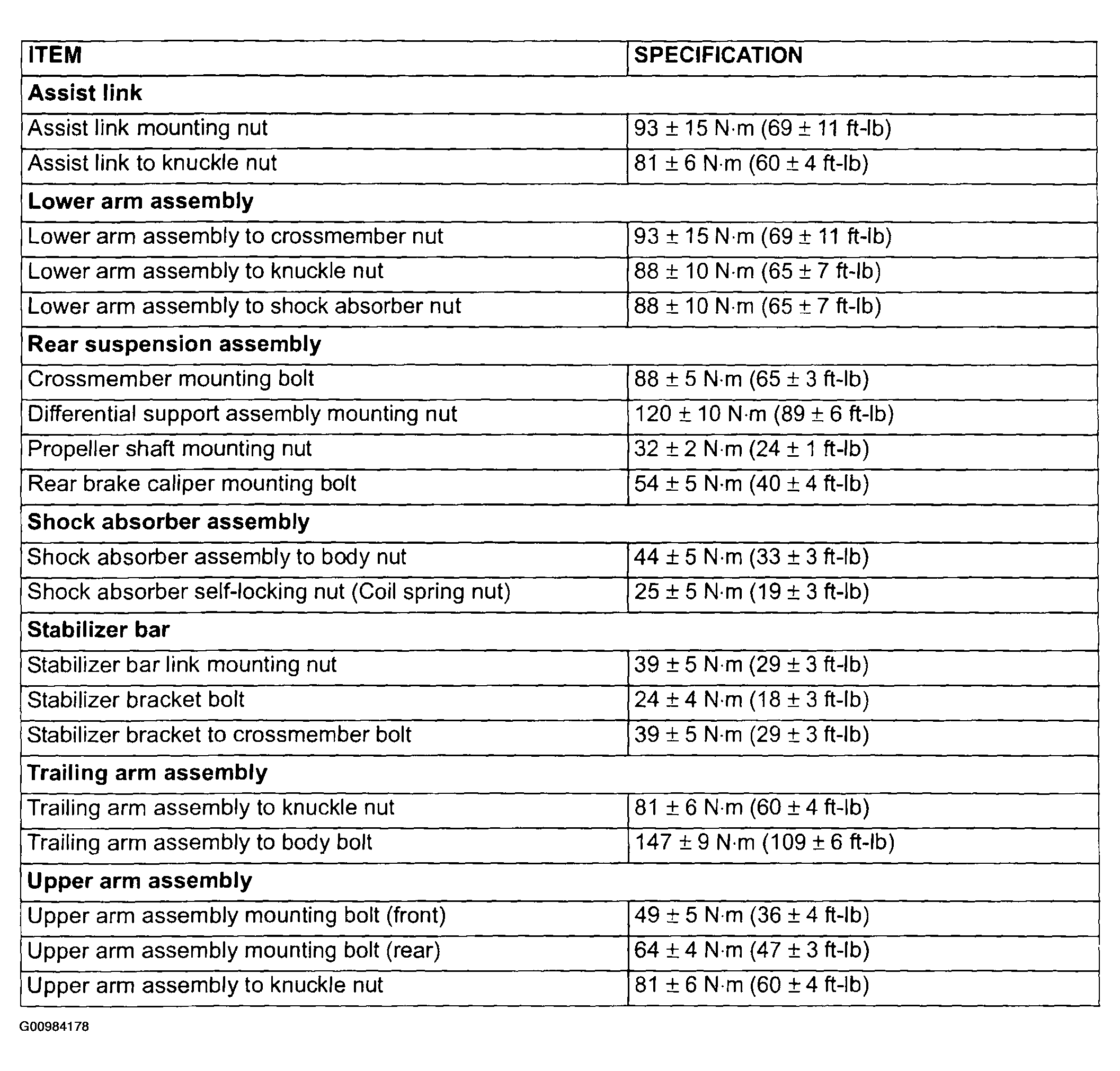

Fig 1: Fastener Fastener Tightening Torque Specifications Table Table
G00984178Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
