>> H << 5TH Speed Gear Installation

  1. Using special tool MD998801, support the 2nd speed gear portion of the input shaft, and then set them on the press.
  2. Using special tools MD998812, MD998813 and MD998825, press install the 5th speed gear in the input shaft.

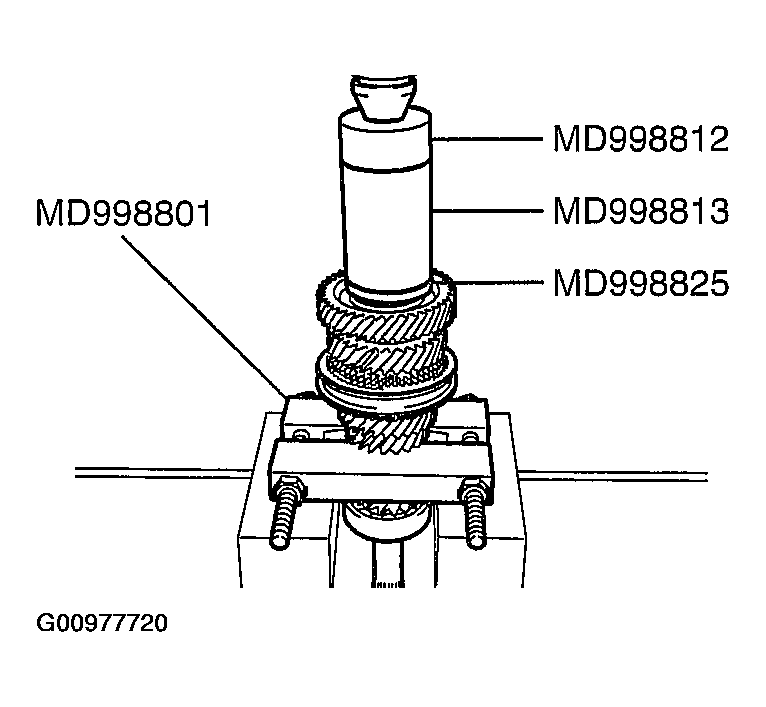

    Fig 1: Installing 5th Speed Gear
    G00977720Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
