<< B >> Thrust Plate Stopper Removal

Using a screwdriver, pry up the position shown in the illustration and remove the thrust plate stopper.

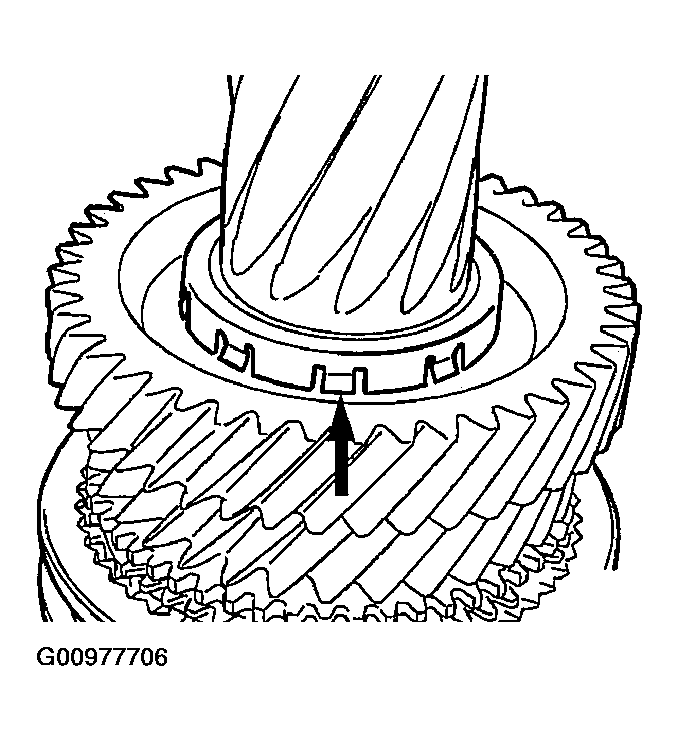

Fig 1: Removing Thrust Plate Stopper
G00977706Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
