Synchronizer Sleeve And Hub

  1. Combine the synchronizer sleeve and hub, and check that they slide smoothly.
  2. Check that the sleeve is free from damage at its inside splines ends.

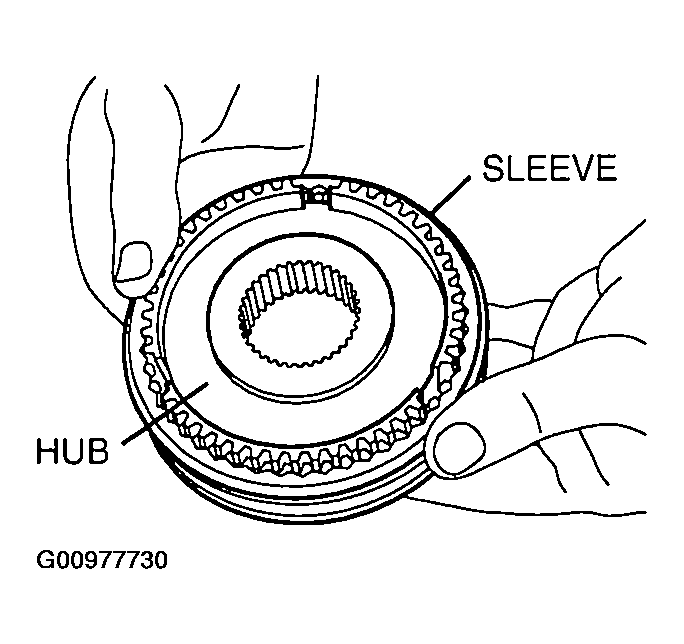

    Fig 1: Identifying Synchronizer Sleeve And Hub
    G00977730Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
