>> F << Synchronizer Sleeve Installation

  1. Check that the synchronizer sleeve is in the correct direction for installation, and install it on the 1st-2nd speed synchronizer hub.

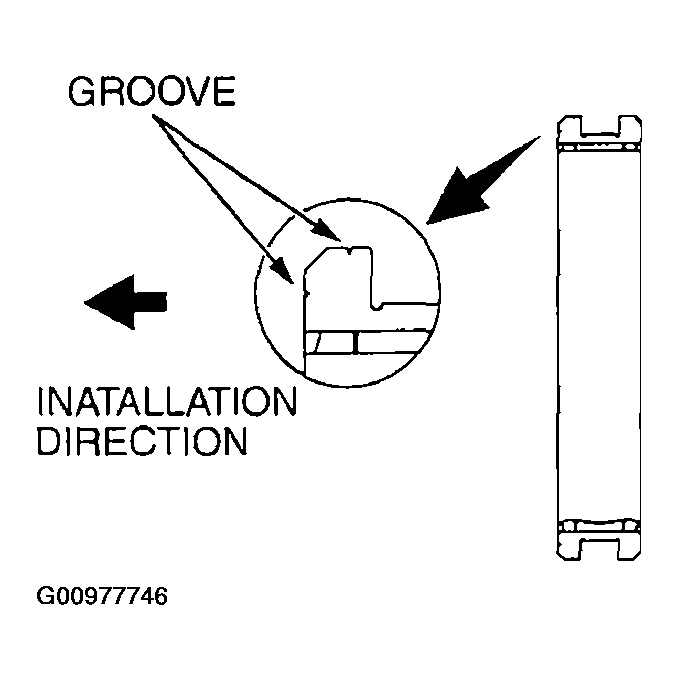

    Fig 1: Installing Synchronizer Sleeve
    G00977746Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the synchronizer sleeve so that the areas with teeth that have raised tips (three areas total) are aligned with the areas on the synchronizer hub that have deep grooves between the teeth (three areas total).

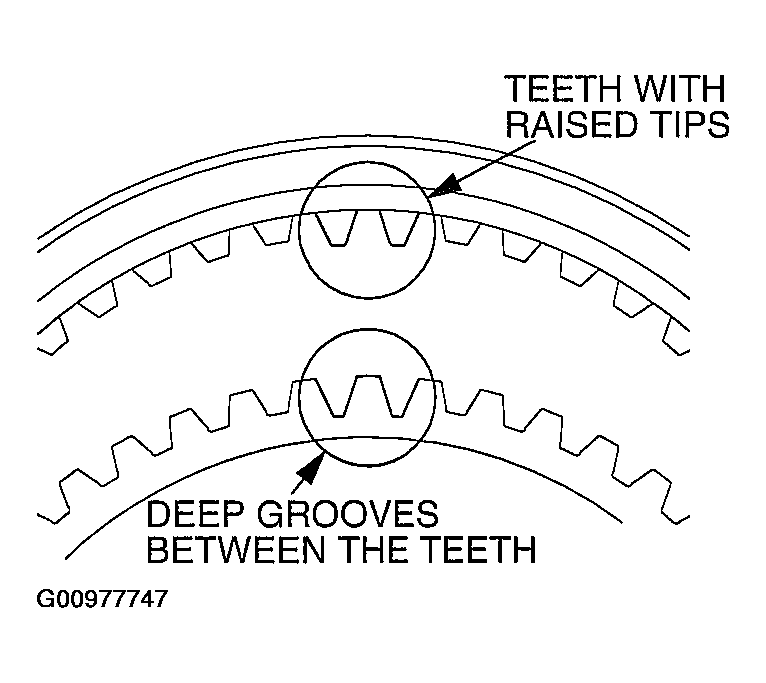

    Fig 2: Checking Teeth Meshing
    G00977747Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
