>> I << Snap Ring Installation

  1. Install the thickest snap ring that can be fitted in the groove of output shaft.
  2. Make sure that the 3rd speed gear end play meets the standard value.
    1. Standard value: 0-0.09 mm (0-0.0035 inch)

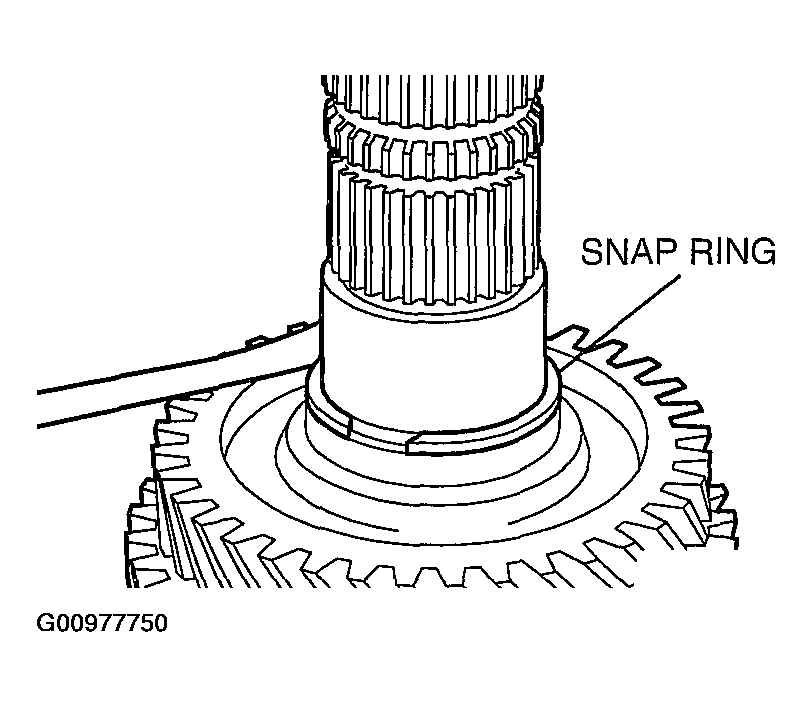

    Fig 1: Installing Snap Ring
    G00977750Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
