>> N << Synchronizer Sleeve Installation

  1. Check that the synchronizer sleeve is in the correct direction for installation, and install it on the 5th speed-reverse synchronizer hub.

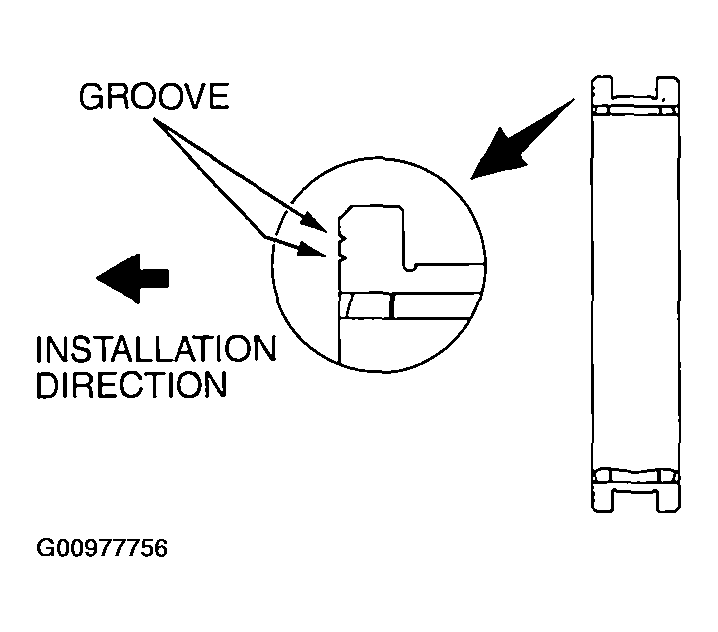

    Fig 1: Installing Synchronizer Sleeve
    G00977756Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the synchronizer sleeve so that the areas with teeth that have raised tips (three areas total) are aligned with the areas on the synchronizer hub that have deep grooves between the teeth (three areas total).

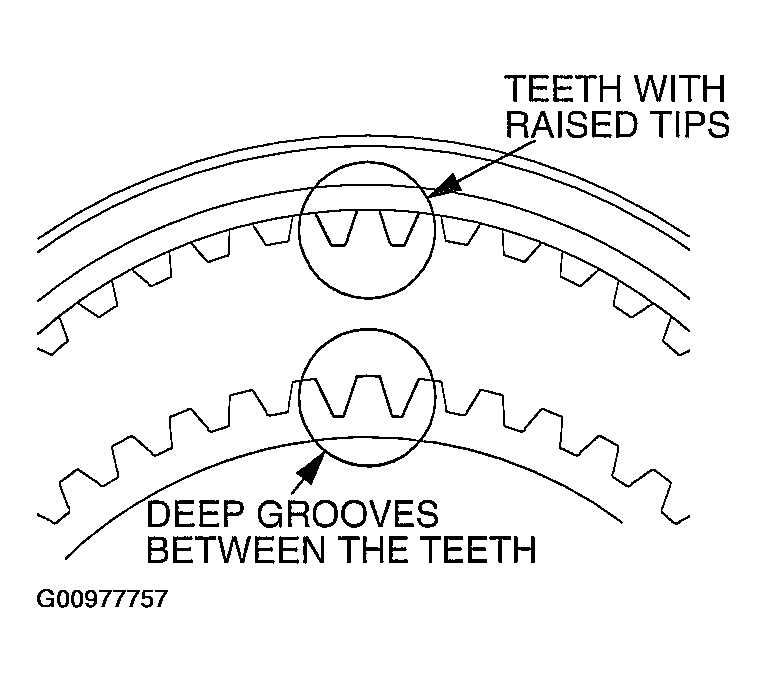

    Fig 2: Checking Meshing Of Teeth
    G00977757Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
