>> D << Differential Drive Gear Installation

  1. Apply sealant (3M™AAD Part Number 8730 or 8731 or equivalent) to the entire threaded portion of the bolt.

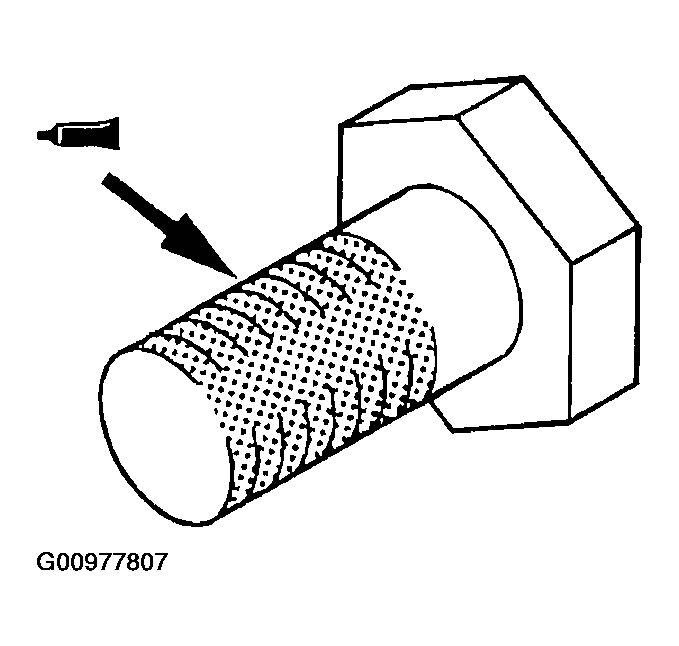

    Fig 1: Apply Sealant 3M Aad Part Number 8730 Or 8731 Or Equivalent
    G00977807Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Tighten to the specified torque in the illustrated sequence.
    1. Tightening torque: 133 +/- 4 N.m (98 +/- 3 ft-lb)

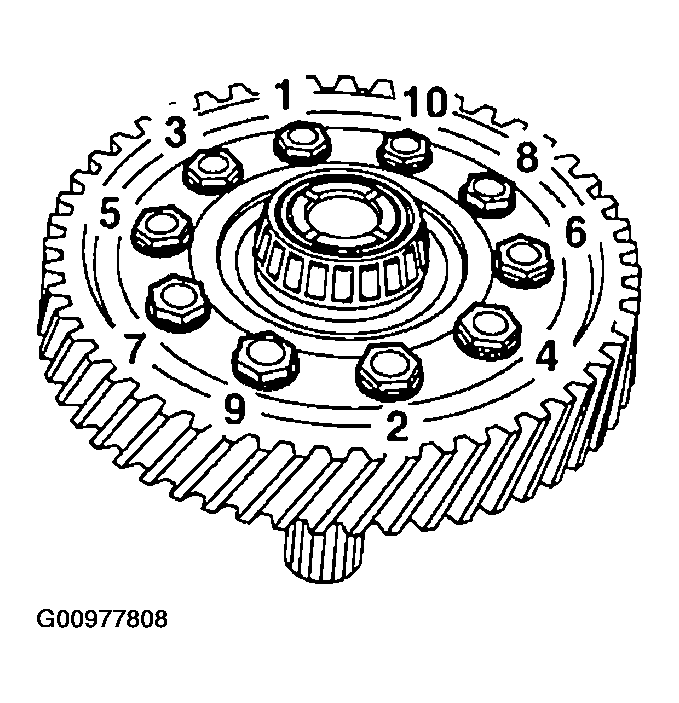

    Fig 2: Showing Tightening Sequence Of Bolts
    G00977808Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
