Disassembly And Assembly: Notes

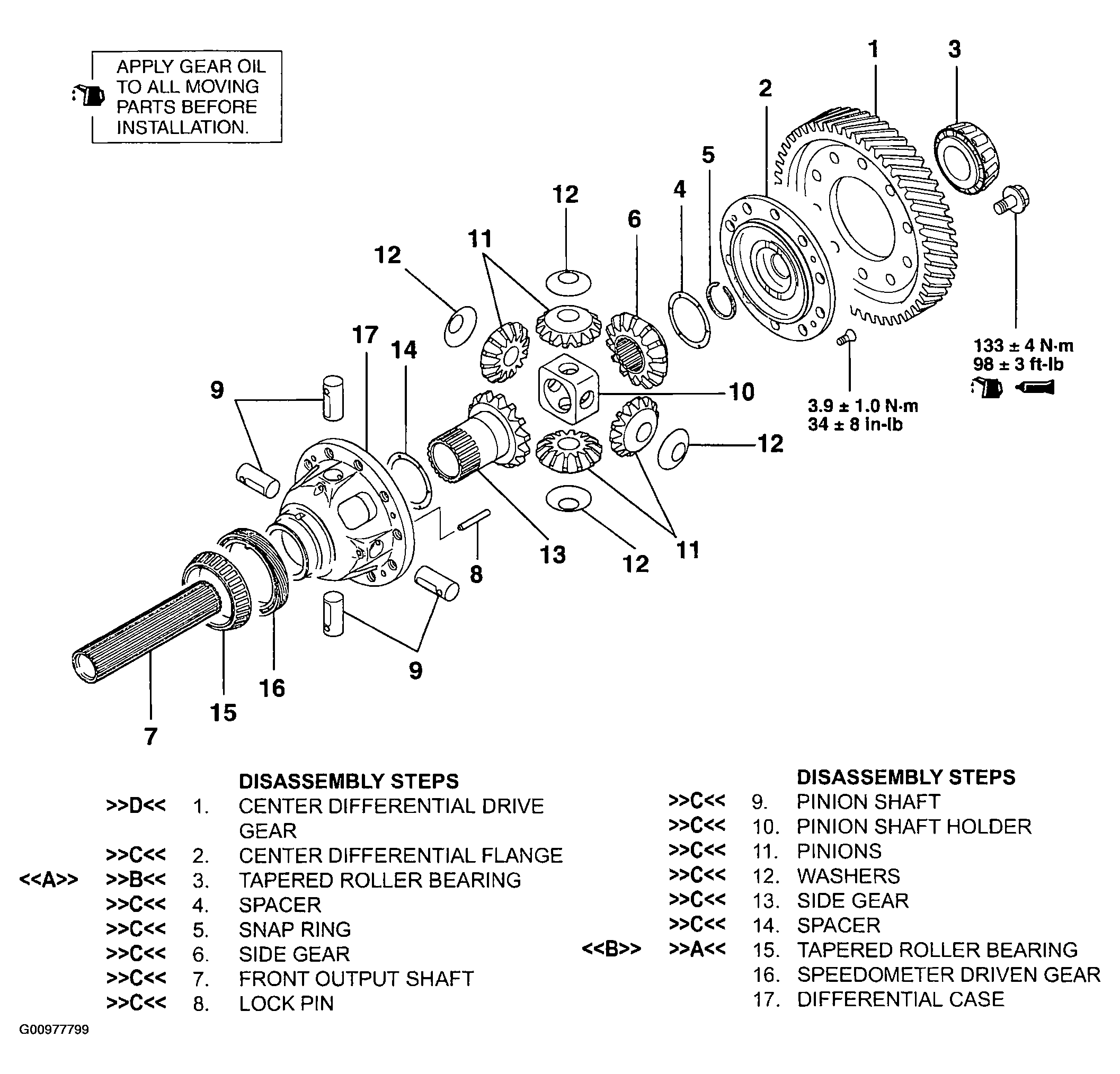

Fig 1: Identifying Centre Deferential
G00977799Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
