>> A << Needle Bearing Installation

Press fit the needle bearing into the control housing side as shown.

Make sure that the side with the model number stamped on it faces the end of the control housing as shown.

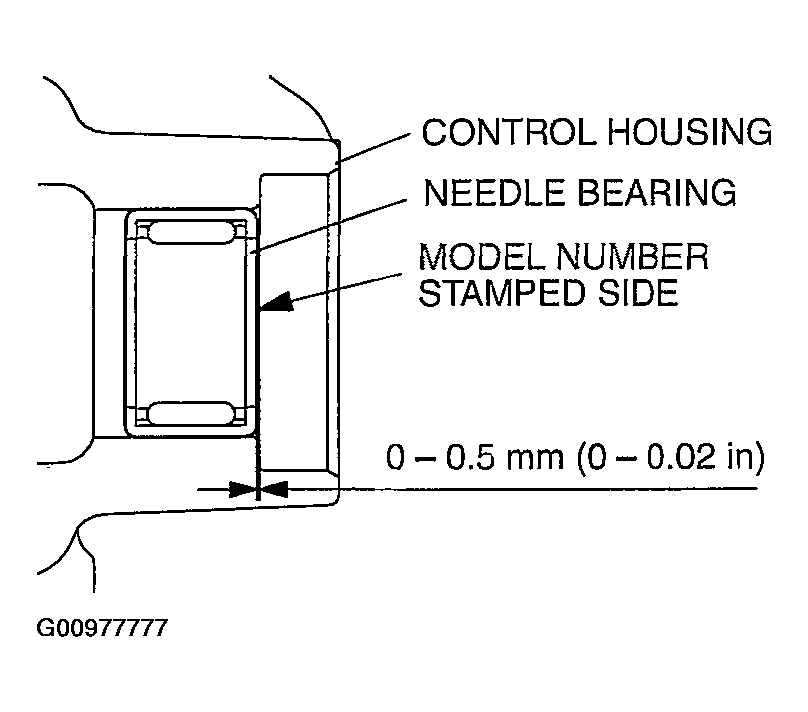

Fig 1: Installing Needle Bearing
G00977777Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
