<< A >> Lock Pin Removal

Drive out the lock pin in the direction shown.

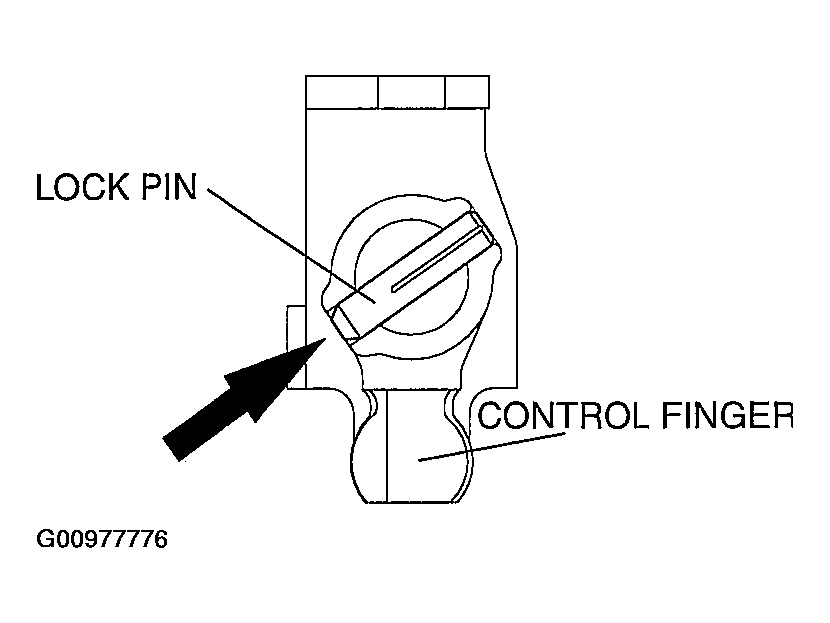

Fig 1: Removing Lock Pin
G00977776Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
