Special Tools

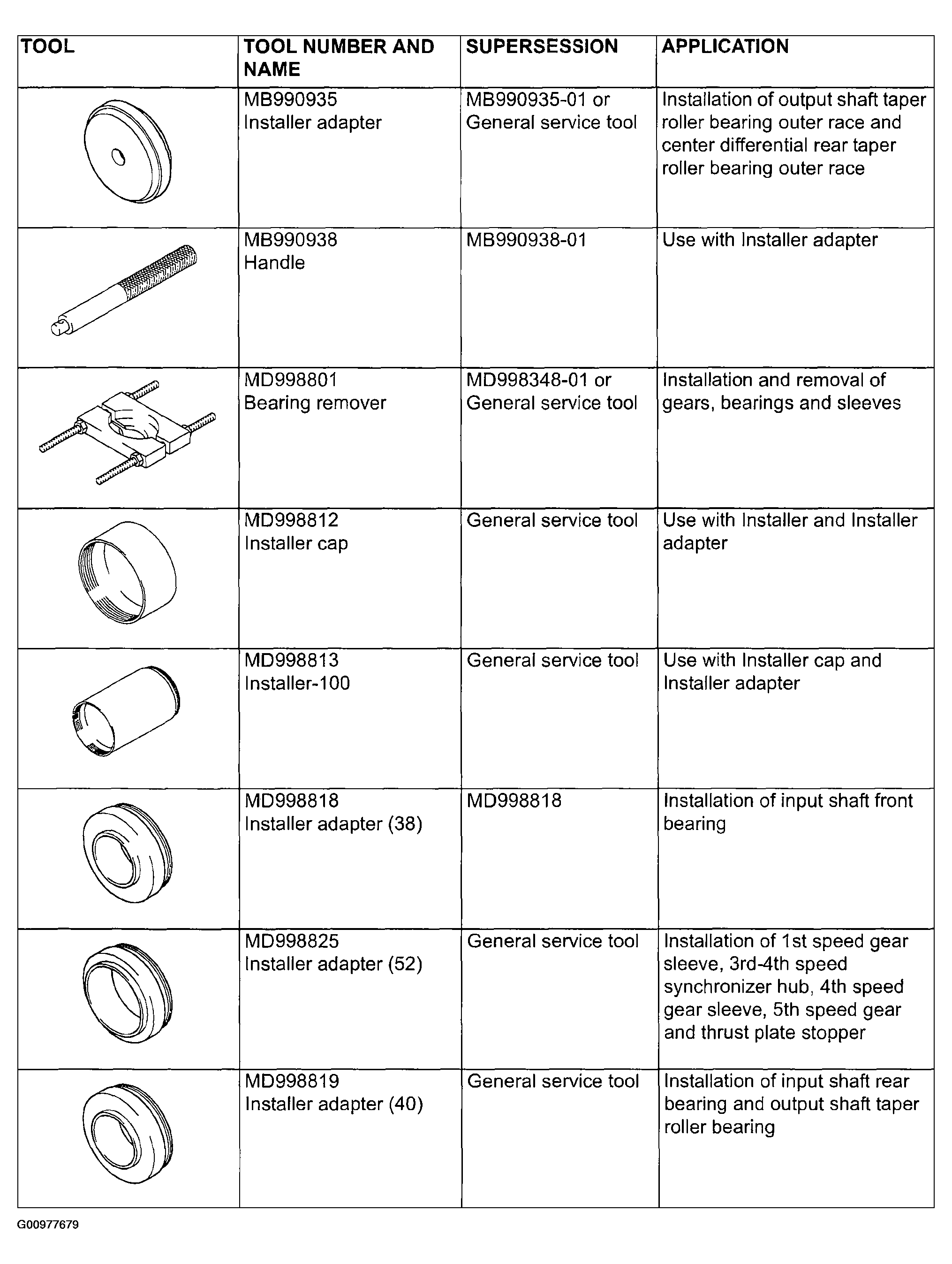

Fig 1: Chart Special Tools (1 Of 3)
G00977679Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Chart Special Tools (2 Of 3)
G00977680Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

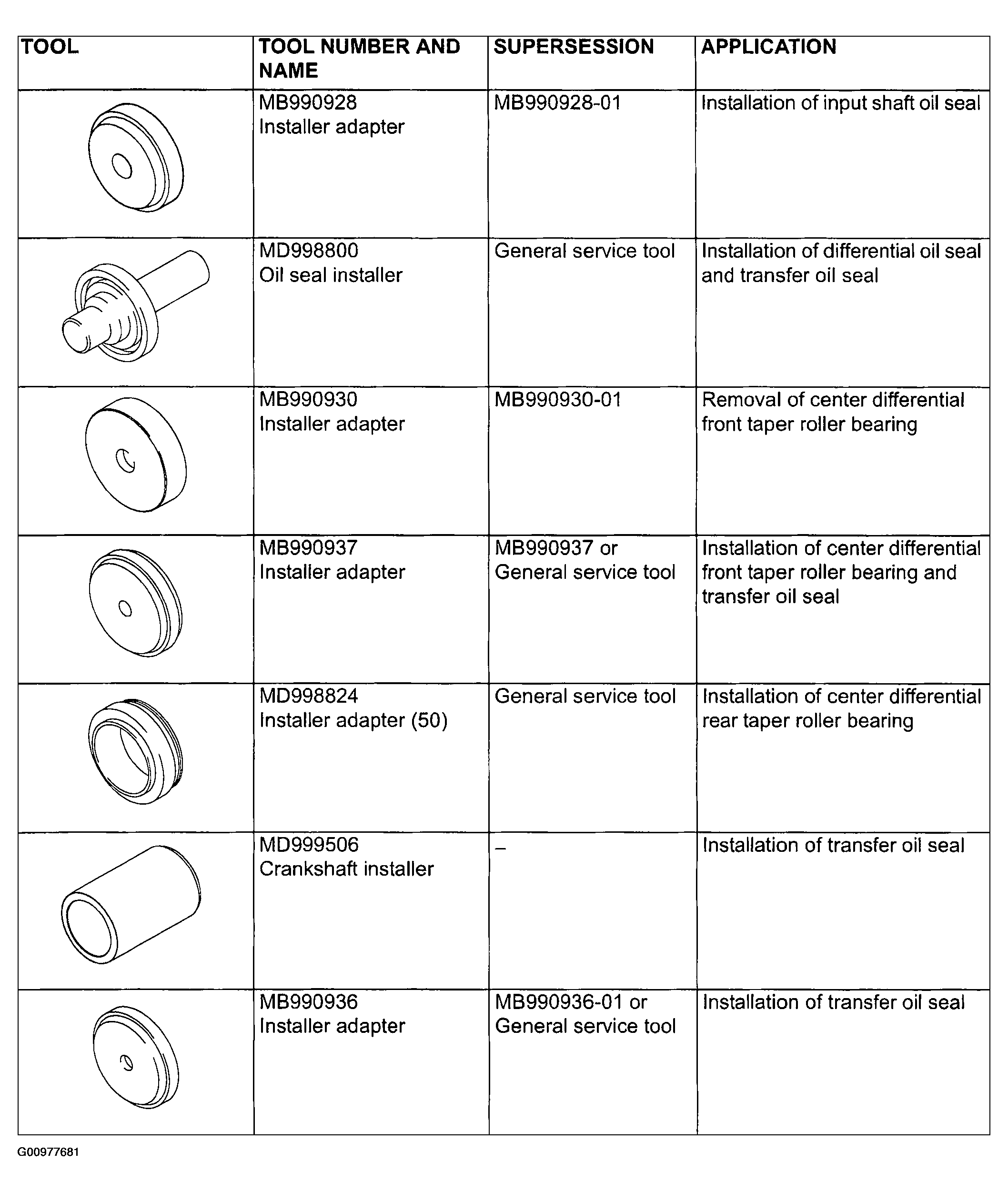

Fig 3: Chart Special Tools (3 Of 3)
G00977681Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
