Disassembly And Assembly

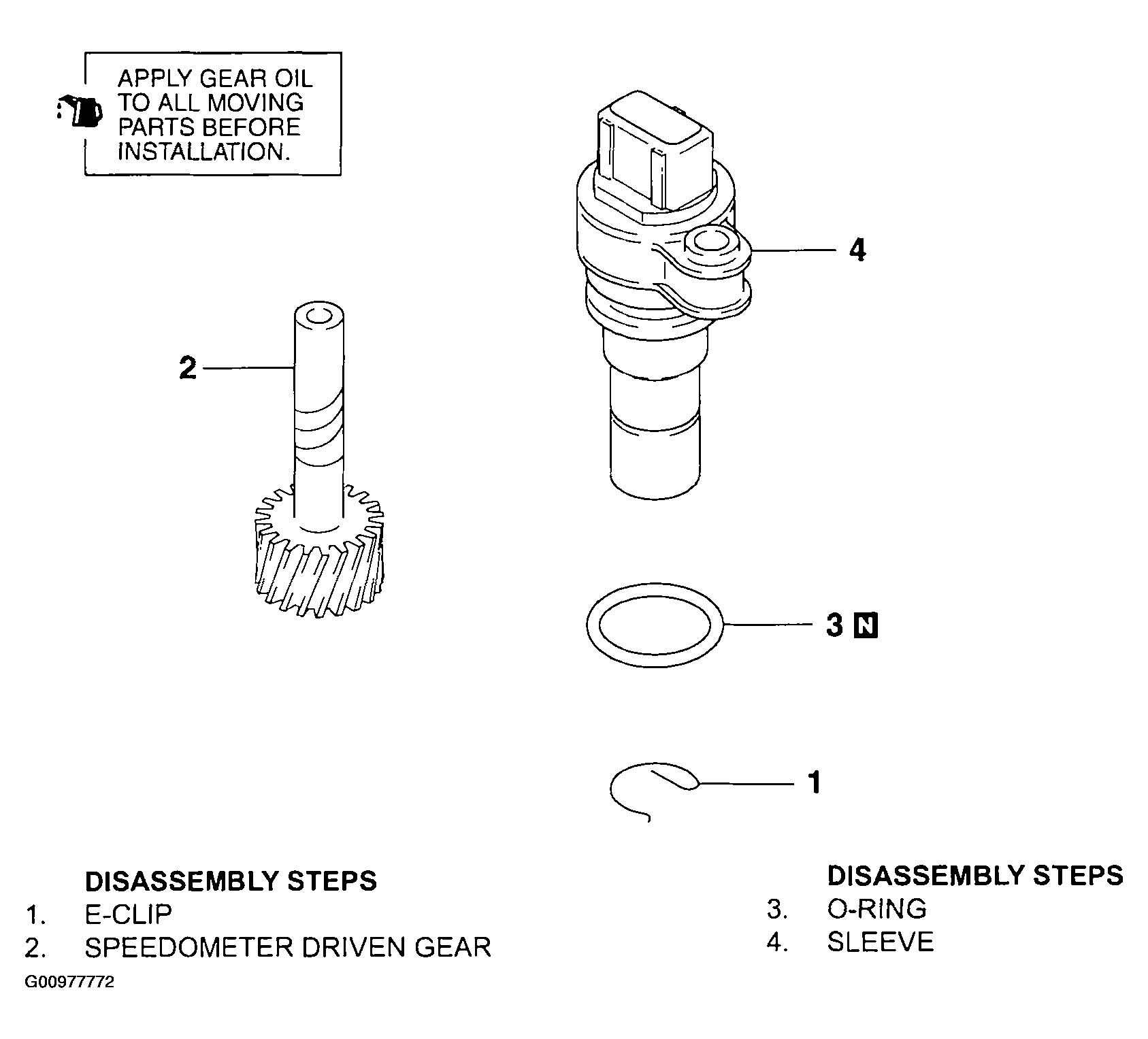

Fig 1: Identifying Speedometer Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
