<< C >> Center Differential/Output Shaft/Input Shaft Removal

Remove the input and output shafts together.

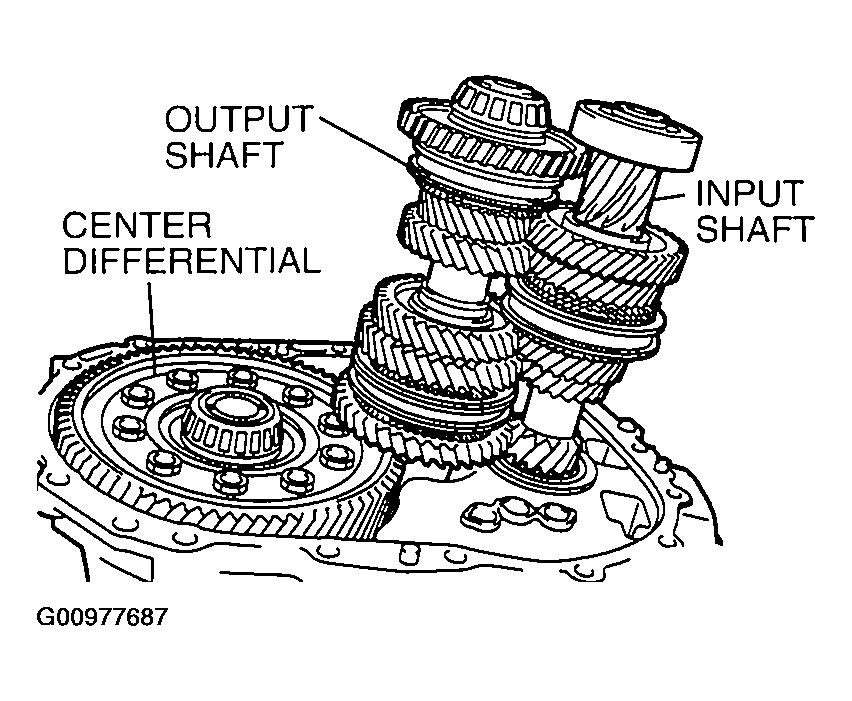

Fig 1: Removing Input And Output Shafts
G00977687Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
