Without Keyless Entry System

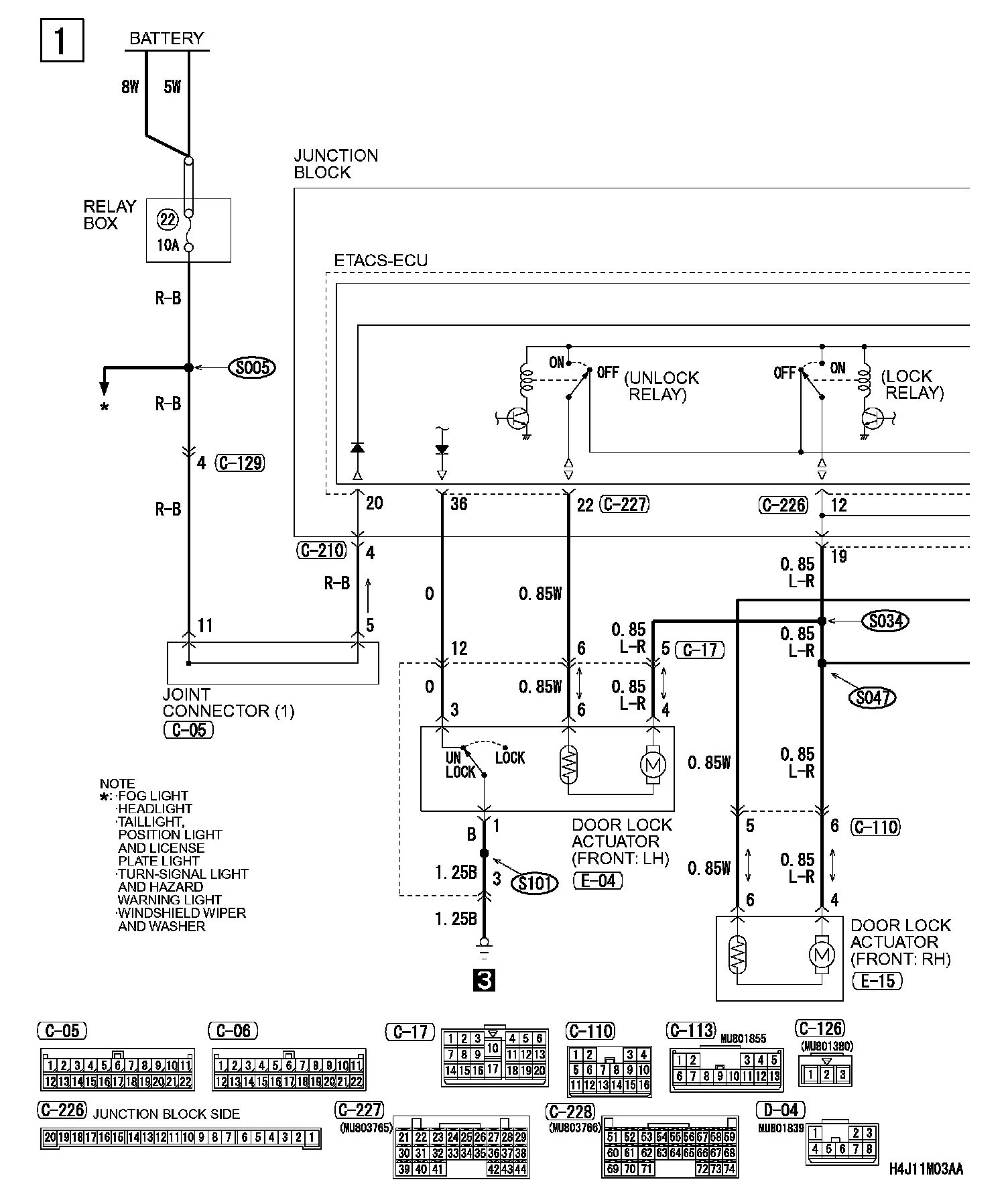

Central Door Locking System (Vehicle Without Keyless Entry System) Part 1:

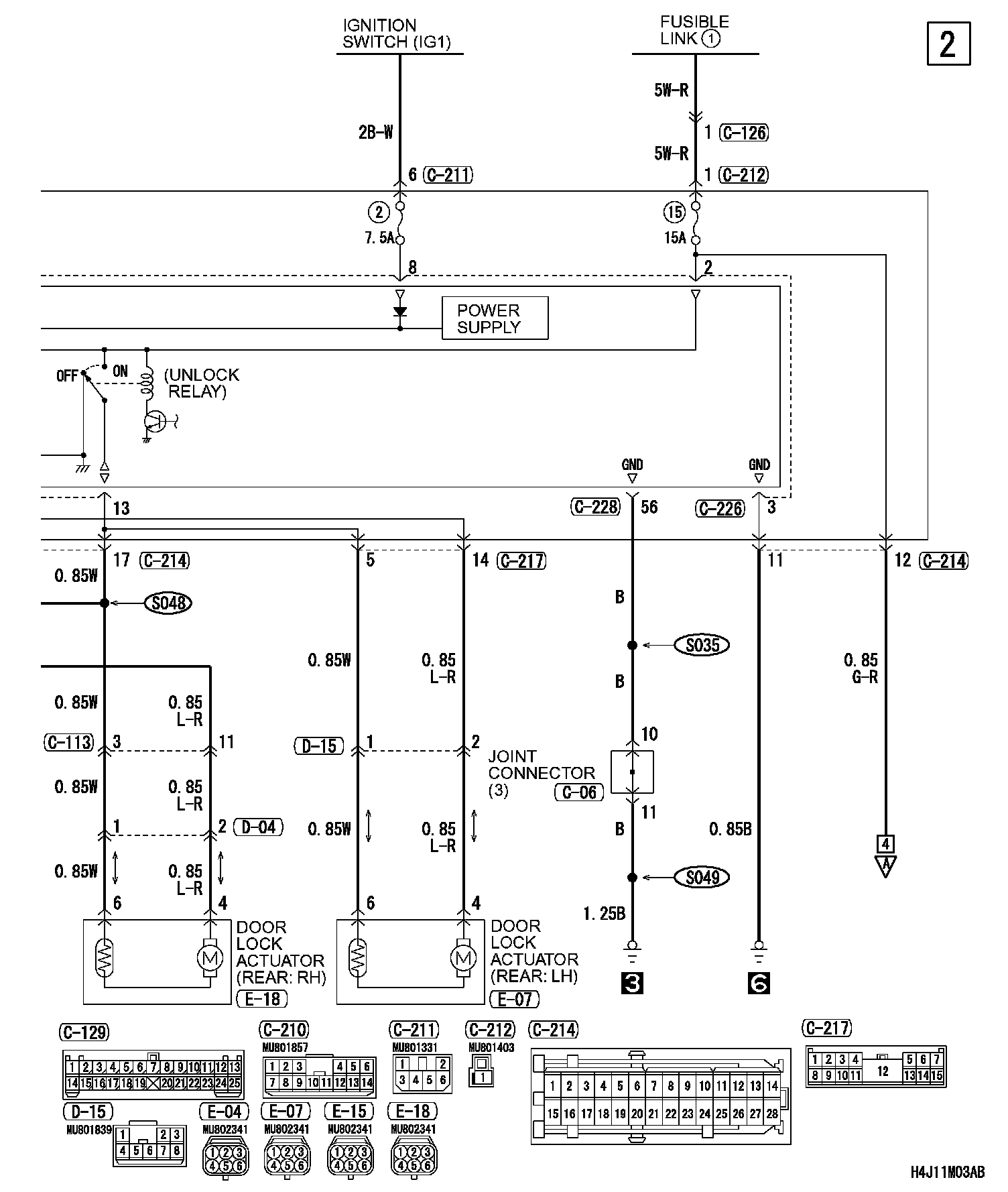

Central Door Locking System (Vehicle Without Keyless Entry System) Part 2:

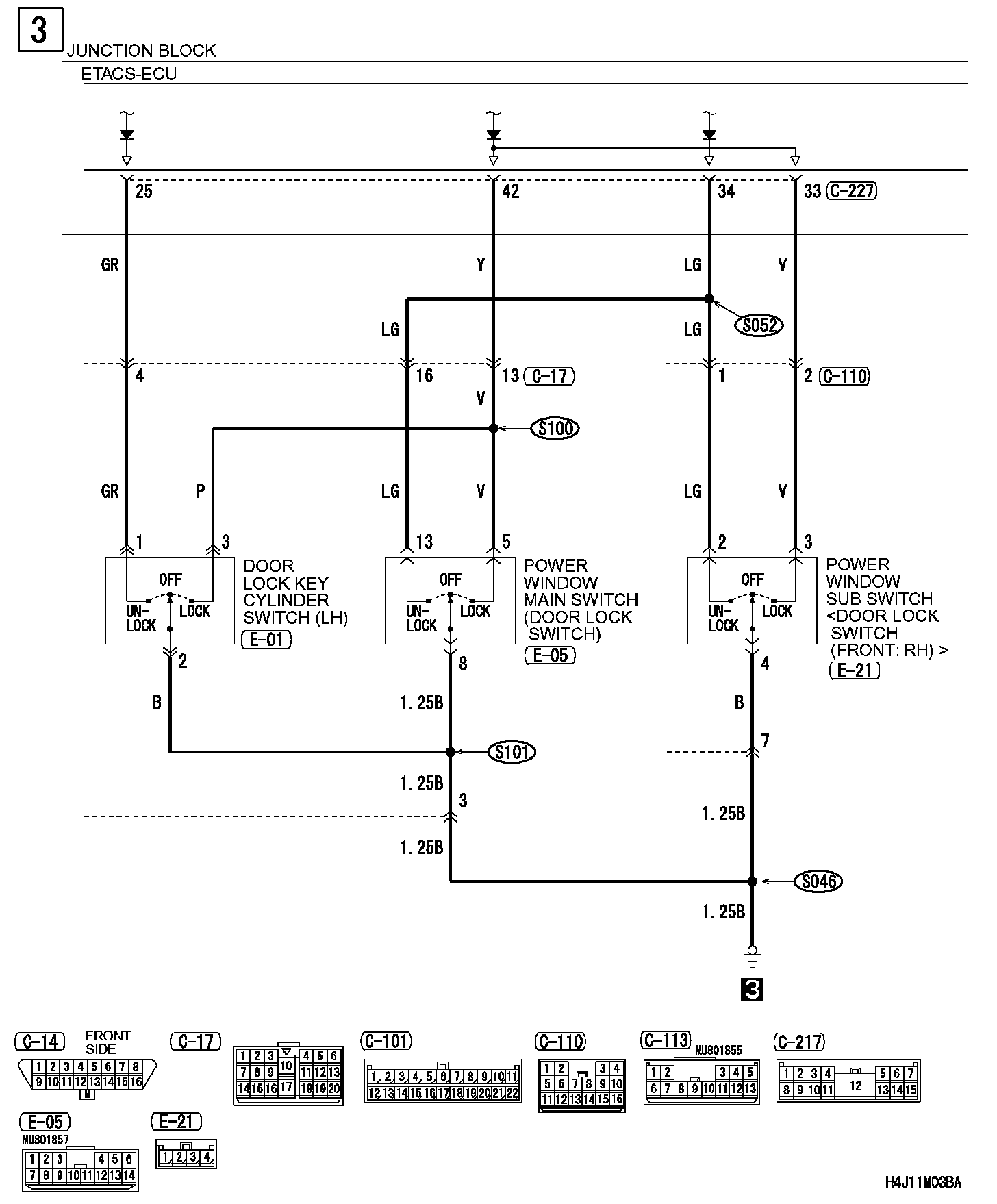

Central Door Locking System (Vehicle Without Keyless Entry System) Part 3:

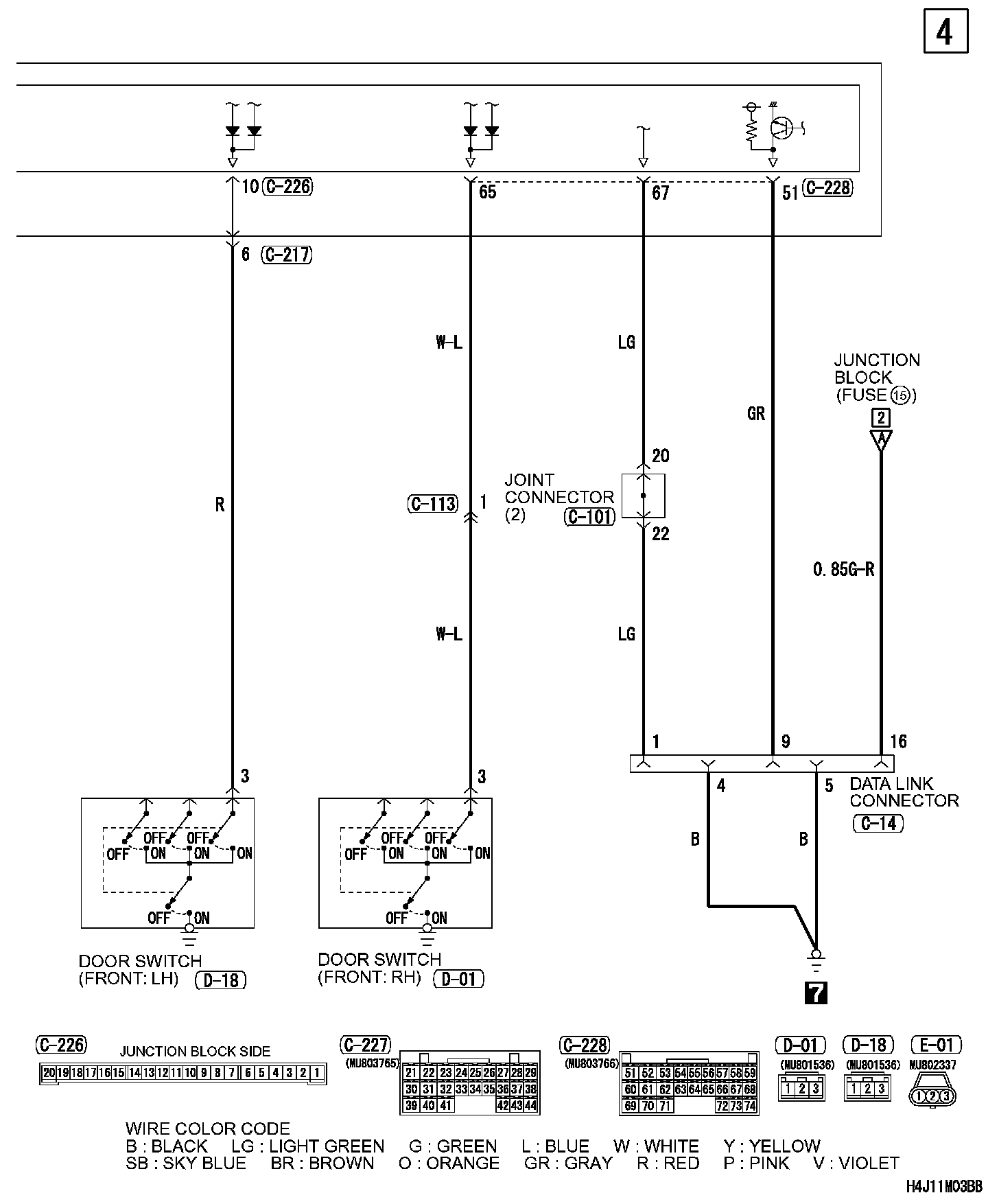

Central Door Locking System (Vehicle Without Keyless Entry System) Part 4:






Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
