Engine Control Module: Testing and Inspection

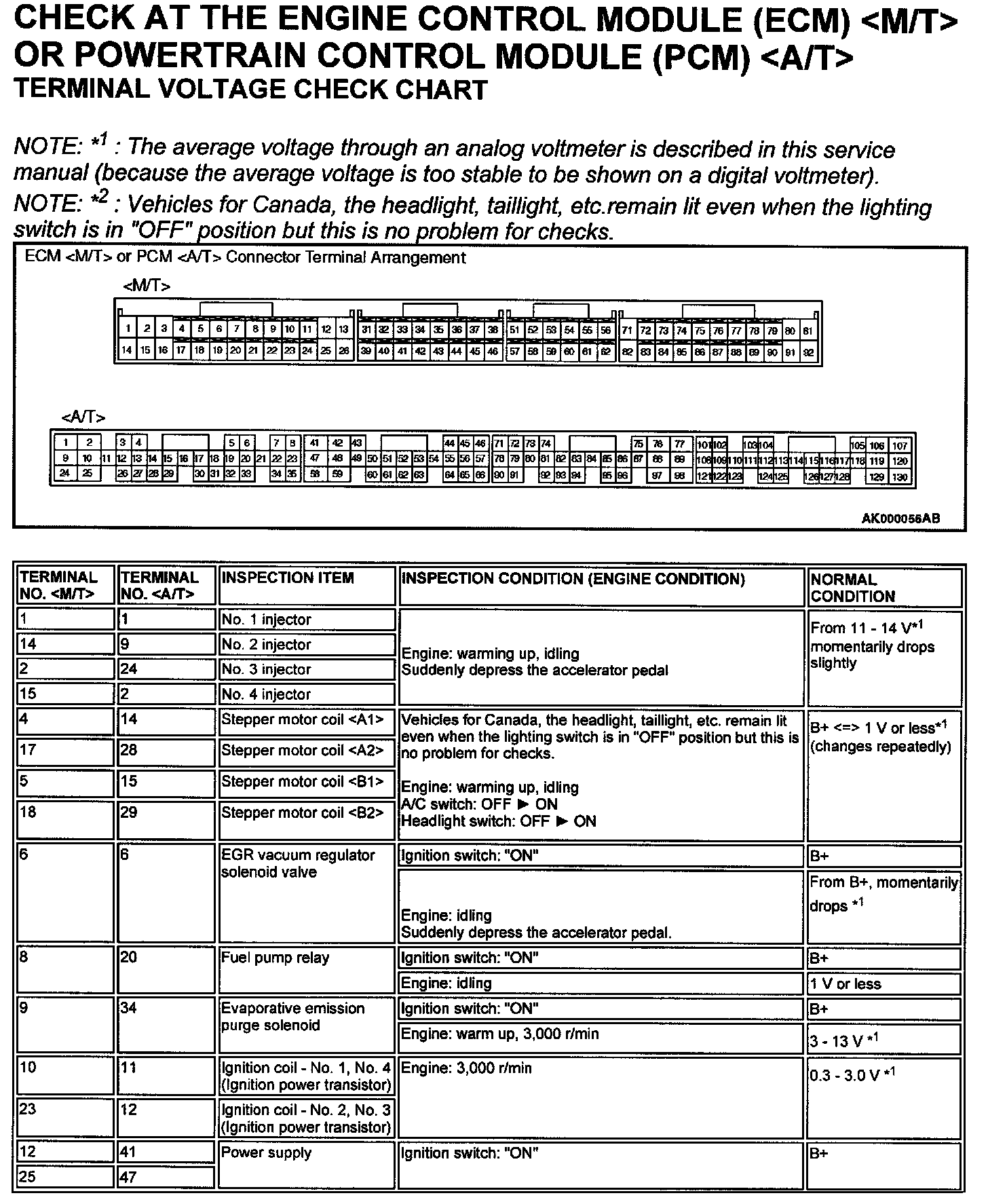

TERMINAL VOLTAGE CHECK CHART

Part 1:

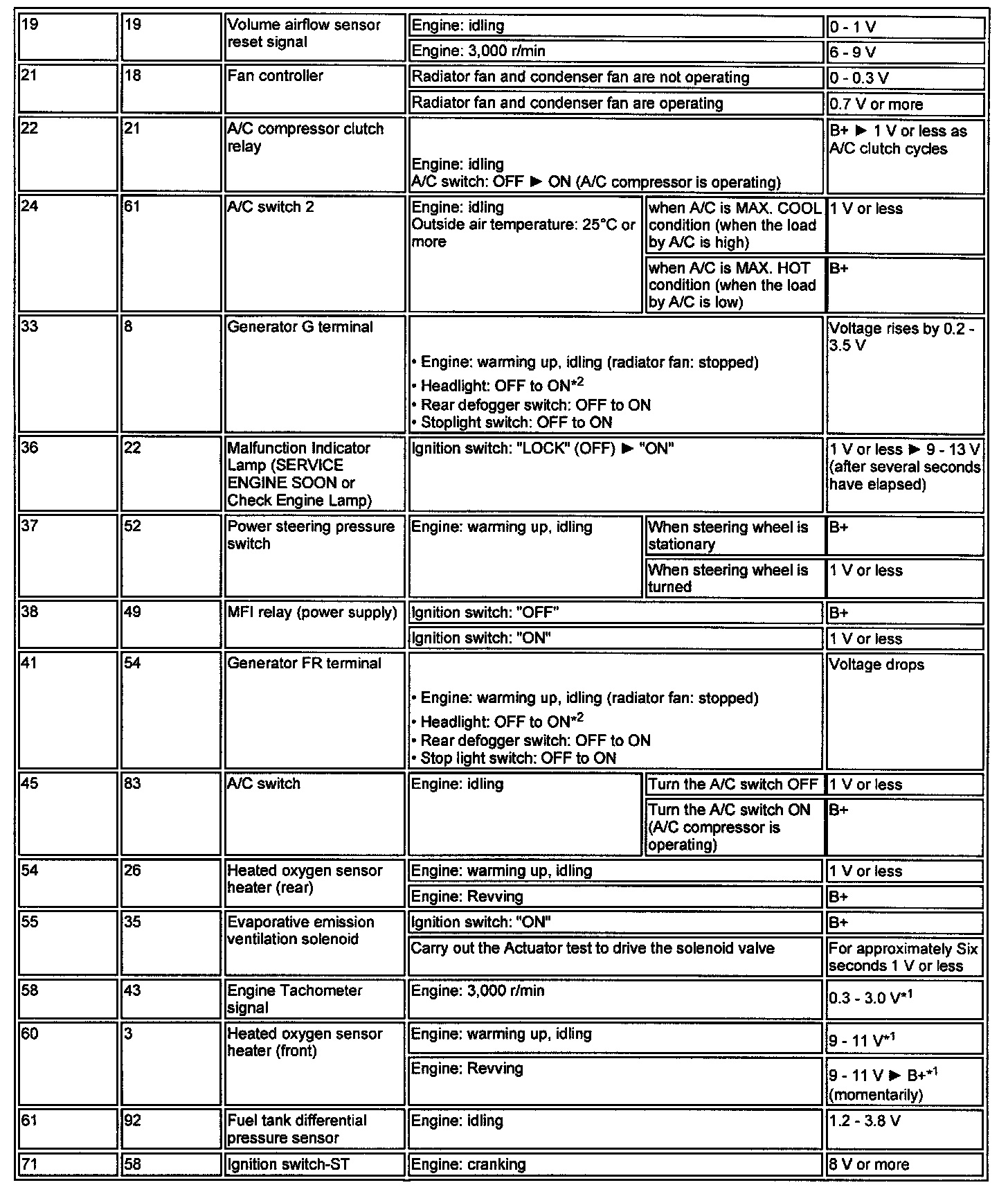

Part 2:

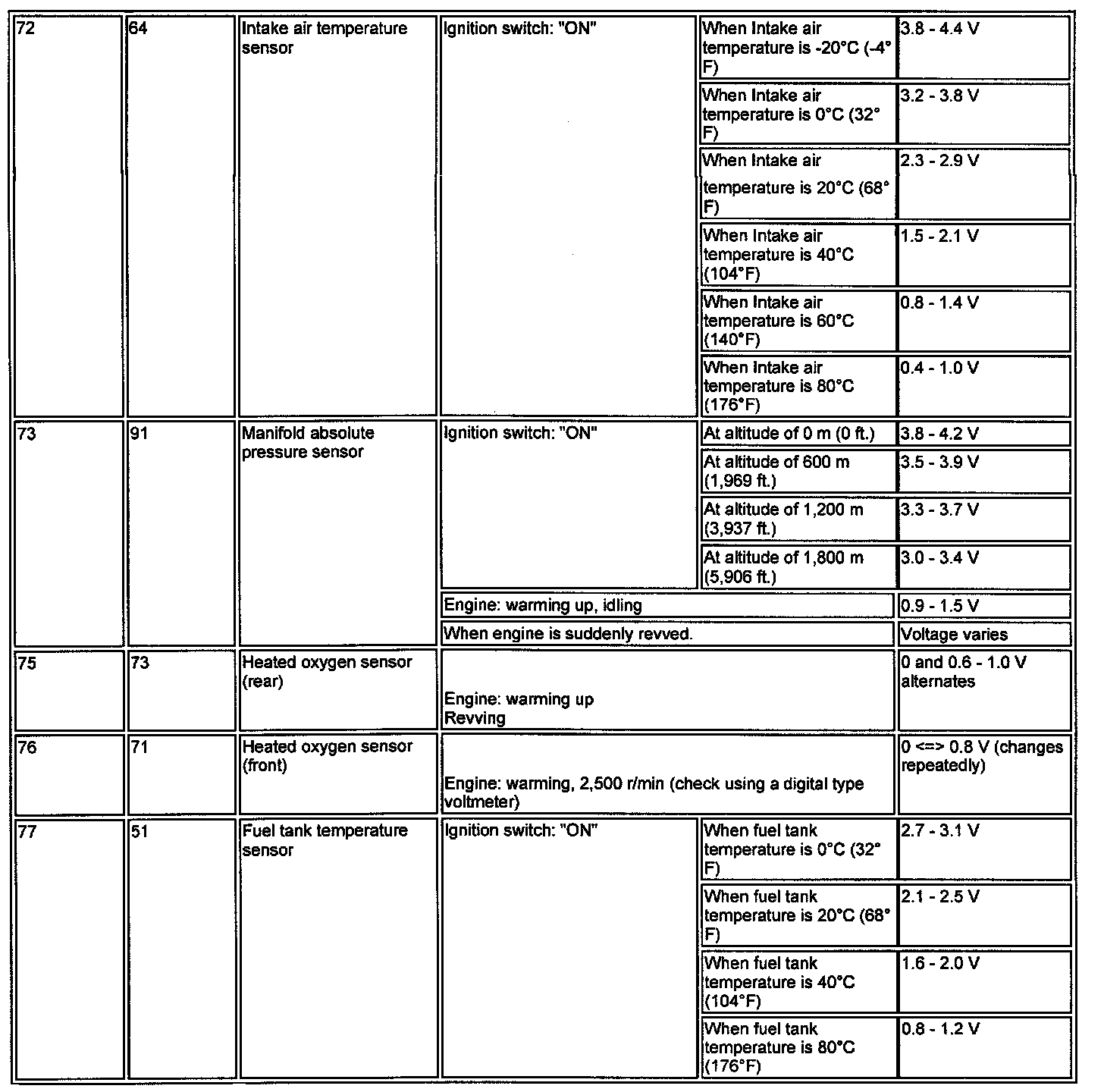

Part 3:

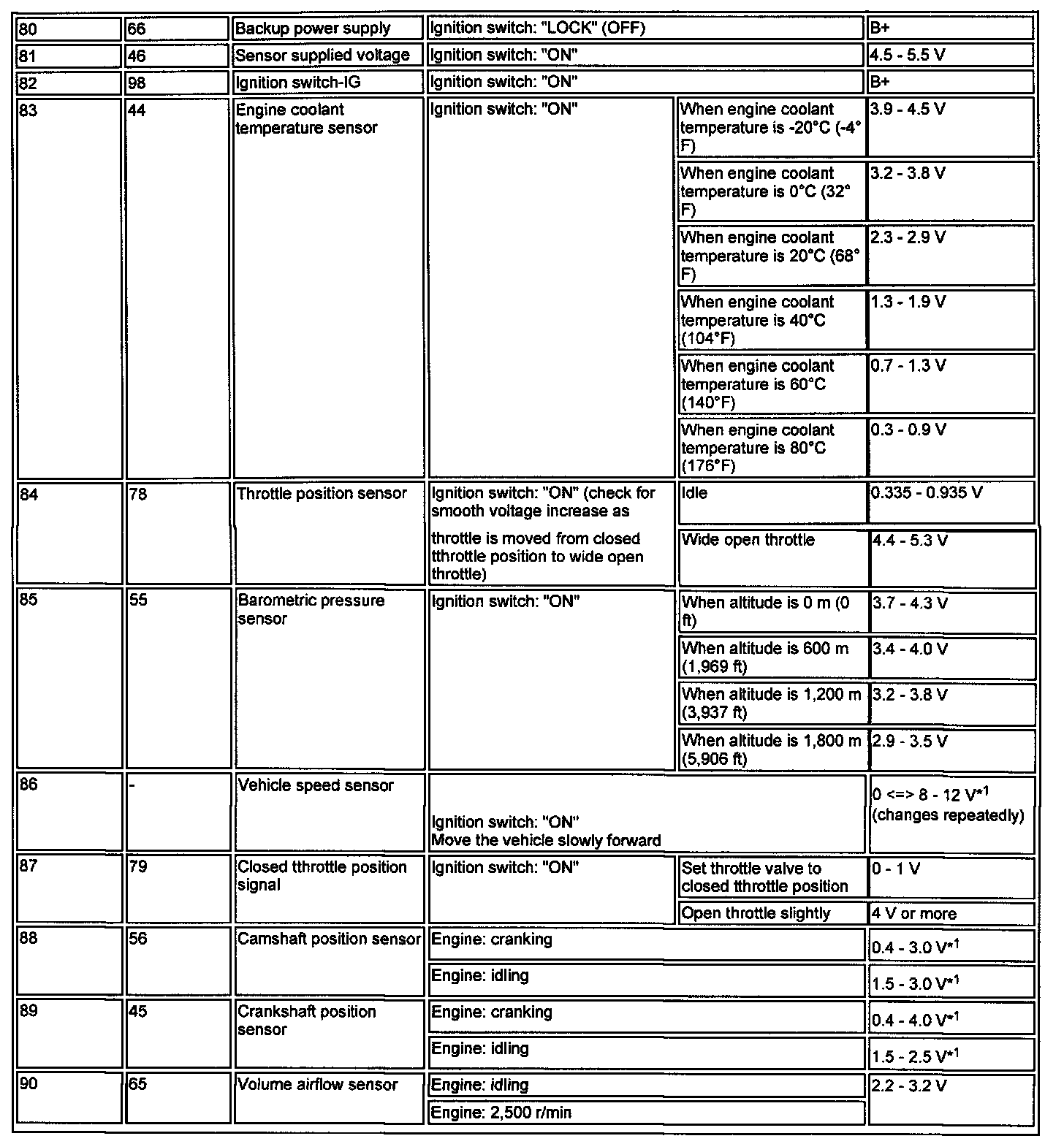

Part 4:

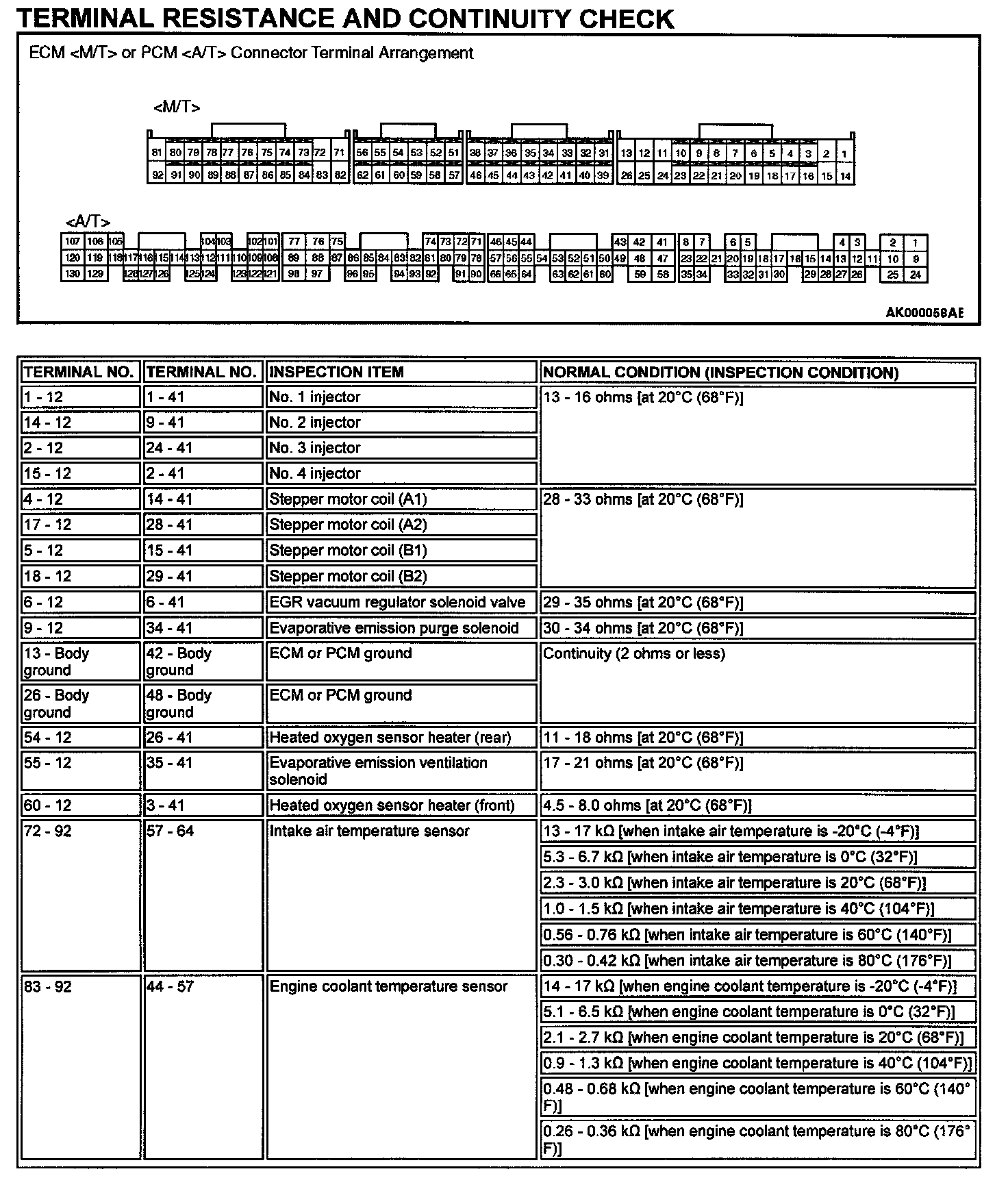

TERMINAL RESISTANCE AND CONTINUITY CHECK
