Accelerator Pedal Position Switch Check

ACCELERATOR PEDAL POSITION SWITCH CHECK




1. Disconnect the accelerator pedal position sensor connector.

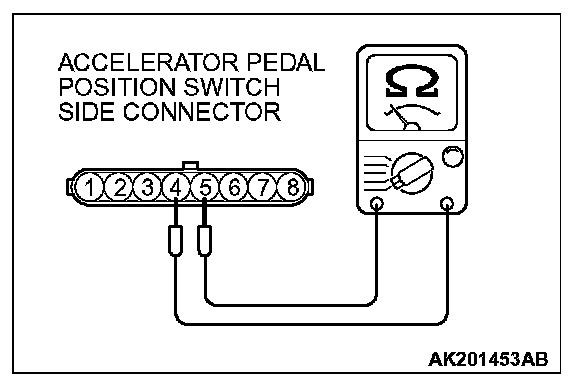

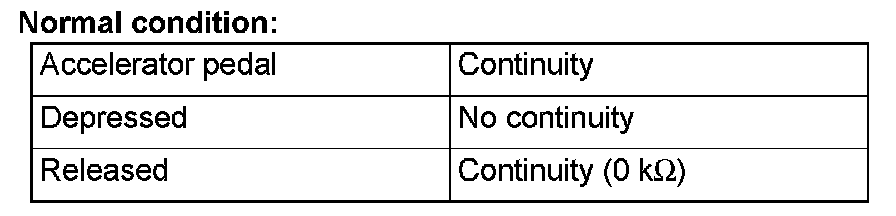

2. Check continuity between terminal No. 4 (accelerator pedal position switch) and No. 5 (sensor earth) of the connector.
3. If defective, replace the accelerator pedal position sensor assembly.

NOTE: After replacement, adjust the accelerator pedal position switch and accelerator pedal position sensor.
