Fail-Safe Function Reference Table

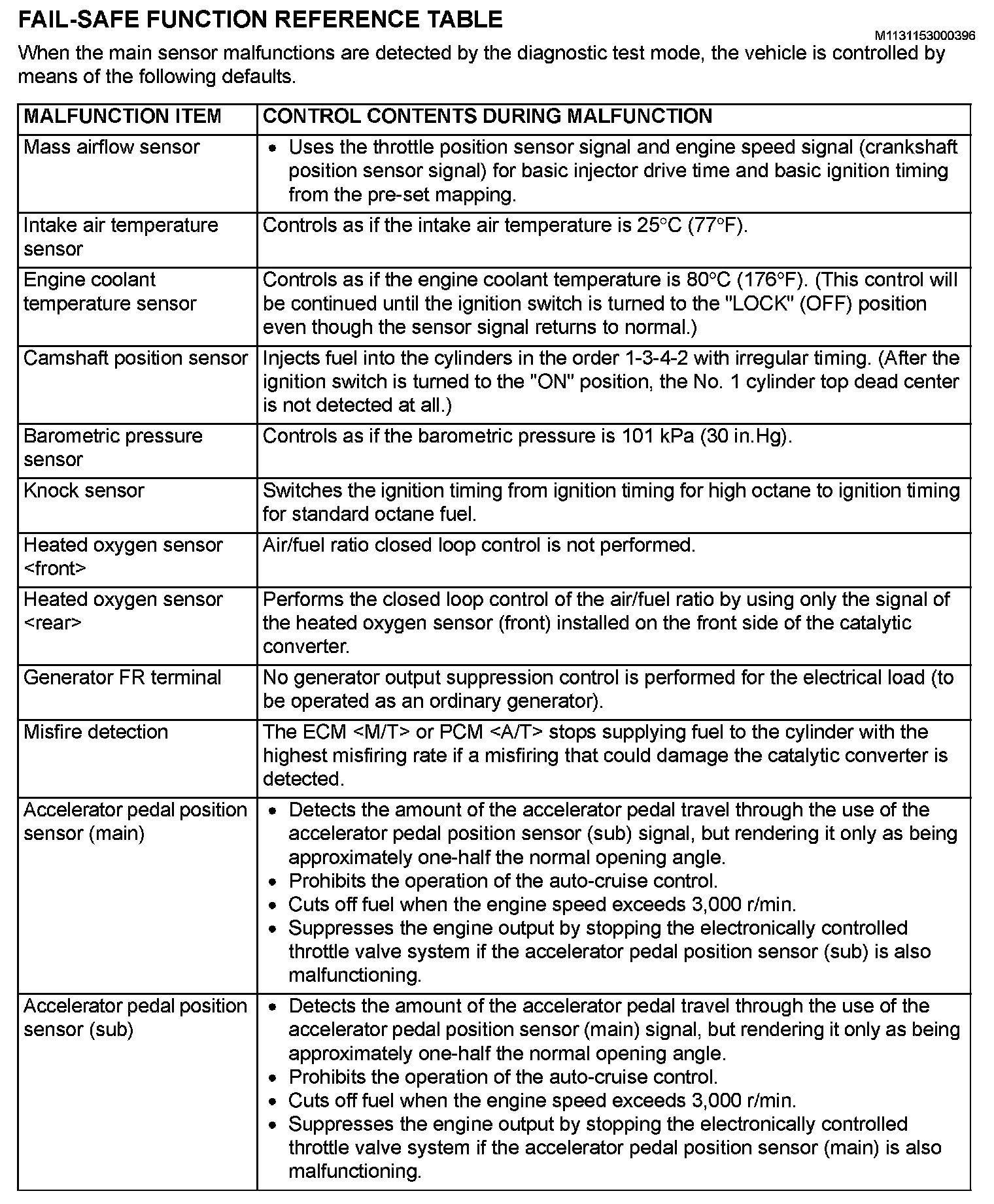

Fail-Safe Function Reference Table Part 1:

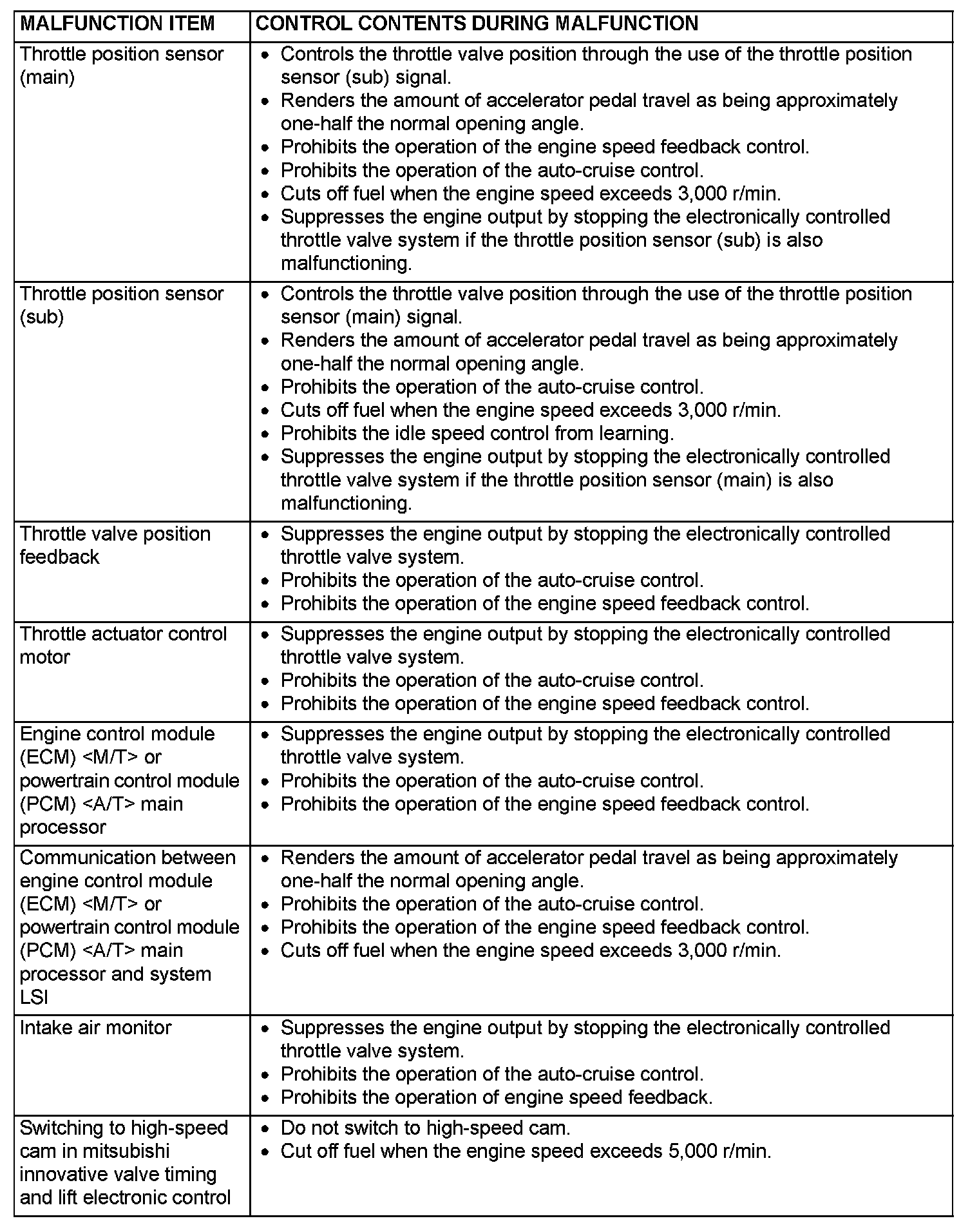

Fail-Safe Function Reference Table Part 2:
