System Specifications

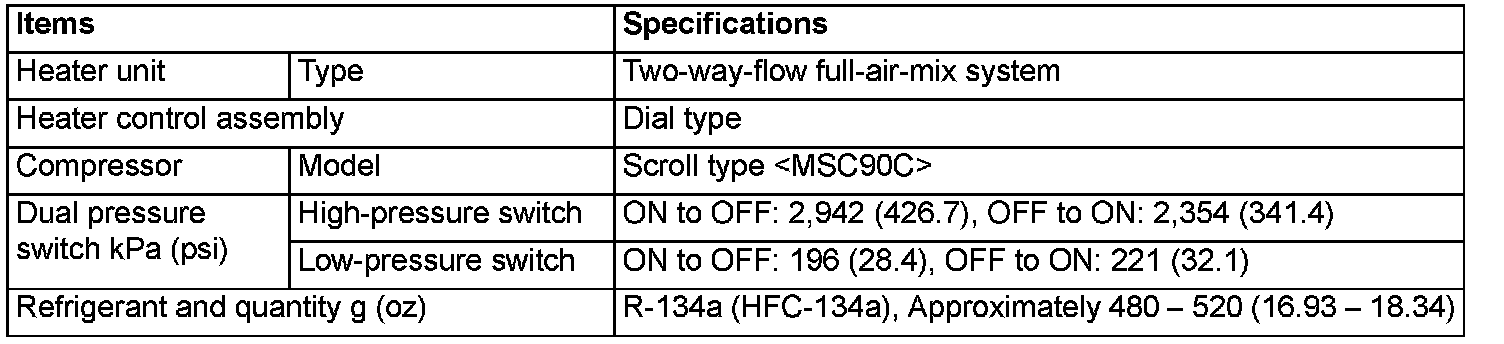

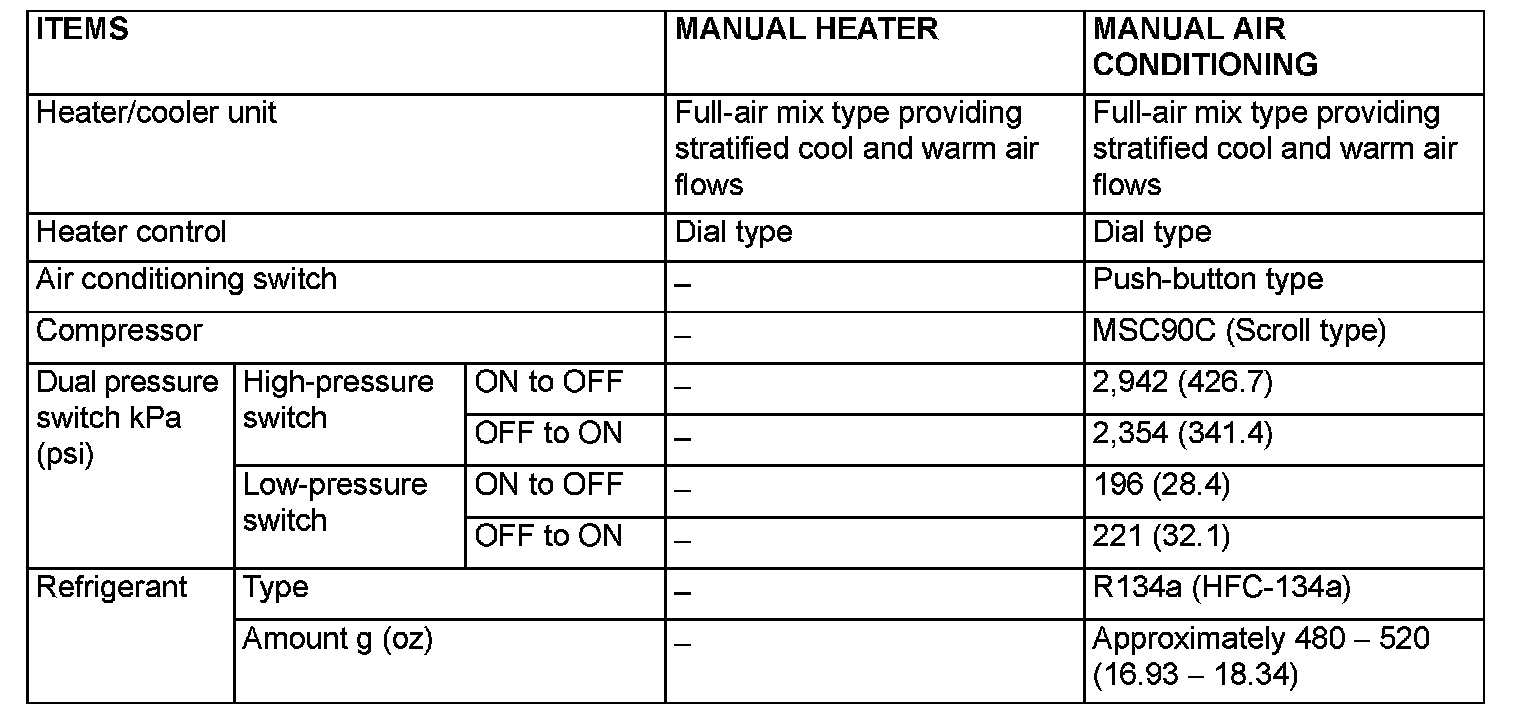

General Specifications:

Fastener Tightening Specifications
ITEM SPECIFICATION
A/C pipe mounting bolt (heater/cooler unit side) 4.9 ± 1.0 Nm (44 ± 8 in-lb)
A/C pipe mounting bolt (condenser side) 4.9 ± 1.0 Nm (44 ± 8 in-lb)
A/C pipe mounting nut (suction hose side) 13 ± 2 Nm (109 ± 21 in-lb)
Discharge hose mounting bolt (compressor side) 25 ± 4 Nm (18 ± 4 ft-lb)
Discharge hose mounting nut (condenser side) 4.9 ± 1.0 Nm (44 ± 8 in-lb)
Suction hose mounting bolt (compressor side) 25 ± 4 Nm (18 ± 4 ft-lb)




Service Specifications
ITEM STANDARD VALUE
Idle speed r/min
1.6L engine 700 ± 100*
2.0L engine 700 ± 100*

Idle-up speed r/min 850 ± 100*

Resistor (for blower motor) Ohm
LO 2.54
ML 1.24
MH 0.6

Air gap (magnetic clutch) mm (in) 0.3 - 0.5 (0.012 - 0.020)

NOTE: The rpm marked by an asterisk should be checked 4 minutes after idling begins.
