<< A >> Dynamic Damper/Damper/Damper Band/ETJ Boot Installation

CAUTION: There should be no grease adhered to the rubber part of the dynamic damper.
  1. Install the dynamic damper in the position (L) shown in the illustration.

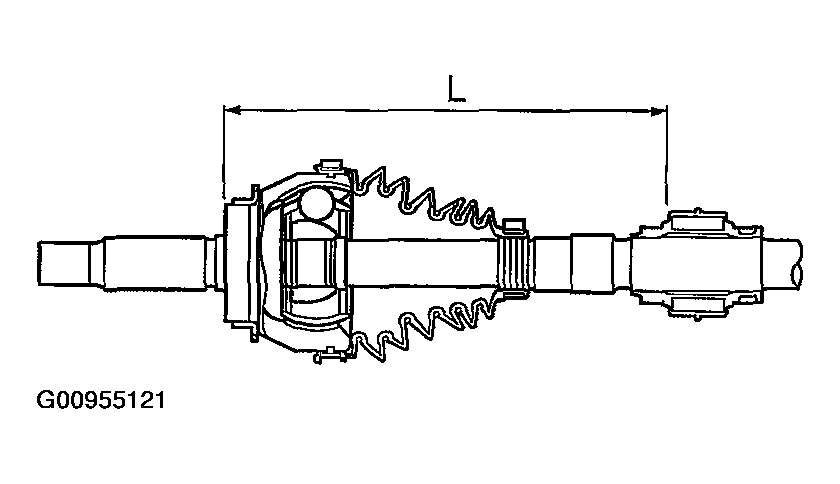

    Fig 1: Positioning Dynamic Damper
    G00955121Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    1. L:230 +/- 3 mm (9.1 +/- 0.12 inches)
  2. Secure the damper bands.
  3. Wrap plastic tape around the shaft spline, and then install the ETJ boot band (small) and ETJ boot.
