<< B >> Spider Assembly Installation
CAUTION:
- The drive shaft joint use special grease. Do not mix old and new or different types of grease.
- If the spider assembly has been cleaned, take special care to apply the specified grease.
- Apply the specified grease furnished in the repair kit to the spider assembly between the spider axle and the roller.
Specified grease: Repair kit grease

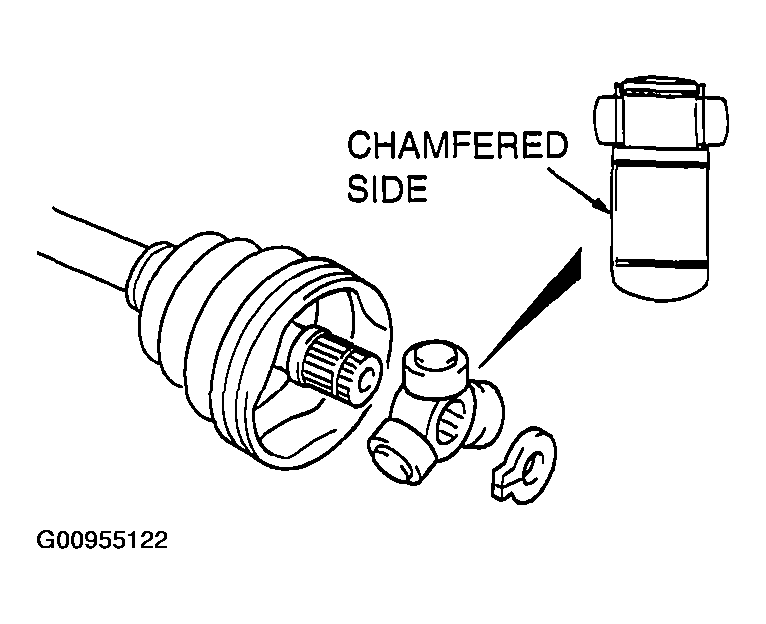

- Install the spider assembly to the shaft from the direction of the spline chamfered side.
