<< B >> Spider Assembly/TJ Case Installation

CAUTION:
  • The driveshaft joint use special grease. Do not mix old and new or different types of grease.
  • If the spider assembly has been cleaned, take special care to apply the specified grease.
  1. Apply the specified grease furnished in the repair kit to the spider assembly between the spider axle and the roller.
    1. Specified grease: Repair kit grease
  2. Install the spider assembly to the shaft from the direction of the spline bevelled section.

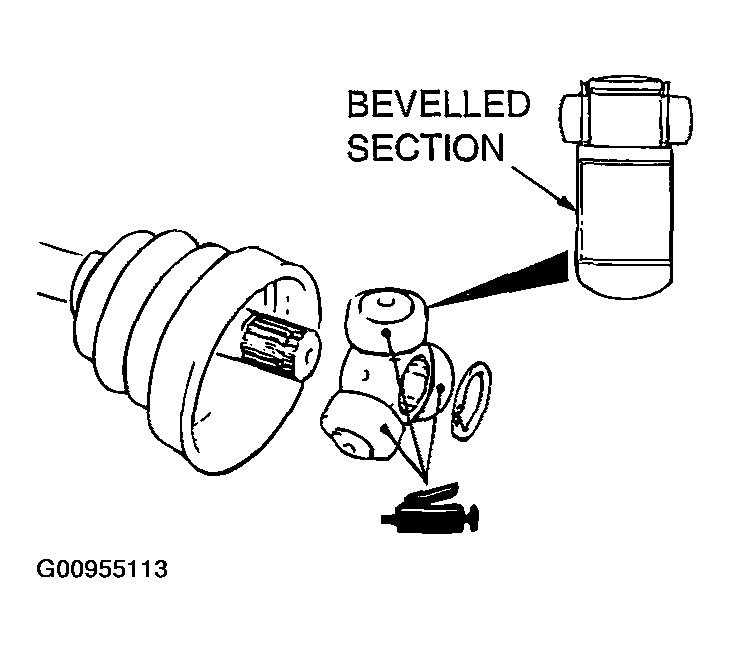

    Fig 1: Installing Spider Assembly
    G00955113Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: he driveshaft joint use special grease. Do not mix old and new or different types of grease.
  3. After applying the specified grease to the TJ. case, insert the driveshaft and apply grease again.
    1. Specified grease: Repair kit grease
    2. Amount to use:
    3. < LL, L > LH: 145 +/- 10 g (5.1 +/- 0.3 oz.), RH: 130 +/- 10 g (4.6 +/- 0.3 oz.)
    4. < M, SPORT > 120 +/- 10 g (4.2 +/- 0.3 oz.)
    NOTE: The grease in the repair kit should be divided in half for use, respectively, at the joint and inside the boot.

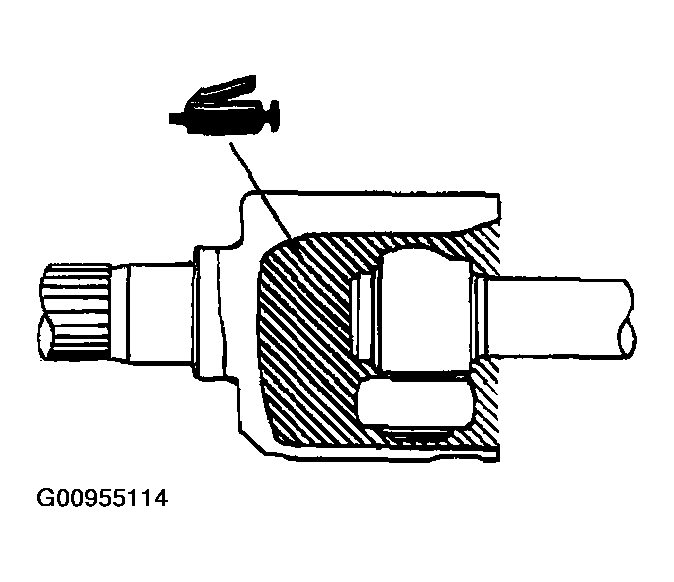

    Fig 2: Locating Greasing Point
    G00955114Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
