<< C >> TJ Boot Band (Small)/TJ Boot Band (Large) Installation

Set the TJ. boot bands at the specified distance in order to adjust the amount of air inside the TJ. boot, and then tighten the TJ. boot bands securely.

  1. Standard value (A): 85 +/- 3 mm (3.3 +/- 0.12 in)

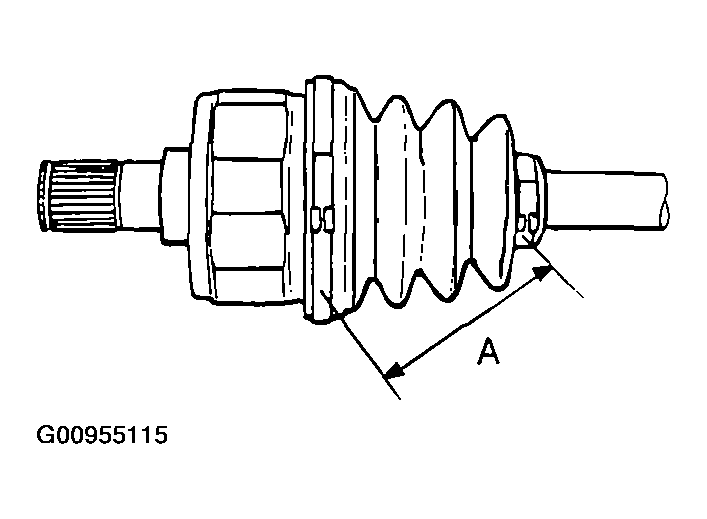

Fig 1: Measuring Boot Band Distance
G00955115Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
