<< A >> Hub Removal

CAUTION: When the hub has been removed, always replace the wheel bearing with a new part because wheel bearing frictional surface will be damaged when removing the hub.

Use special tools MB991017, MB991056 or MB991355, MB991000 to pull out the hub from the knuckle.

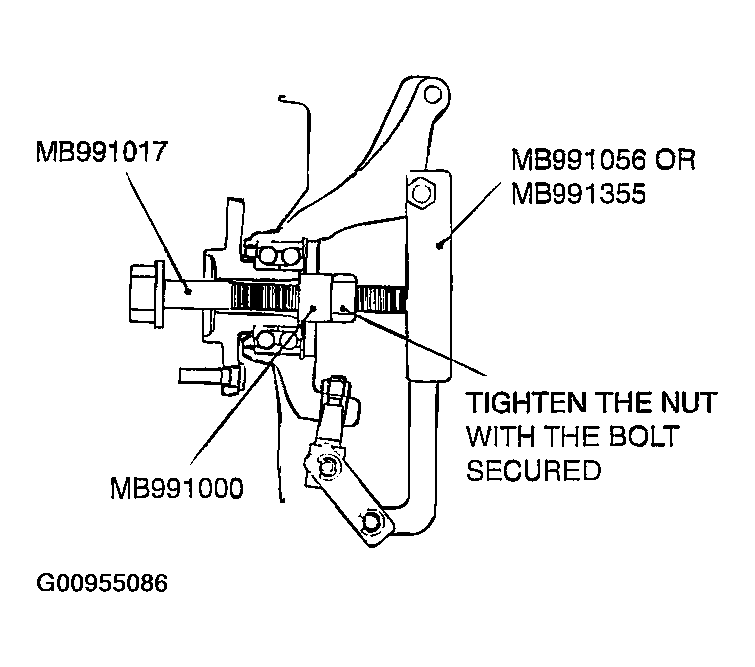

Fig 1: Removing Hub
G00955086Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
