INSPECTION PROCEDURE 1: Speedometer does not Work. < A/T >: Notes

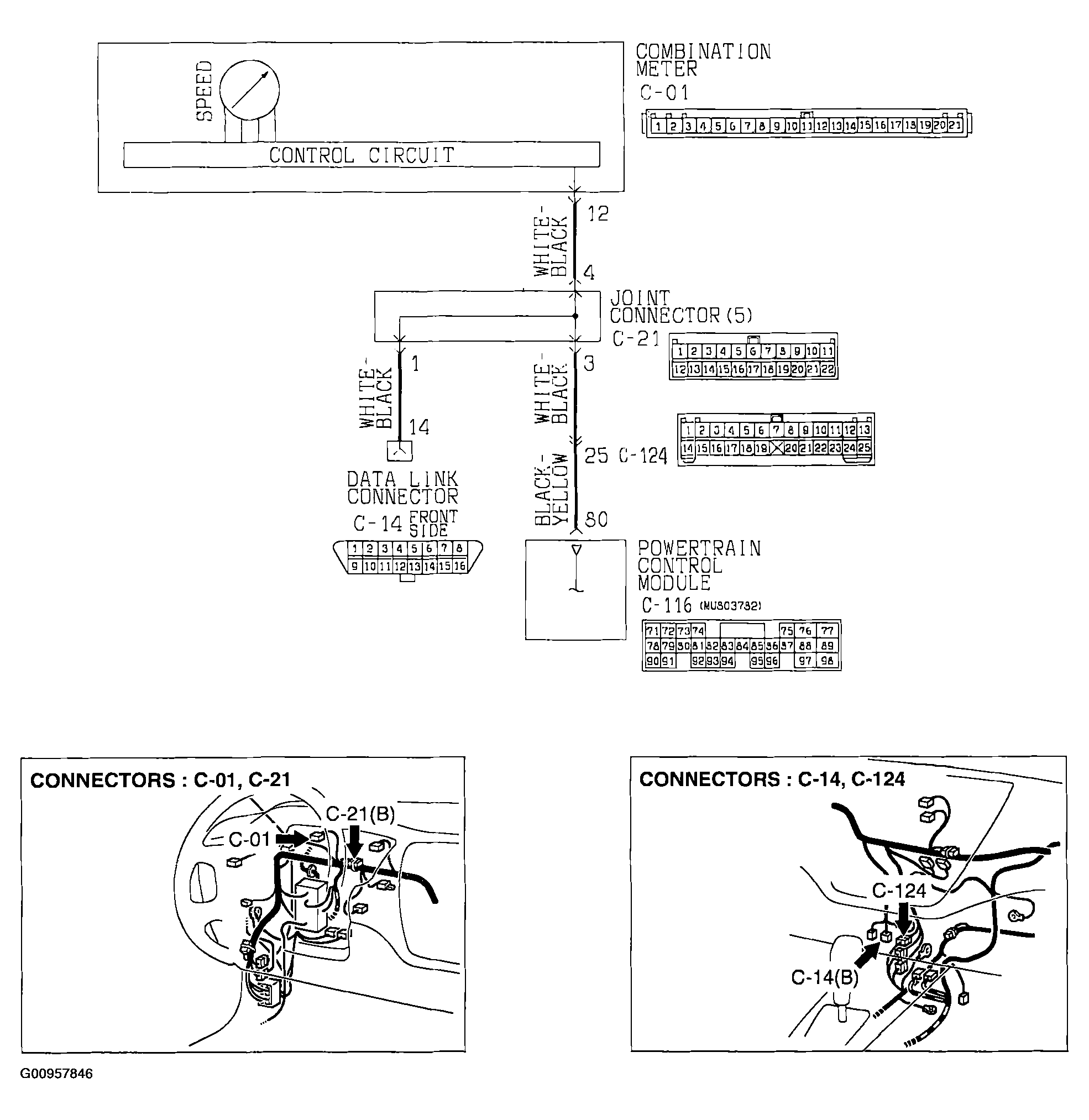

Fig 1: View Of Speedometer Circuit - A/T

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

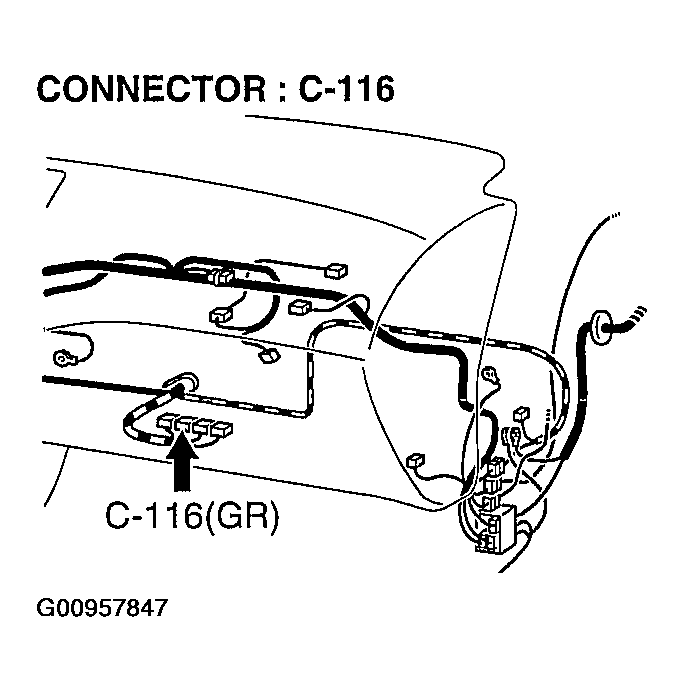

Fig 2: Identifying Connector C-116

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
