DIASSEMBLY And Assembly: Notes

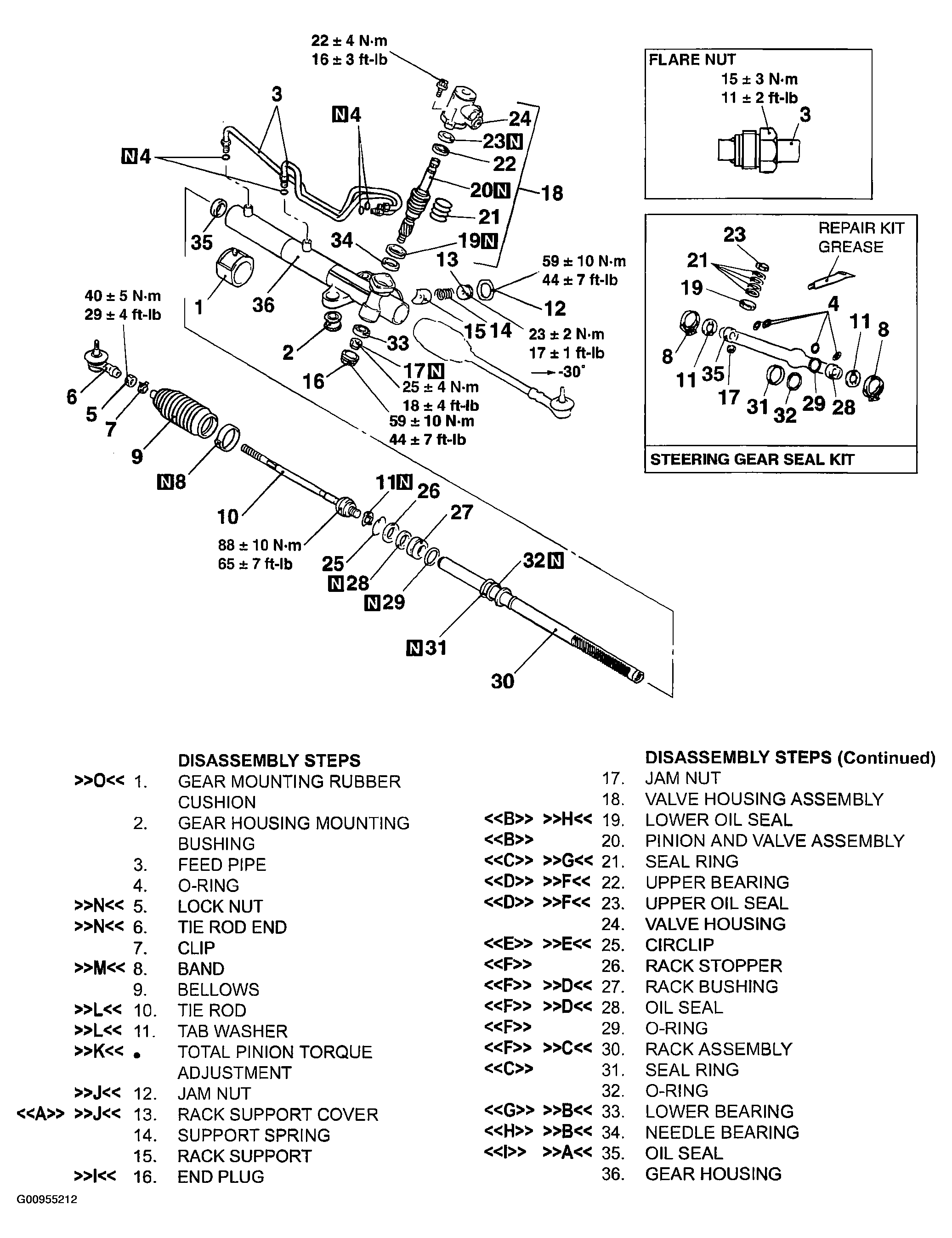

Fig 1: Dissembling And Assembling Power Steering Gearbox And Linkage

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990776: Front Axle Base
• MB990927: Installer Adapter
• MB990938: Bar (Snap-in type)
• MB990939: Brass Bar
• MB990941: Torque Tube Bearing Installer
• MB991006: Preload Socket
• MB991120: Needle Bearing Puller
• MB991152: Dust Cover installer
• MB991197: Bar (Long type)
• MB991199: Oil Seal Installer
• MB991202: Oil Seal and Bearing Installer
• MB991203: Oil Seal and Bearing Installer
• MB991204: Torque Wrench Socket
• MB991212: Rack Installer
• MB991317: Seal Ring Installer
• MB991561: Boot Band Crimping Tool
• MB991621: Piston Driver
