>> B << Engine Front Mounting Bracket And Cushion Stoppers Assembly Installation

WARNING: This page is about a different variant/trim than selected.

Arrow marks on the engine front mounting cushion stopper should face the direction shown in illustration.
NOTE: Disregard F and R stamped as a shared part.
Place a garage jack against the engine oil pan with a piece of wood in between. Install the engine front mounting bracket and cushion stoppers while adjusting the position of the engine.
Support the engine assembly with a garage jack.
Remove the chain block.
Use the following special tool as during removal to support the engine.
1. < Engine lifter (special tool MZ203827) is used >
  Set special tool MZ203827.

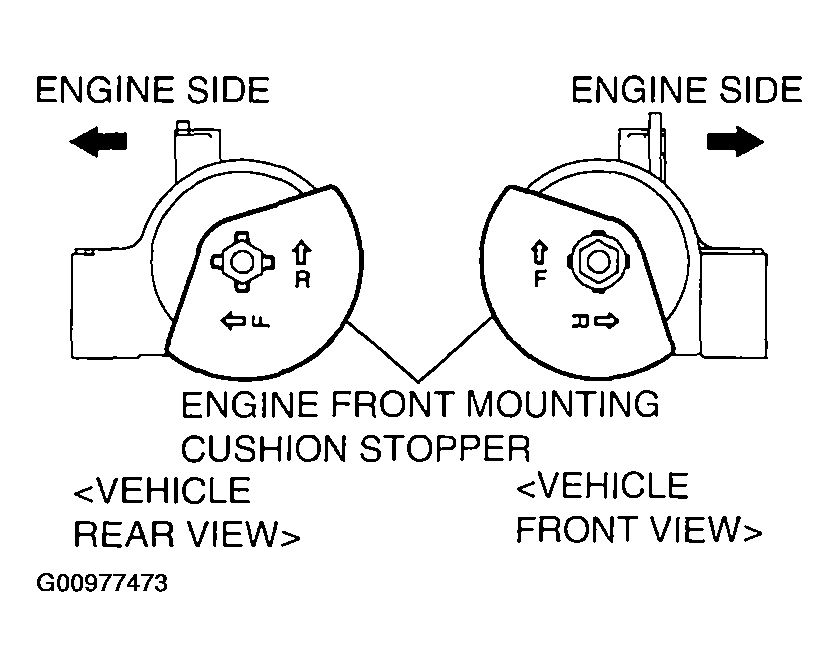

  Fig 1: Identifying Arrow Marks On Engine Front Mounting Cushion Stopper
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

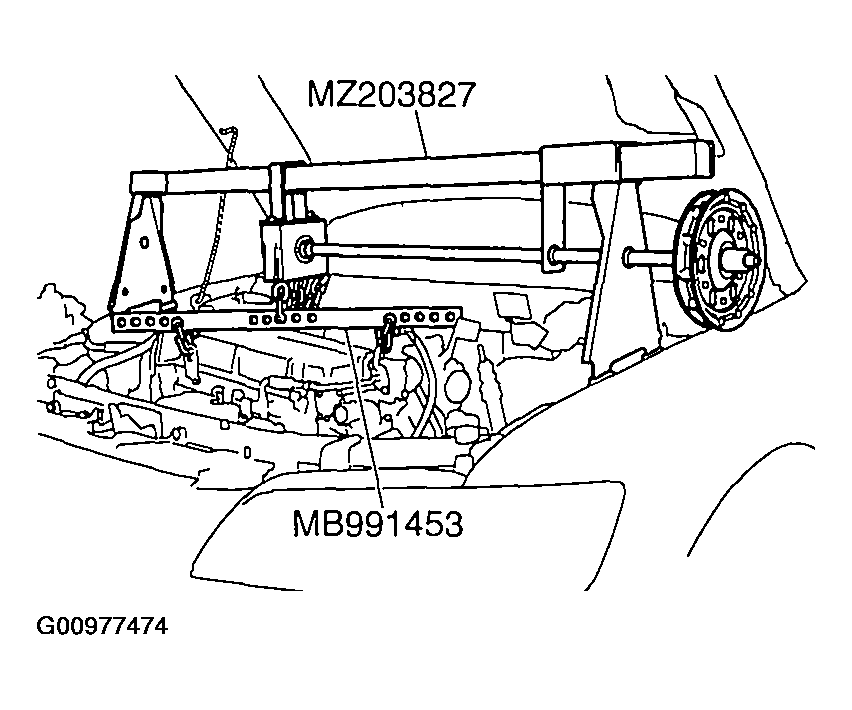

  Fig 2: Supporting Engine Assembly With Engine Lifter
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. < Engine hanger (special tool MB991895) is used >
  Set special tool MB991895.

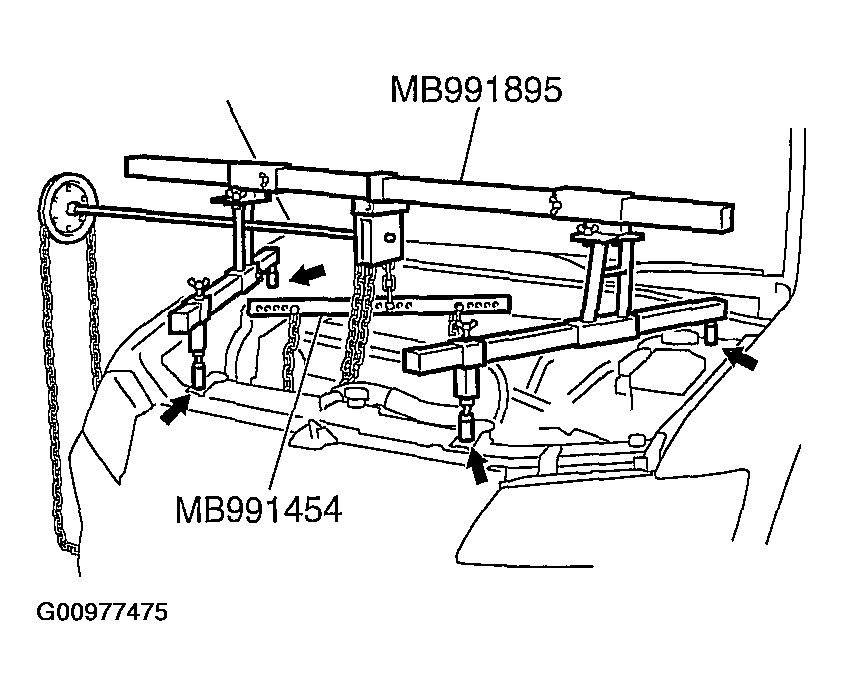

  Fig 3: View Of Special Tools MB991895
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. < Engine hanger (special tool MB991928) is used >
  1. Set the following parts to the base hanger.
    - Slide bracket (HI)
    - Foot (standard) (MB991932)
    - Joint (90) (MB991930)

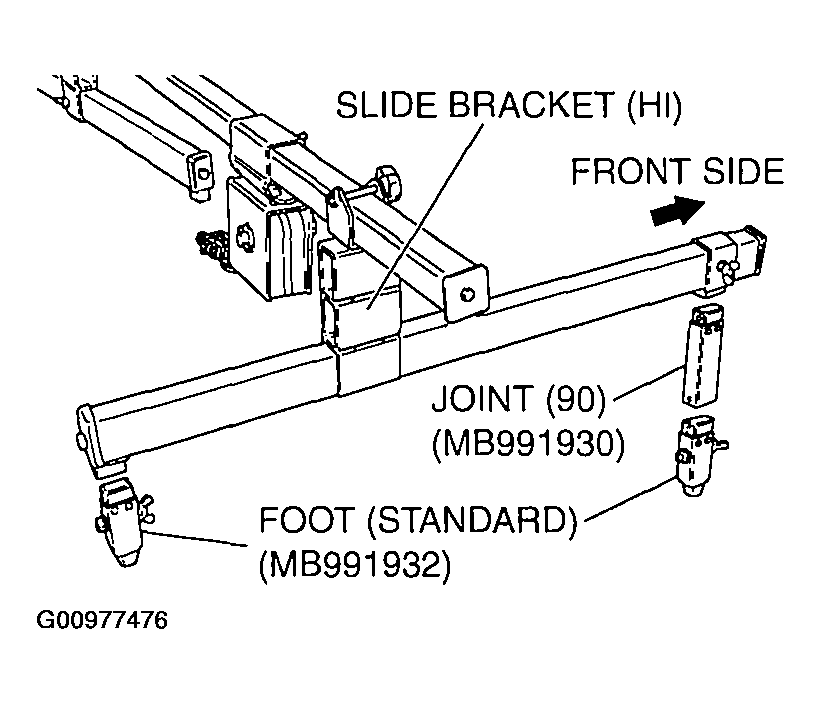

    Fig 4: Identifying Engine Hanger
    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Set special tool MB991928.

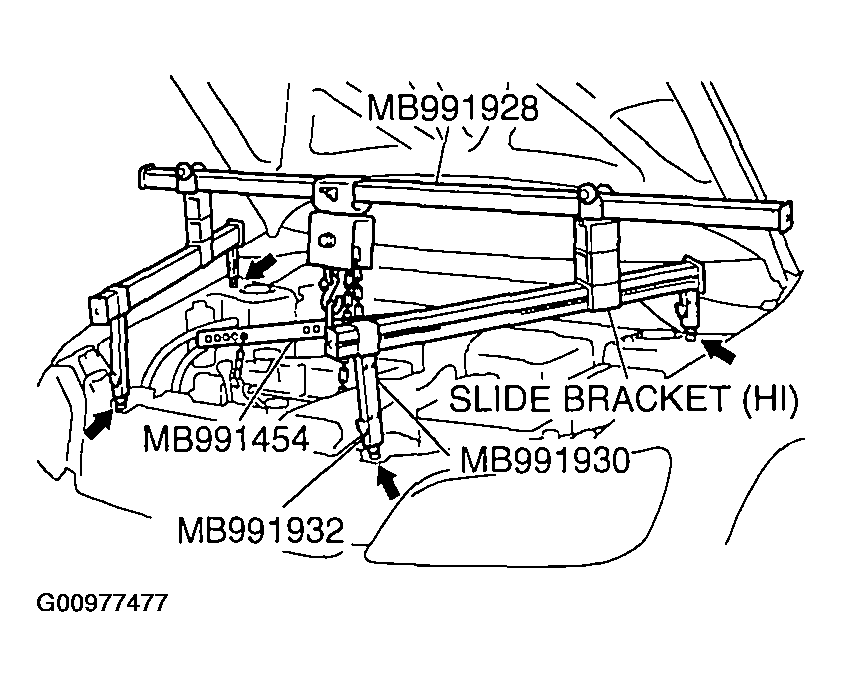

  Fig 5: View Of Special Tool MB991928
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
