How To Read Data List
WARNING: This page is about a different variant/trim than selected.
Required Special Tools:
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: MUT-III USB Cable
- MB991911: MUT-III Main Harness B
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

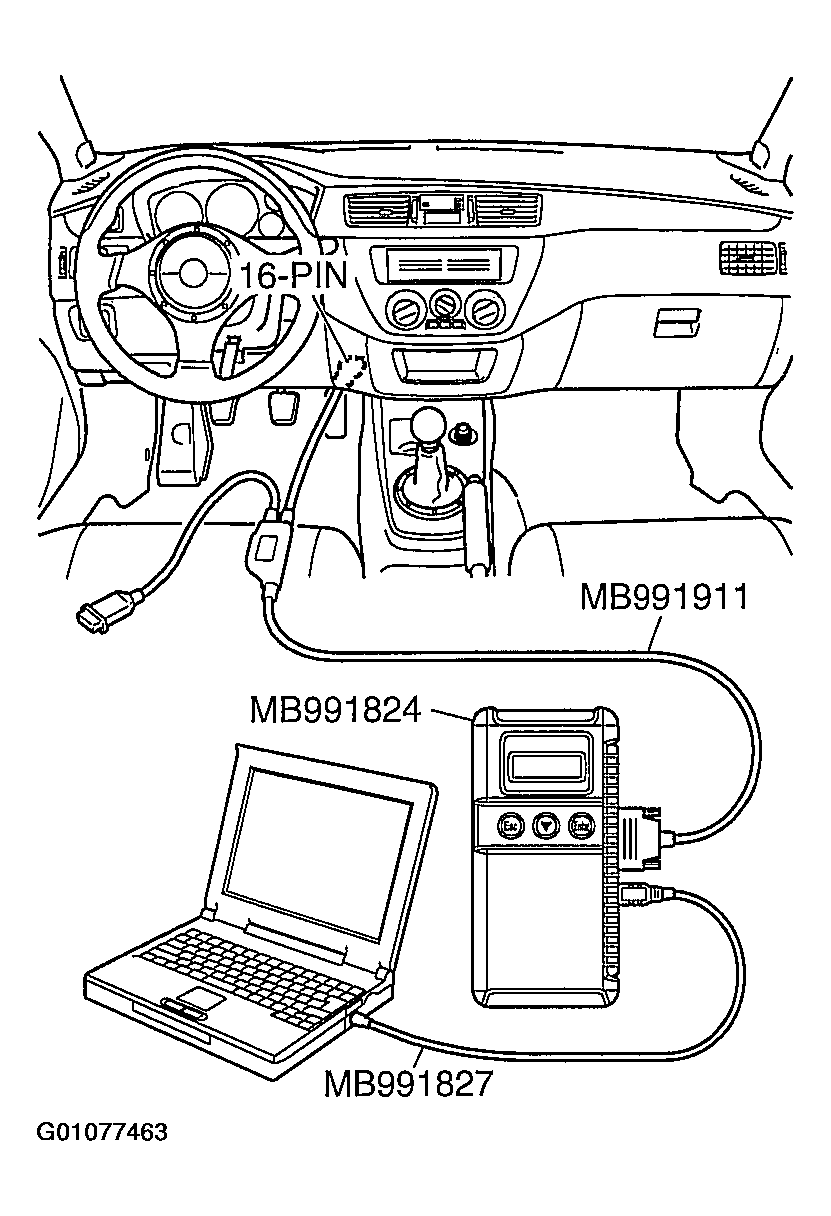

- Connect scan tool MB991958 to the data link connector.
- Turn the ignition switch to "ON" position.
- Select "Interactive Diagnosis" from the start-up screen.
- Select "System select."
- Choose "IMMOBILIZER" from the "POWER TRAIN" tab.
- Select "MITAUBISHI".
- Select "Data List."
- Choose an appropriate item and select the "OK" button refer to "TRANSPONDER LOCK CHECK ".
