Disassembly And Assembly

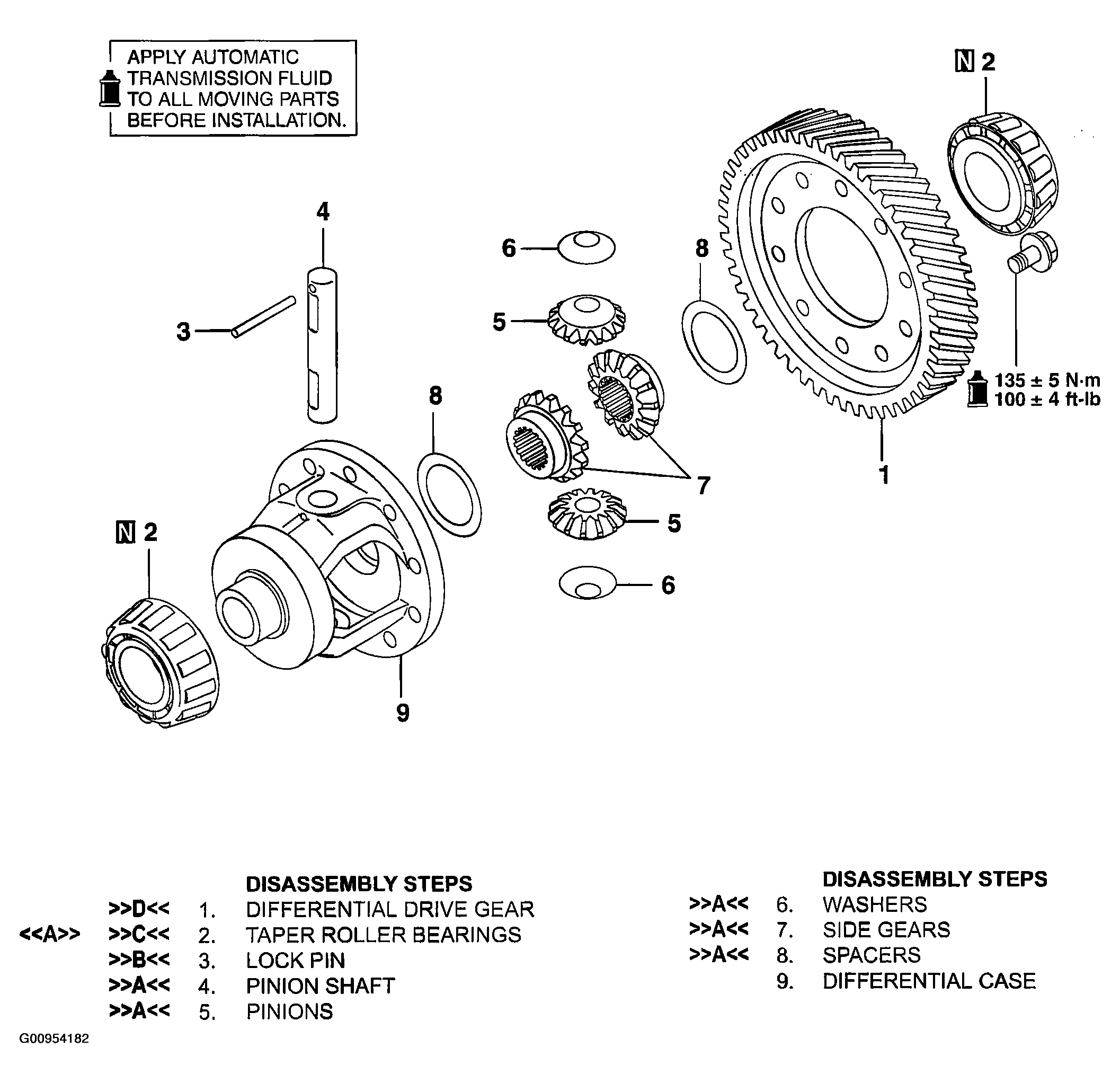

Fig 1: Exploded View Of Differential Components
G00954182Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
