Disassembly And Assembly

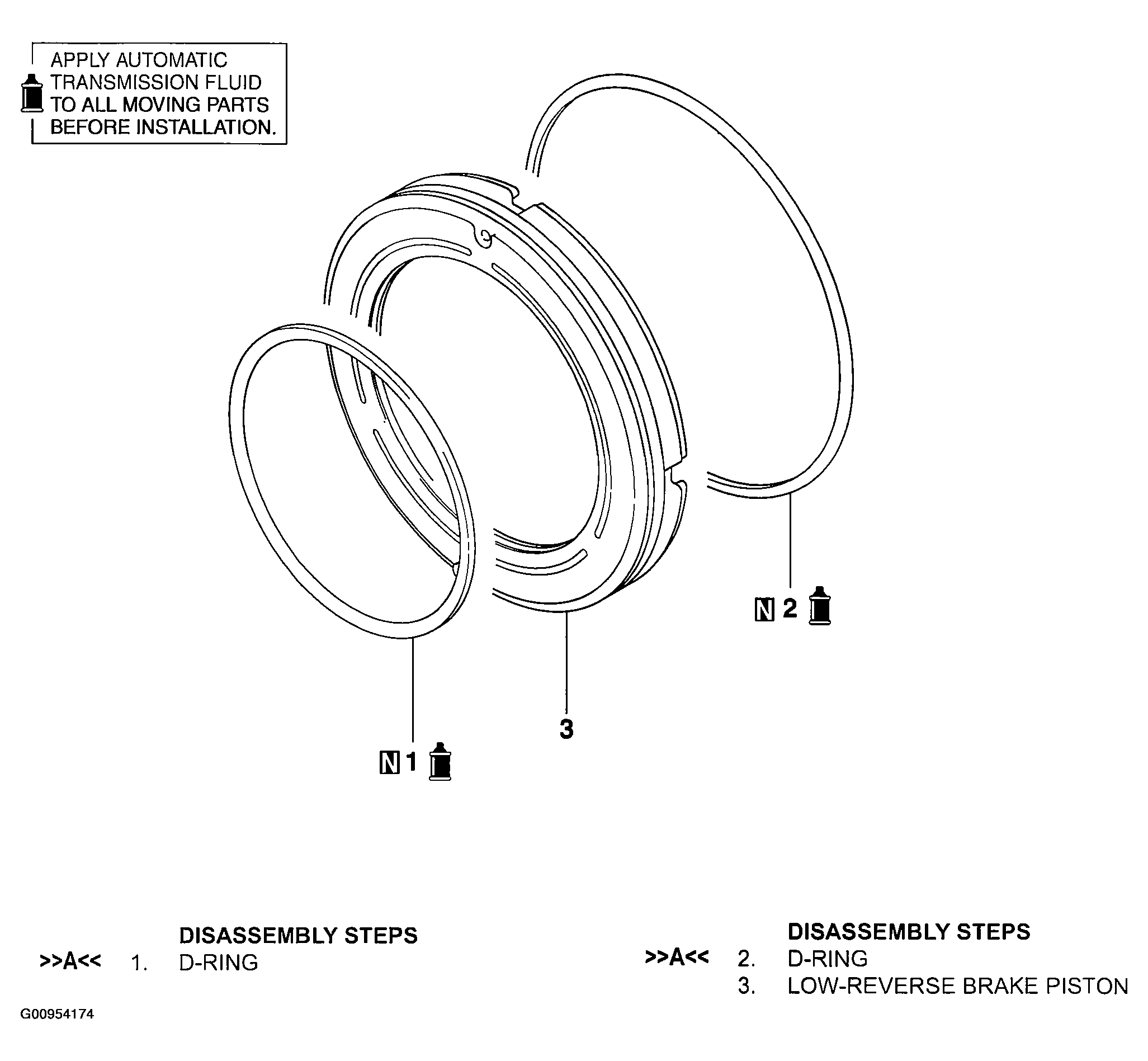

Fig 1: Identifying Low-Reverse Brake Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
