Exploded Views

BODY CONSTRUCTION CHARACTERISTICS

FRONT BODY

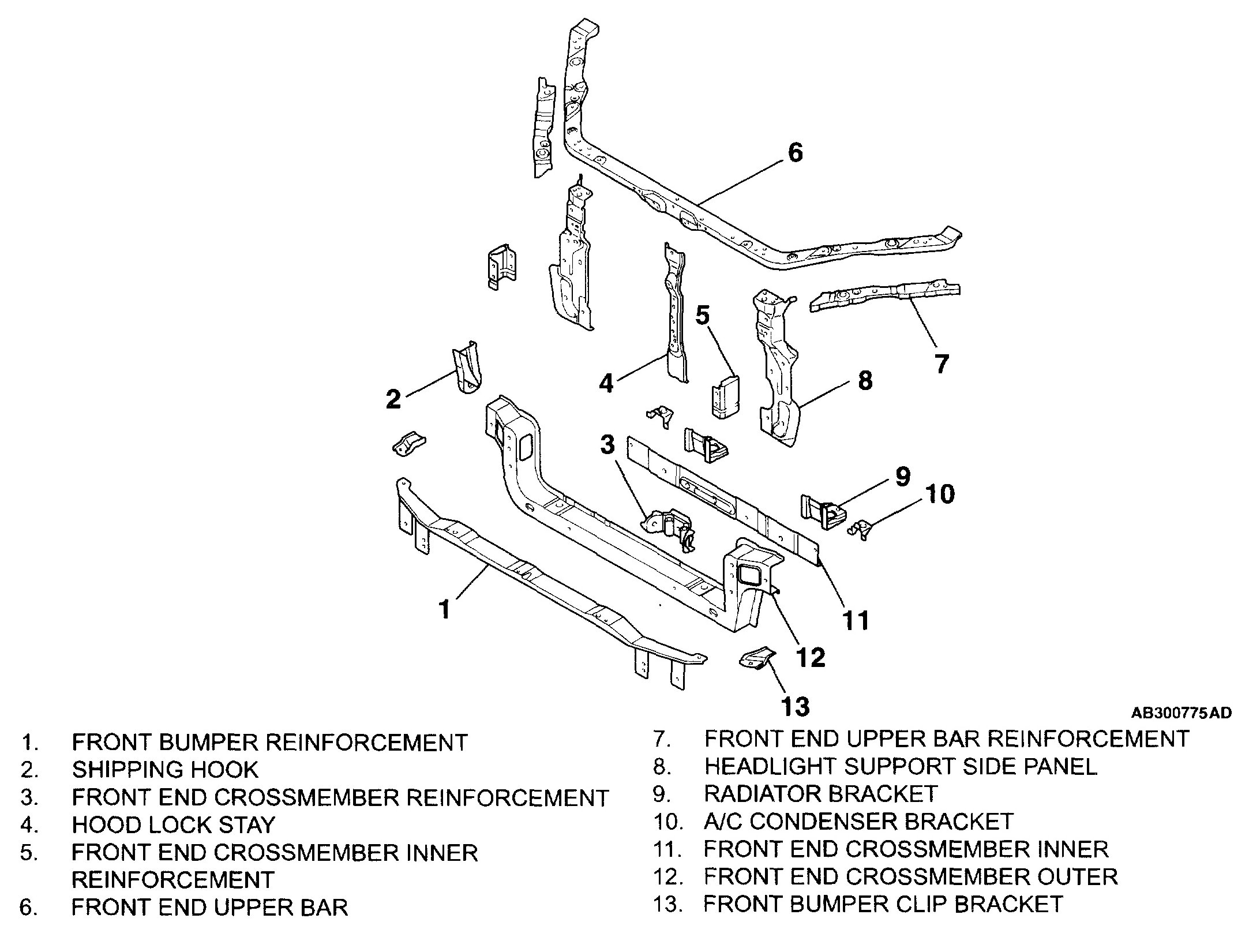

HEADLIGHT SUPPORT




An uneven-thickness steel sheet* in which the sheet thickness is thicker on the shipping hook assembling side was employed for the front end crossmember outer to ensure rigidity of the shipping hook assembling area and to provide lightweightness.

NOTE: *: Steel plates with different thickness welded together to make one steel plate.
