Cruise Control Module: Testing and Inspection

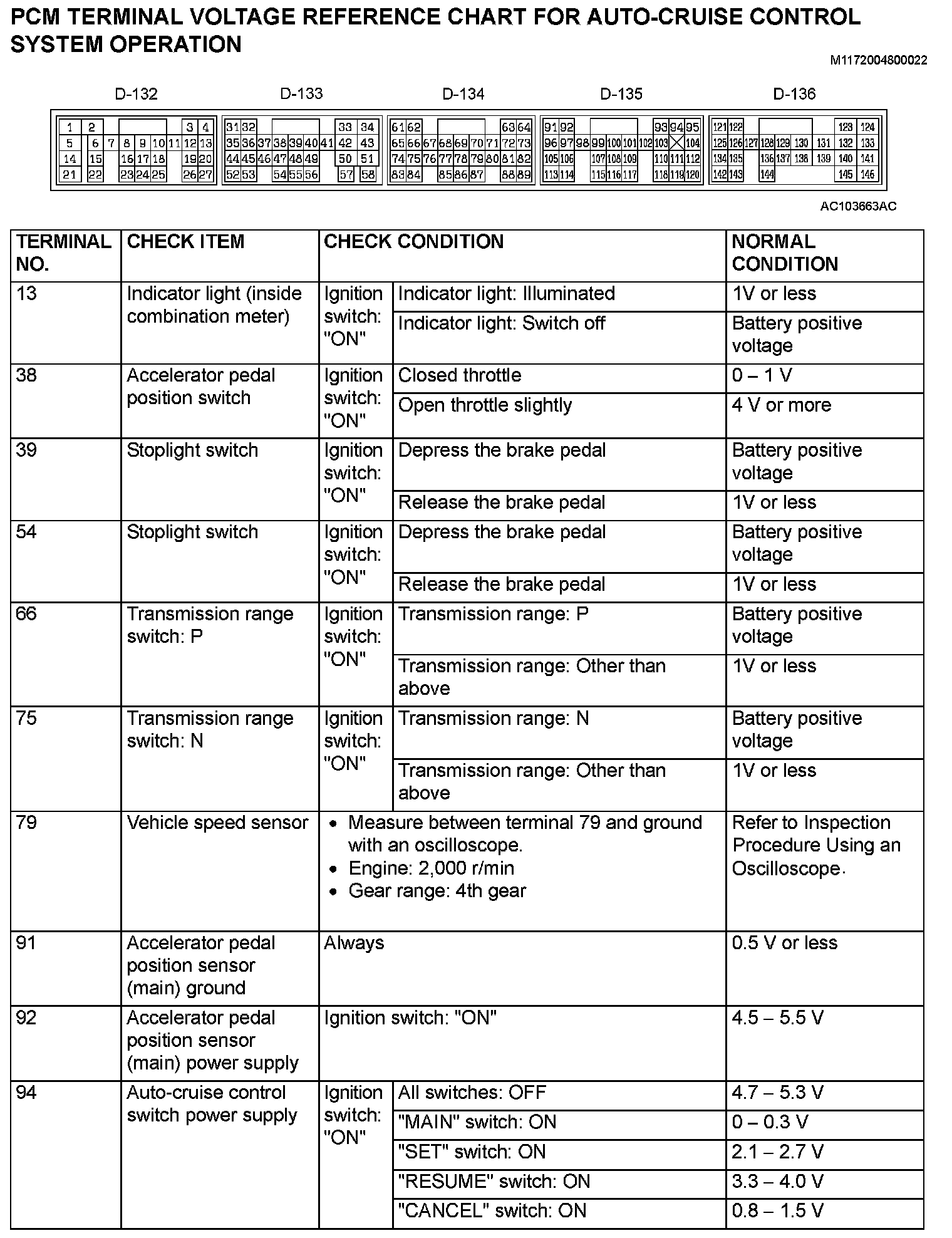

PCM Terminal Voltage Reference Chart - Part 1:

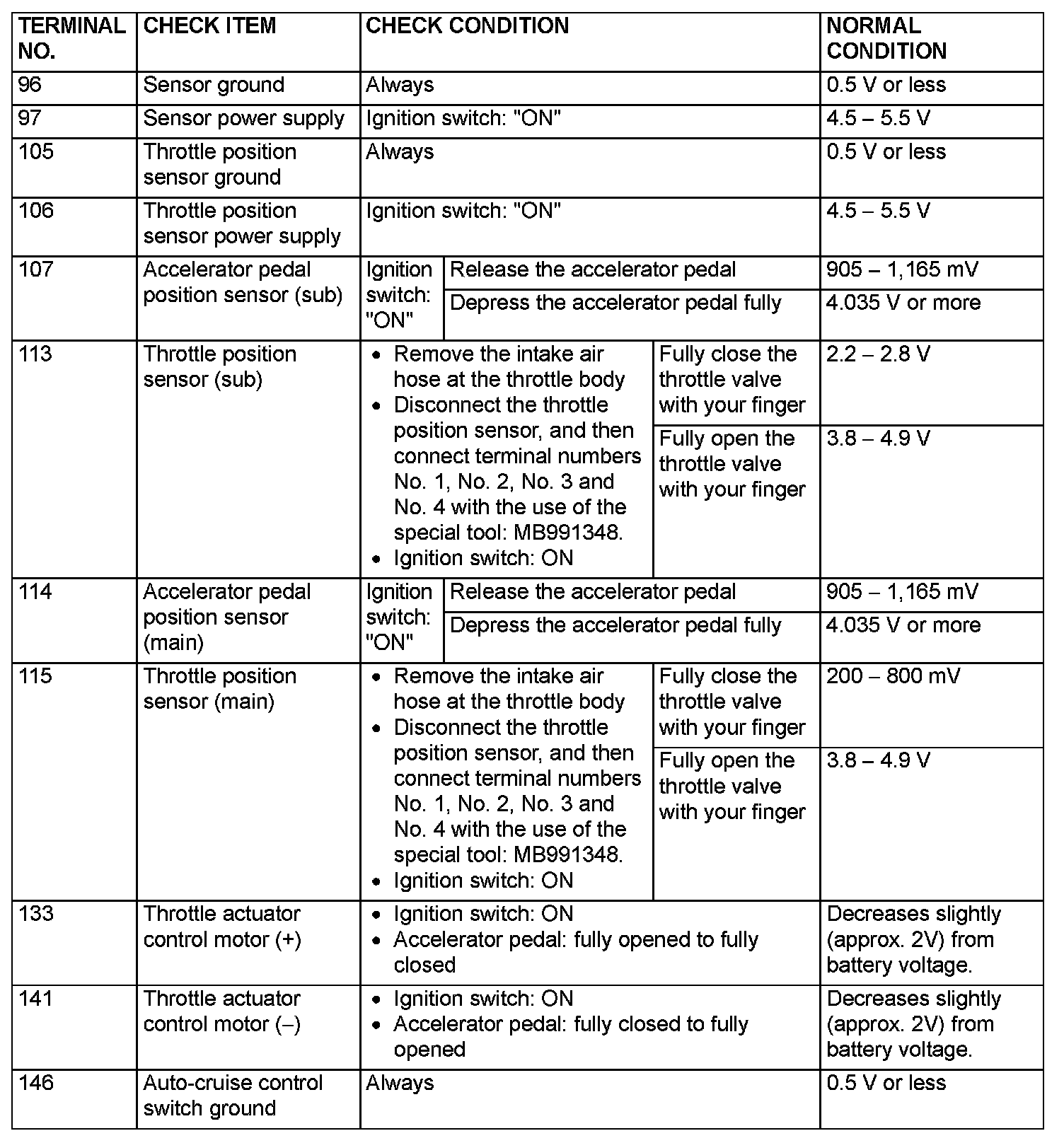

PCM Terminal Voltage Reference Chart - Part 2:
