Disassembly and Assembly

Part 1 Of 2:




Part 2 Of 2:

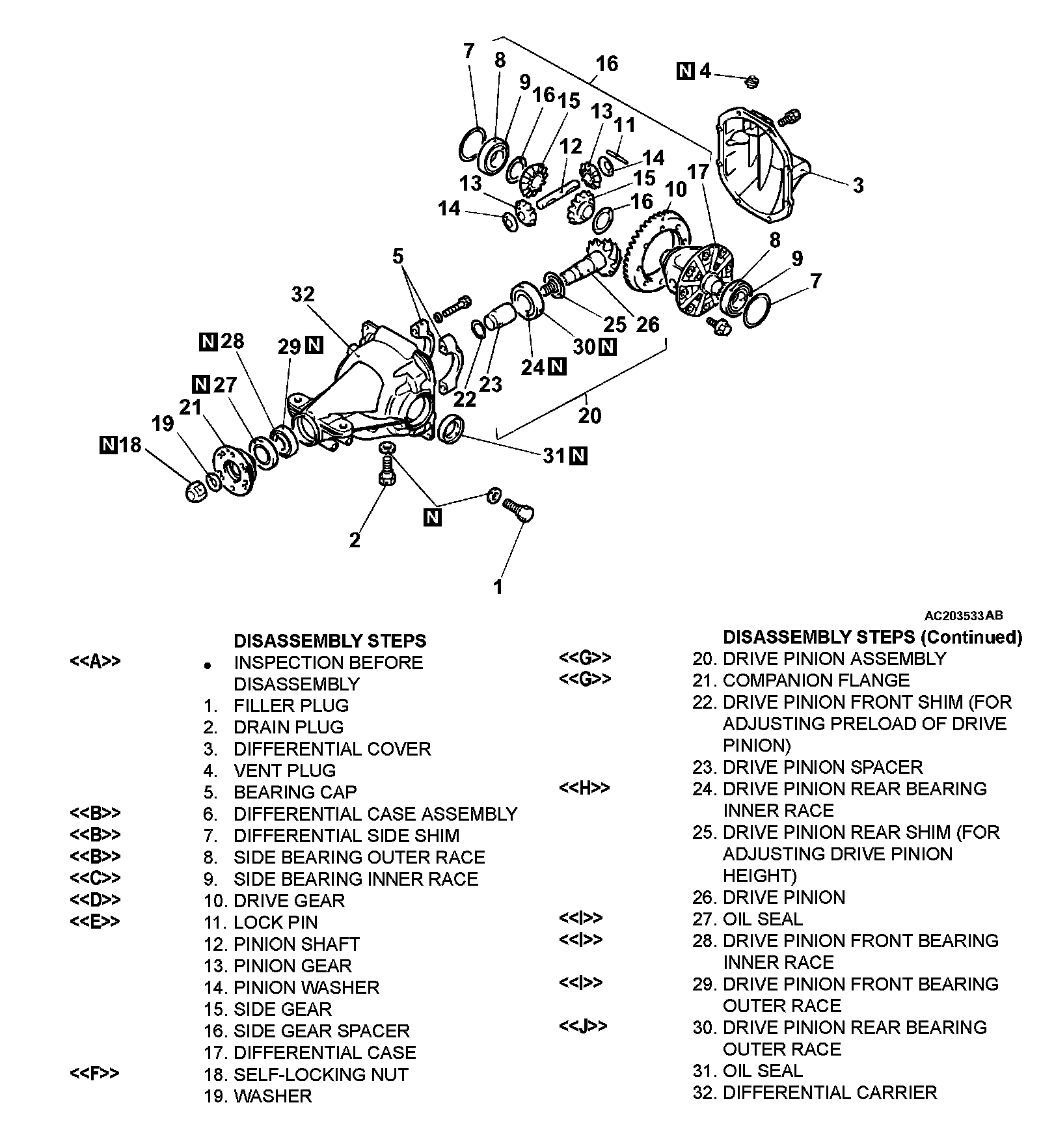

DIFFERENTIAL CARRIER ASSEMBLY DISASSEMBLY W/ RELATED COMPONENTS

Part 1 Of 2:




Part 2 Of 2:

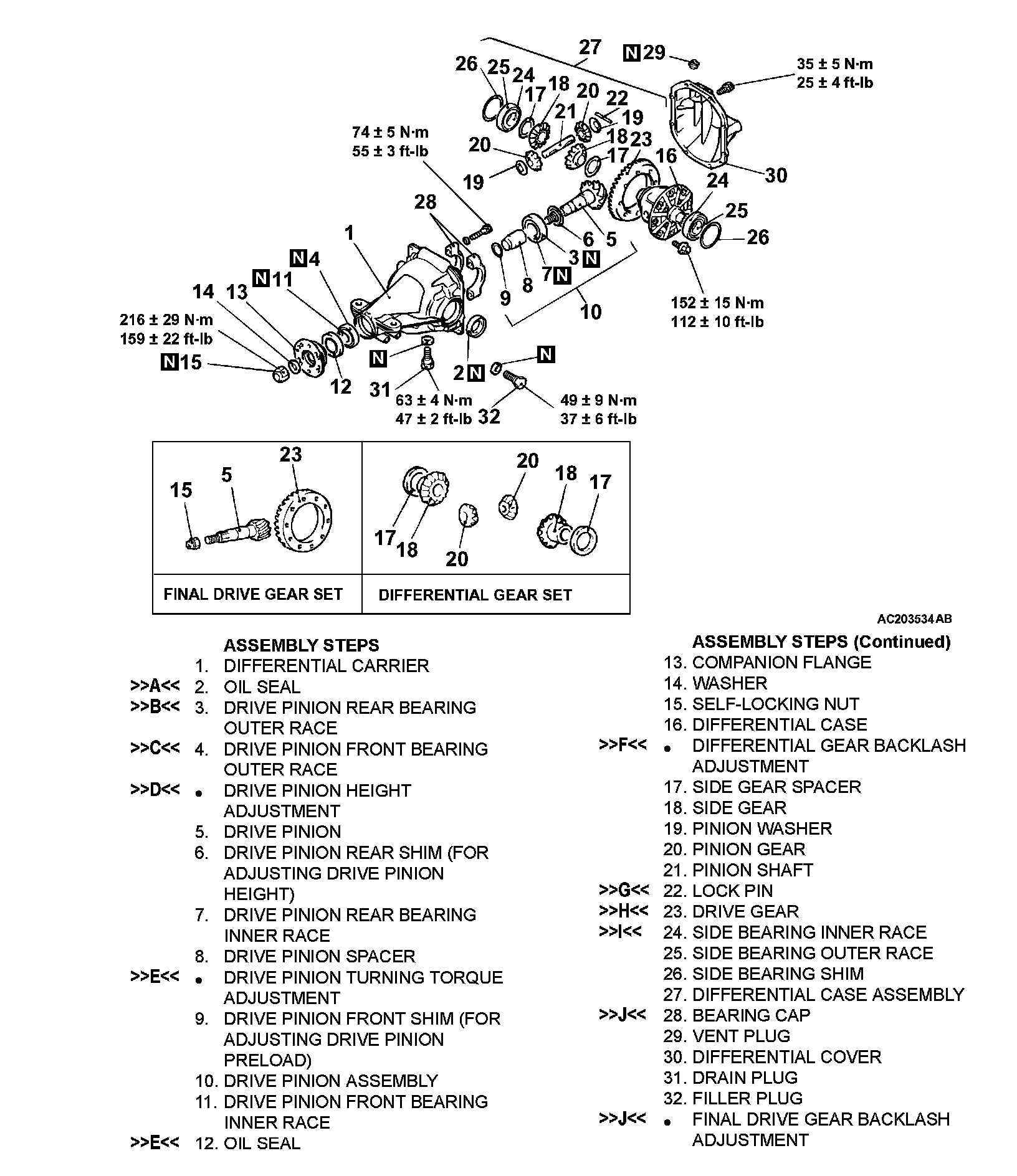

DIFFERENTIAL CARRIER ASSEMBLY ASSEMBLY W/ RELATED COMPONENTS
