Removal And Installation

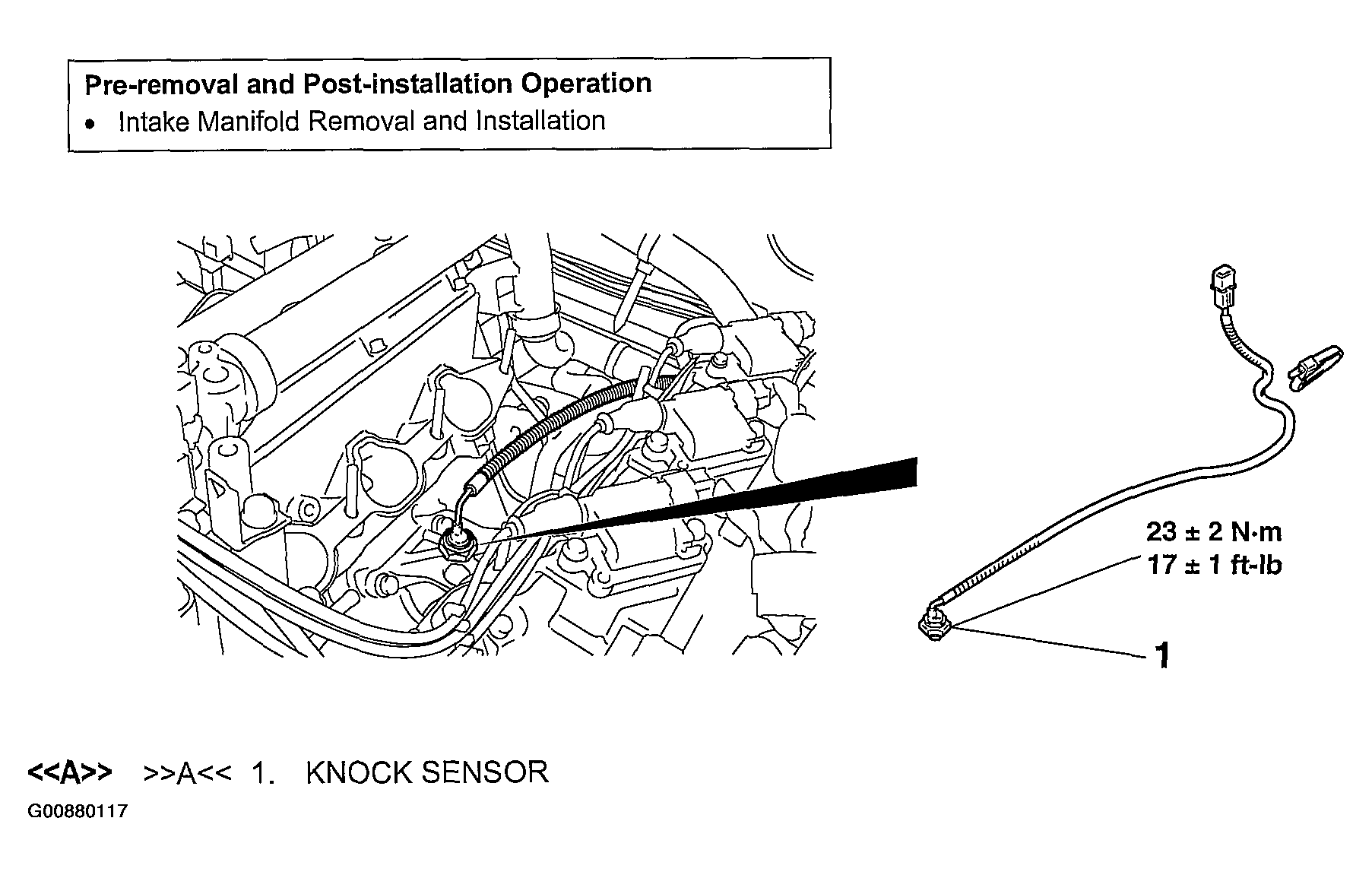

Fig 1: Exploded View Of Knock Sensor Components
G00880117Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MD998773: Knock Sensor Wrench
