CAN Bus Communication Circuit

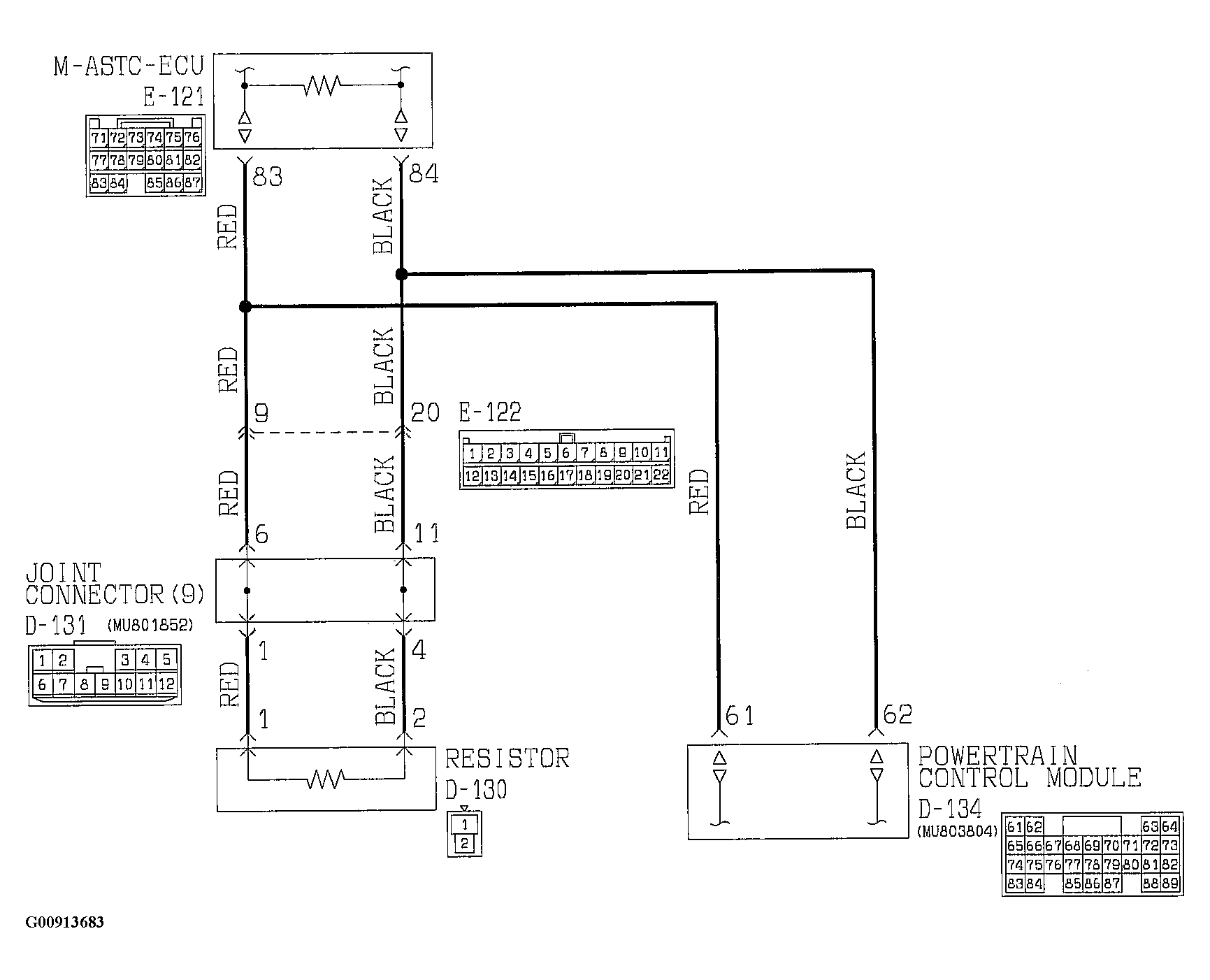

Fig 1: CAN Bus Communication Circuit (Powertrain Control Module)
G00913683Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
