Steering Wheel Sensor Communication Circuit

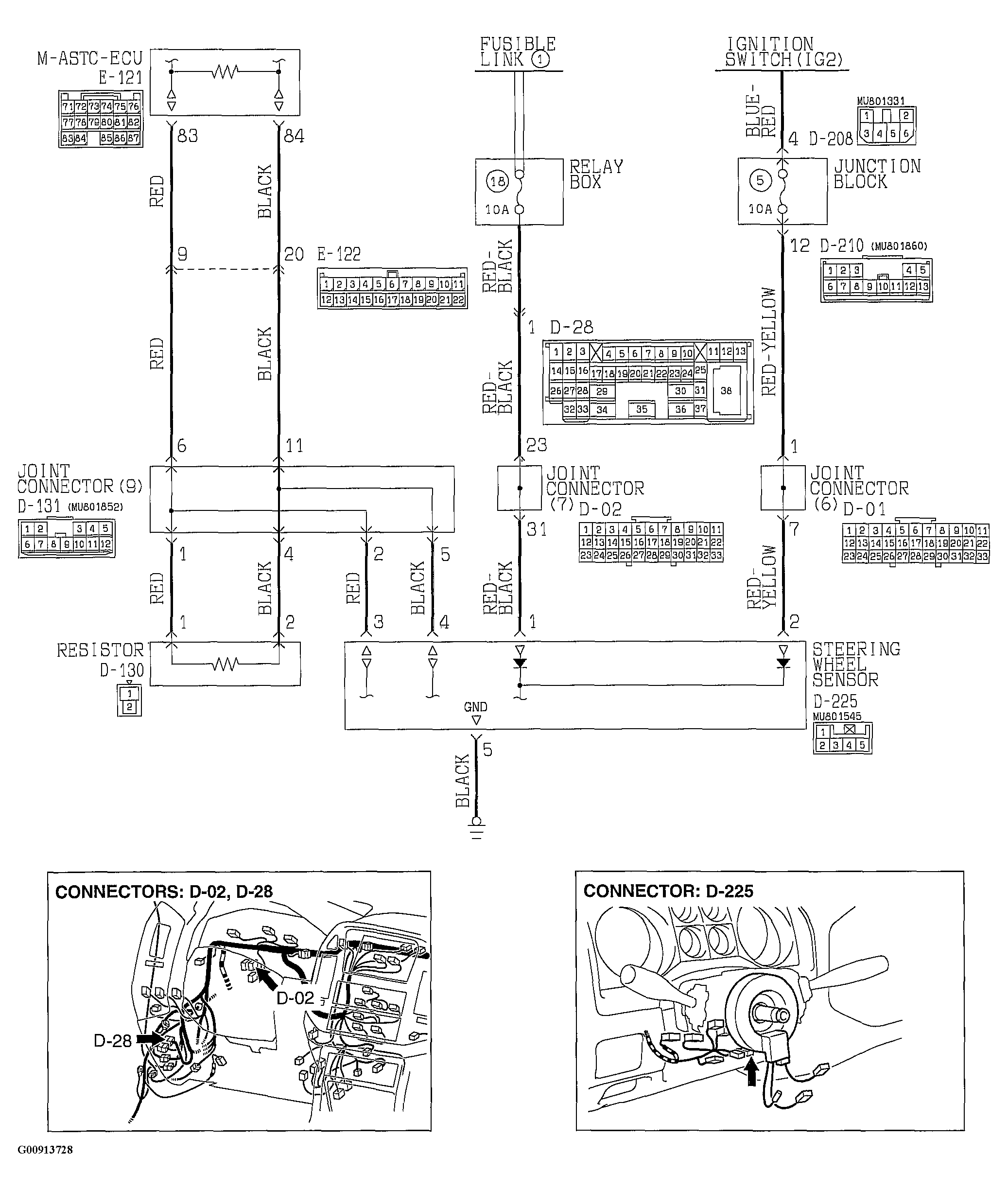

Fig 1: Steering Wheel Sensor Communication Circuit
G00913728Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

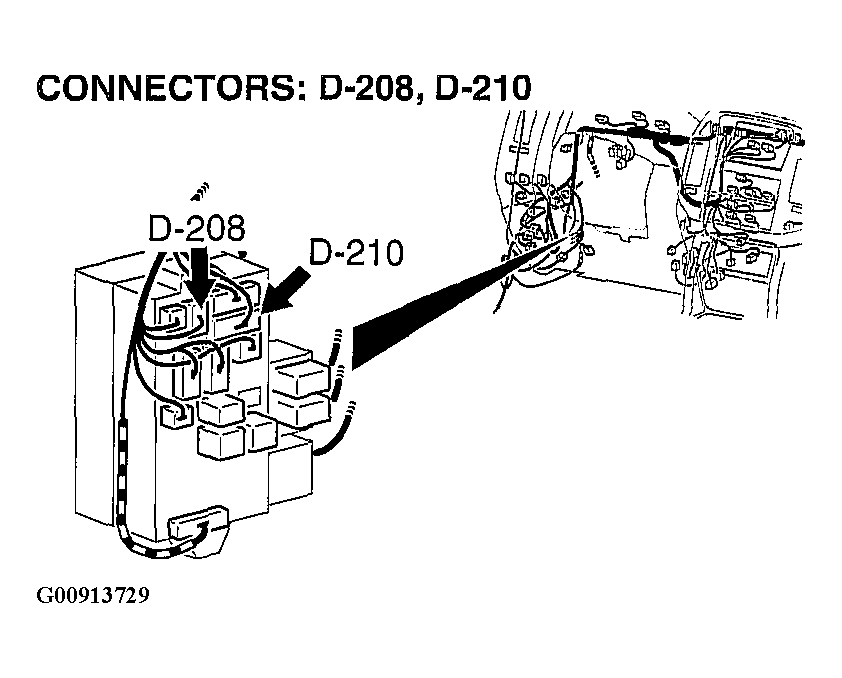

Fig 2: Identifying Connectors
G00913729Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
