INSPECTION PROCEDURE 4: The Active skid control system OFF indicator light remains illuminated after the engine is started.: Notes

Active Skid Control System OFF Indicator Light Circuit

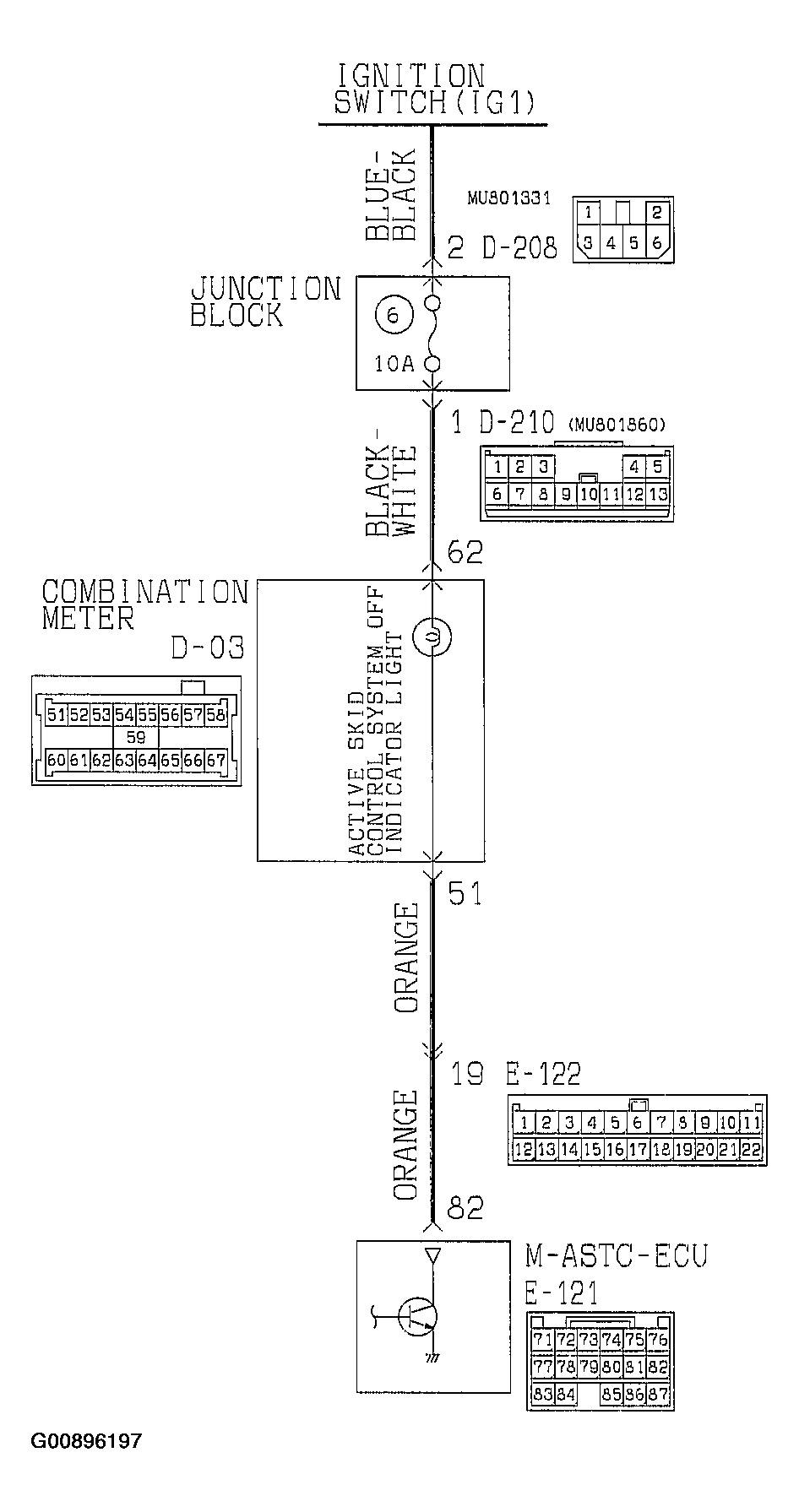

Fig 1: Active Skid Control System Off Indicator Light Circuit
G00896197Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

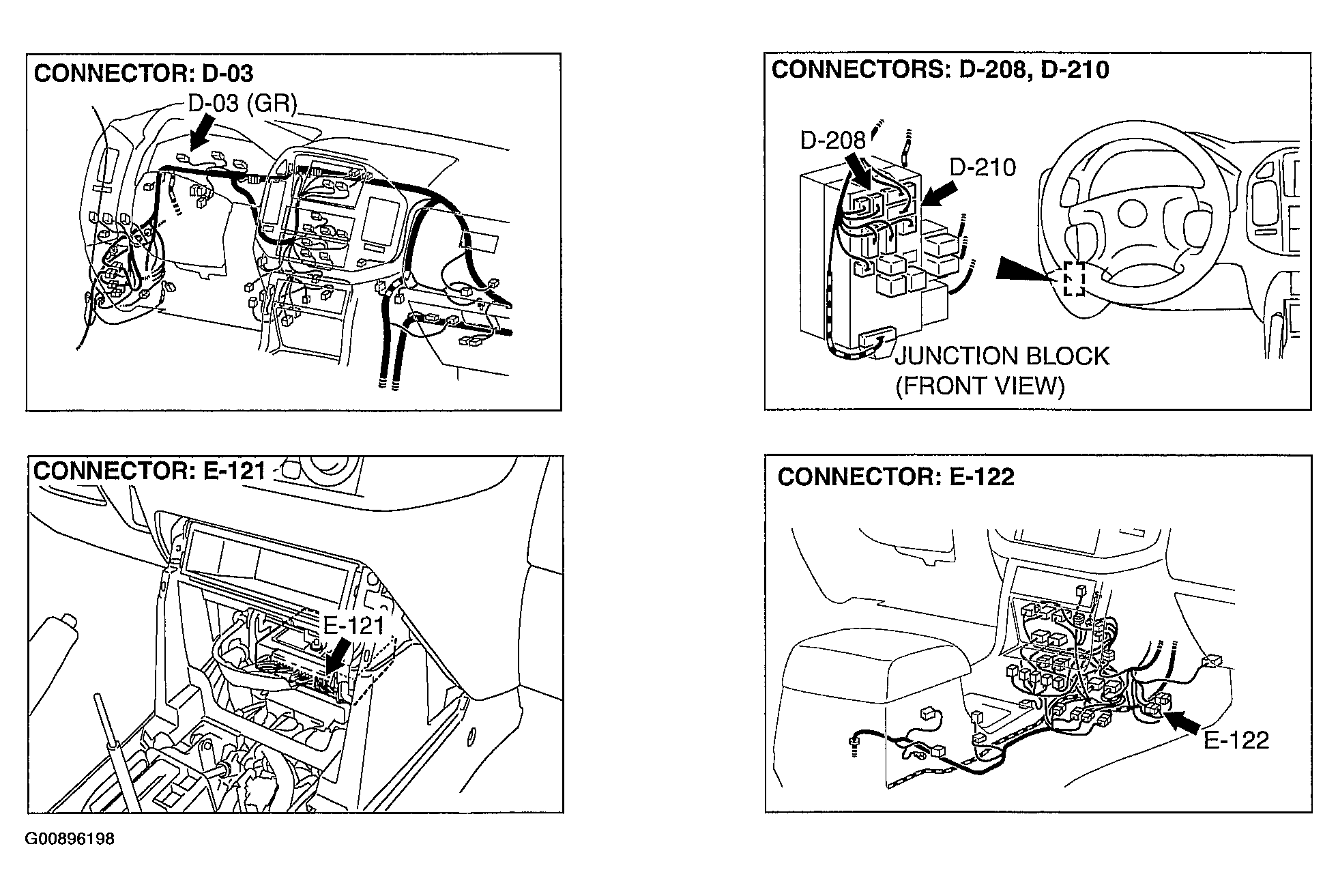

Fig 2: Identifying Connectors
G00896198Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
